Removal and Installation - VK56VD: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal. Refer to Battery Disconnect .
  2. Remove the drive belt. Refer to Removal and Installation .
  3. Remove the front wheel and tire (RH) using power tool. Refer to Adjustment .
  4. Rotate steering wheel to full RH stop.
  5. Remove the front fender protector (RH). Refer to Removal and Installation .
  6. Remove terminal nut (2) and harness cable from back of generator.
    GNSALMIA1018Z-018Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove terminal bolt (1) and generator ground wire from back of generator. Move harness aside.
  8. Disconnect harness connector from bottom of generator.
  9. Remove bolts from the generator front bracket.
  10. Remove the bolt from the generator rear bracket.
  11. Remove generator.
    NOTE: To remove the generator rear bracket, the power steering oil pump must be repositioned first.

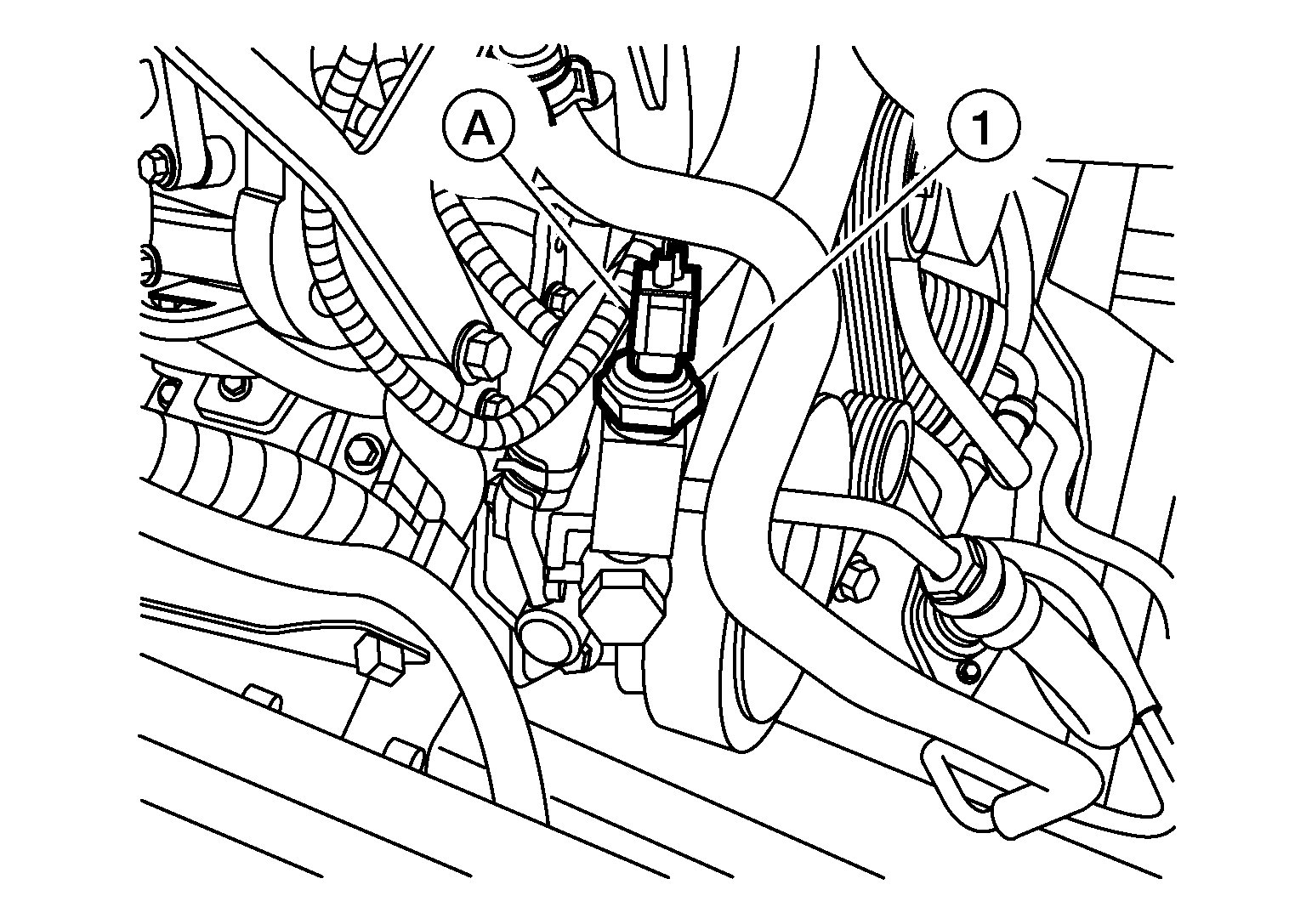

  12. Disconnect the harness connector (A) from the power steering pressure switch (1).
    GNSALGIA0297Z-297Courtesy of NISSAN NORTH AMERICA, INC.
  13. Remove bolts and power steering oil pump and position aside.
    NOTE: It is not necessary to disconnect the power steering oil pump lines.

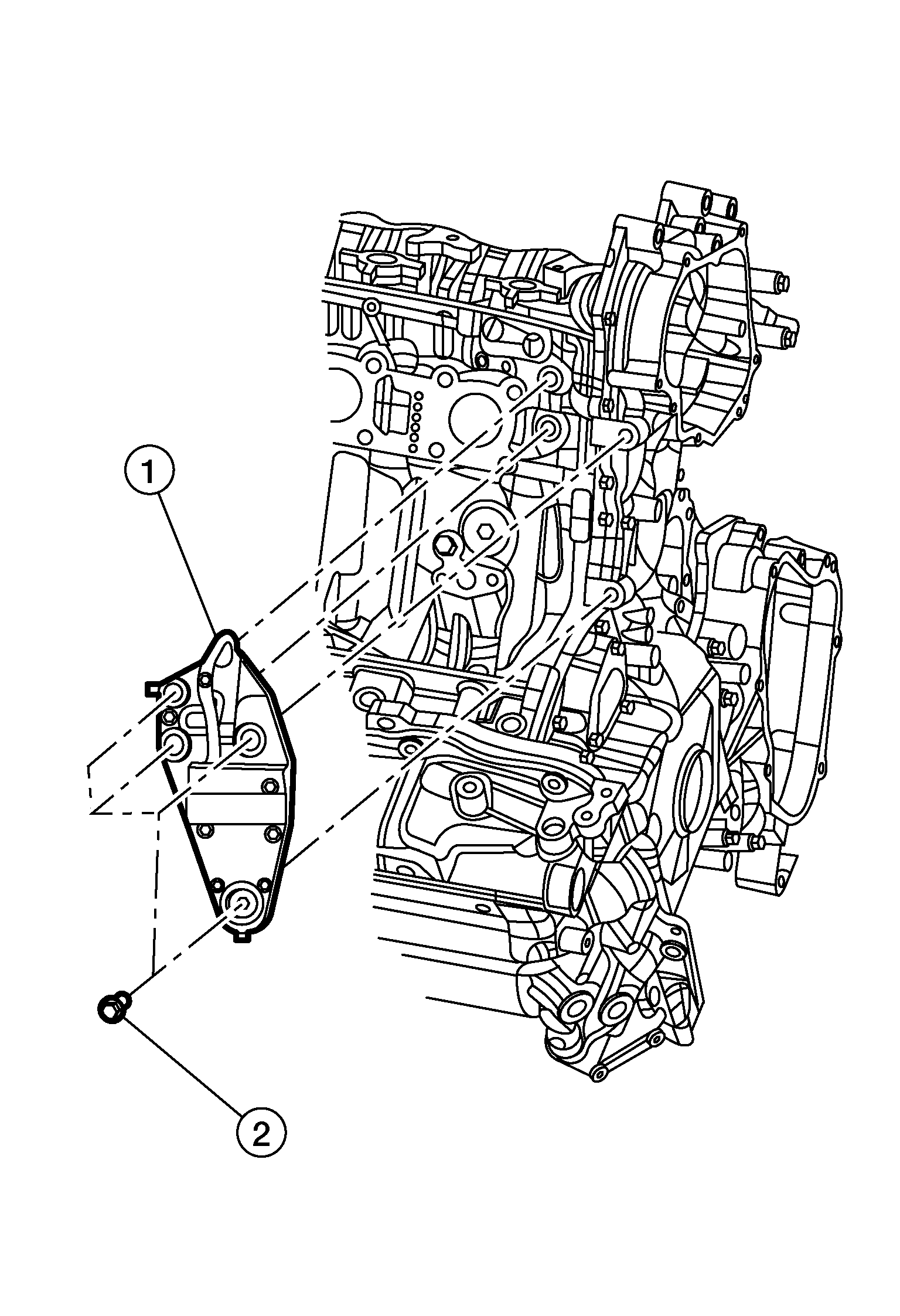

  14. Remove bolts (2) and generator rear bracket (1).
