Removal and Installation - VK56VD: Notes
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|

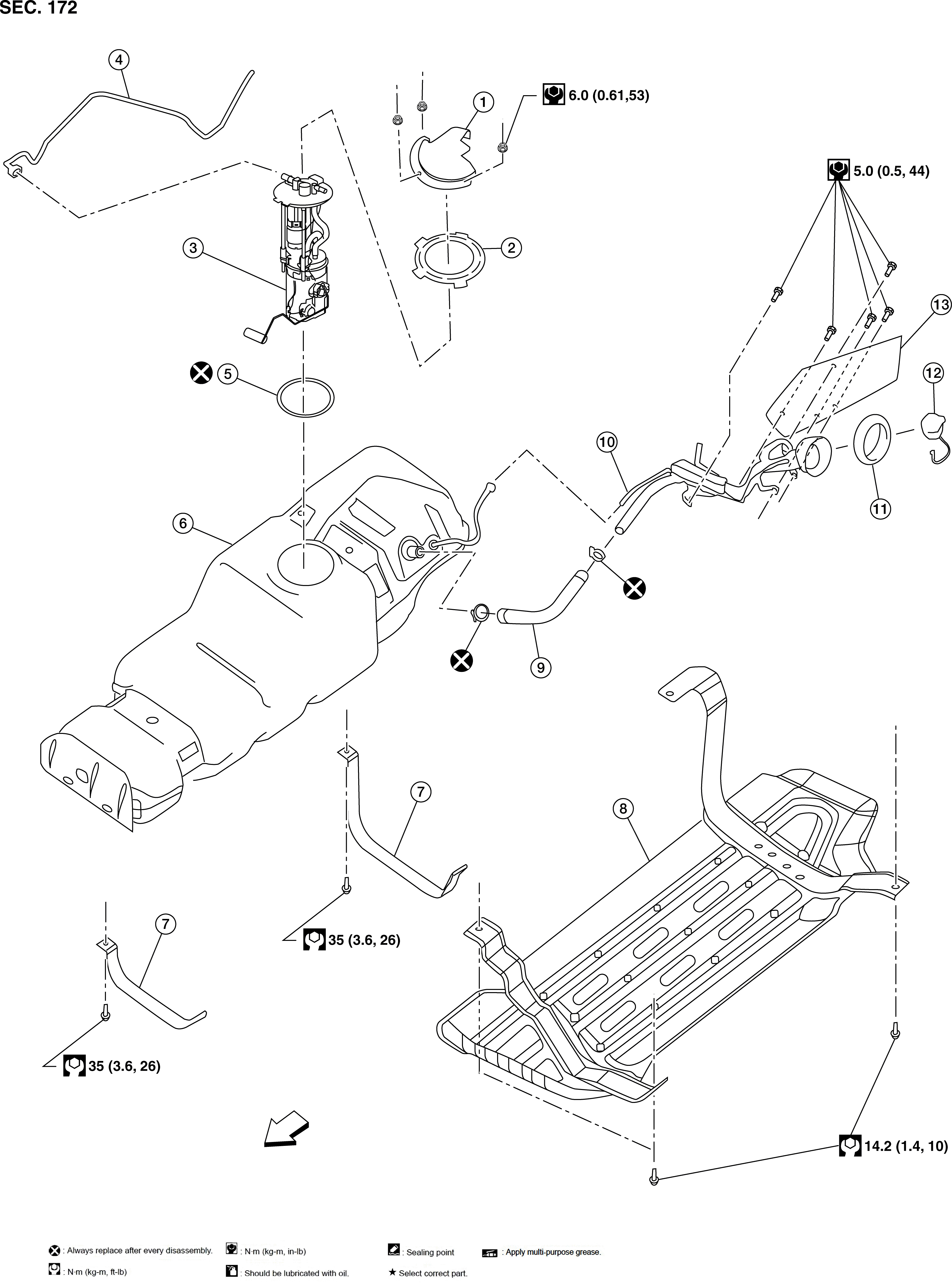

1. |
Fuel line pump protector |
2. |
Lock ring |
3. |
Fuel level sensor, fuel filter, and fuel pump assembly |
|
4. |
EVAP vent hose |
5. |
O-ring |
6. |
Fuel tank |
|
7. |
Fuel tank strap |
8. |
Fuel tank protector |
9. |
Fuel filler hose |
|
10. |
Fuel filler pipe |
11. |
Fuel filler hose grommet |
12. |
Fuel Filler cap |
|
13. |
Fuel filler protector |
|
Front |
