Removal and Installation - VK56VD: Installation

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Connect the quick connector as follows:

Check the connection for any damage or foreign materials.
Align the connector with the pipe, then insert the connector straight into the pipe until a click is heard.

After connecting the quick connector, make sure that the connection is secure by checking as follows:

Courtesy of NISSAN NORTH AMERICA, INC.

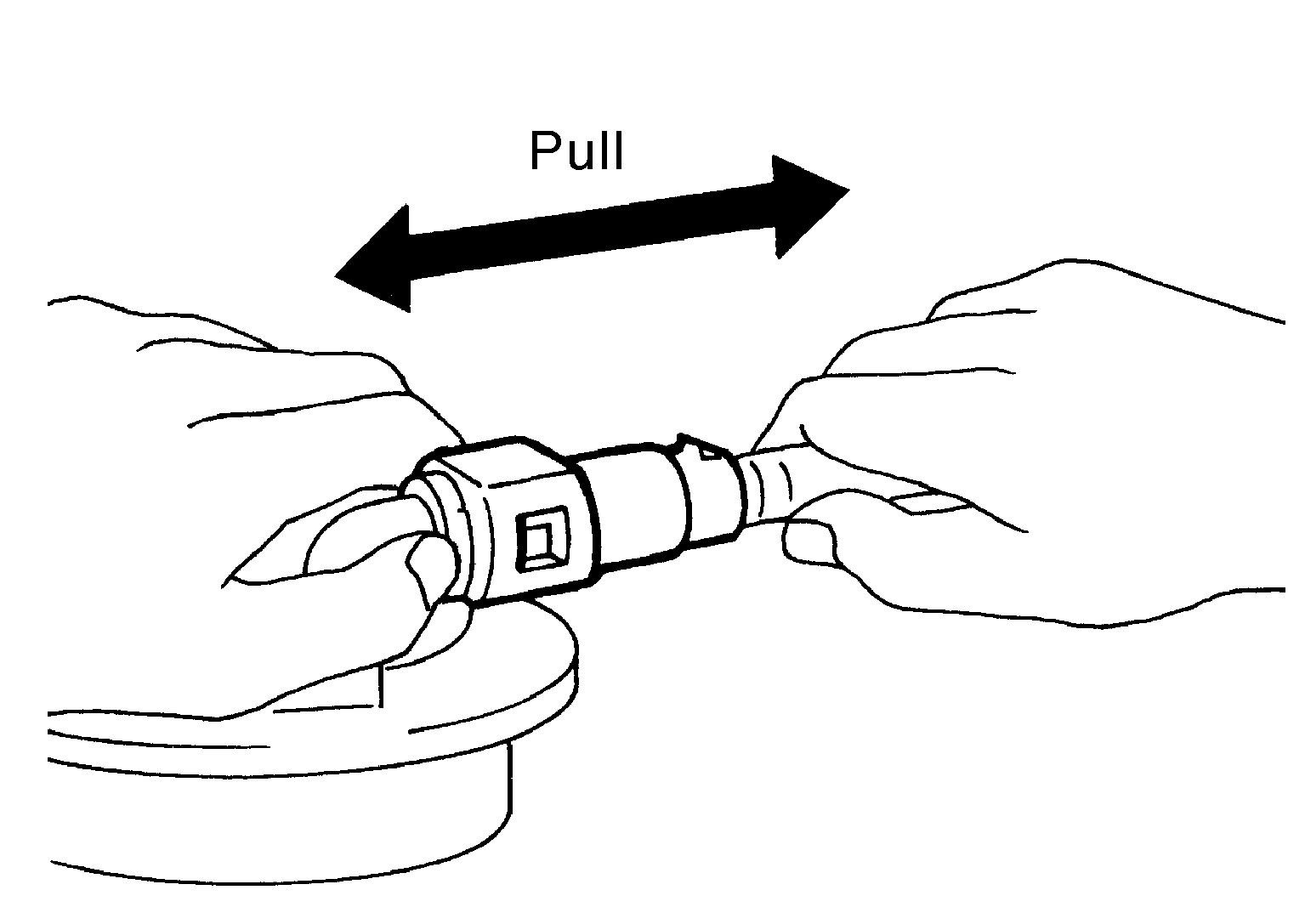

Pull the tube and the connector to make sure they are securely connected.
Visually inspect the connector to make sure the two retainer tabs are securely connected.
