Component Inspection: Notes

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

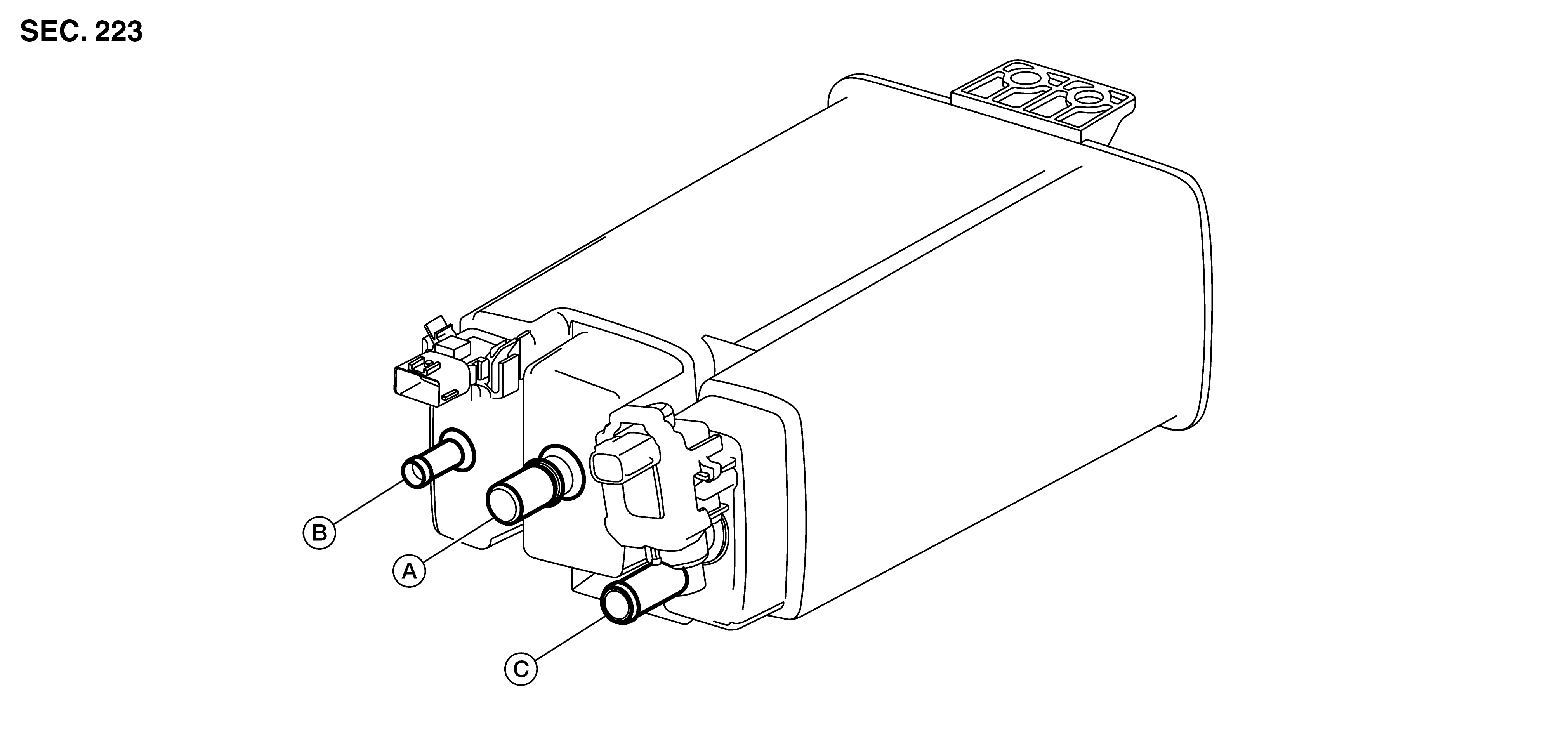

GNSDB122414Courtesy of NISSAN NORTH AMERICA, INC.

A.

EVAP vent line port

B.

EVAP canister purge port

C.

EVAP canister vent control valve port
