Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the harness connector from the EVAP canister vent control valve.
  2. Disconnect the EVAP canister vent control valve hose.
  3. Release the locking tab (A) and turn EVAP canister vent control valve counterclockwise.

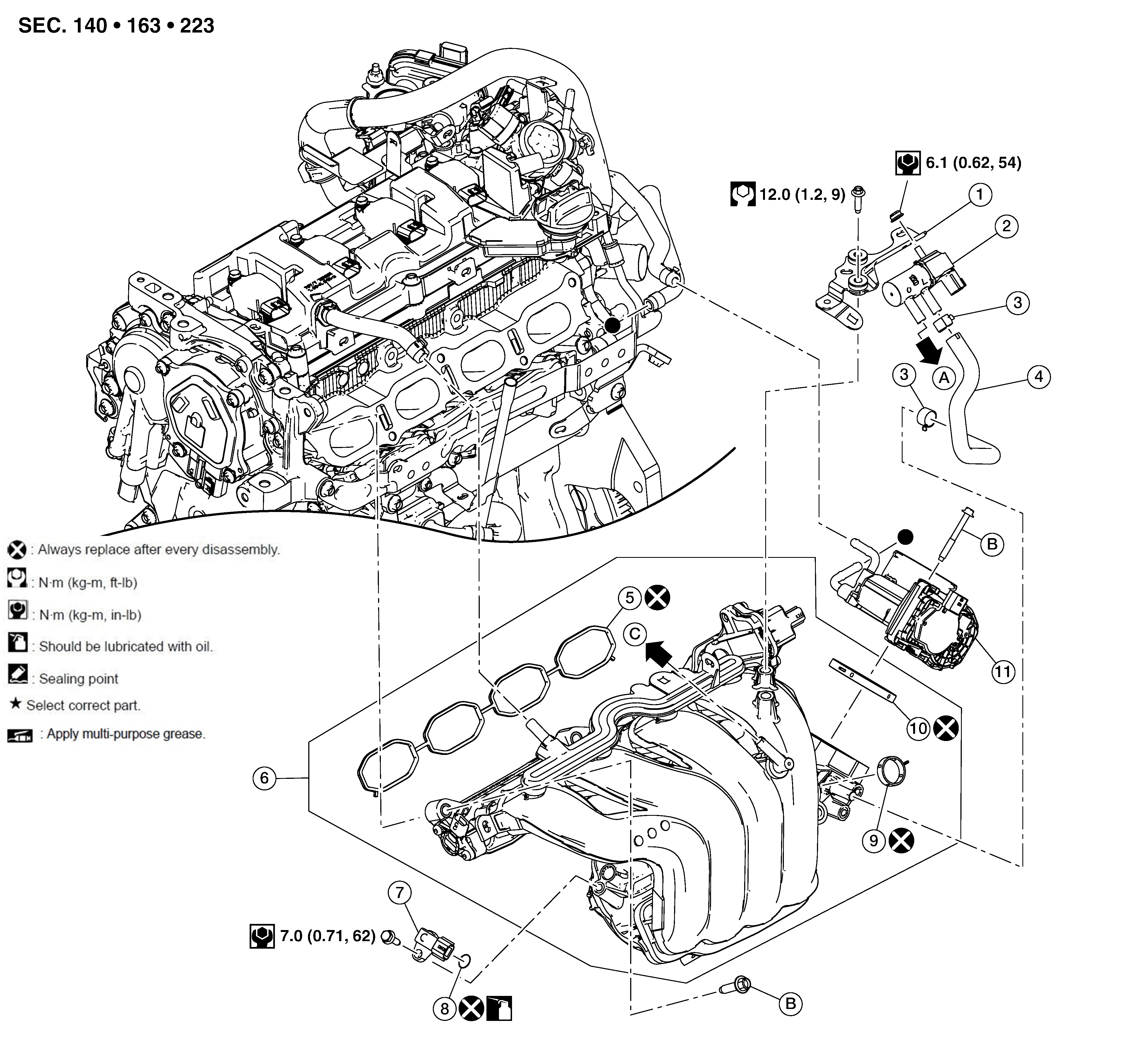

    GNSALBIA0703Z-703Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the EVAP canister vent control valve and O-ring.
