Removal and Installation: Removal
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

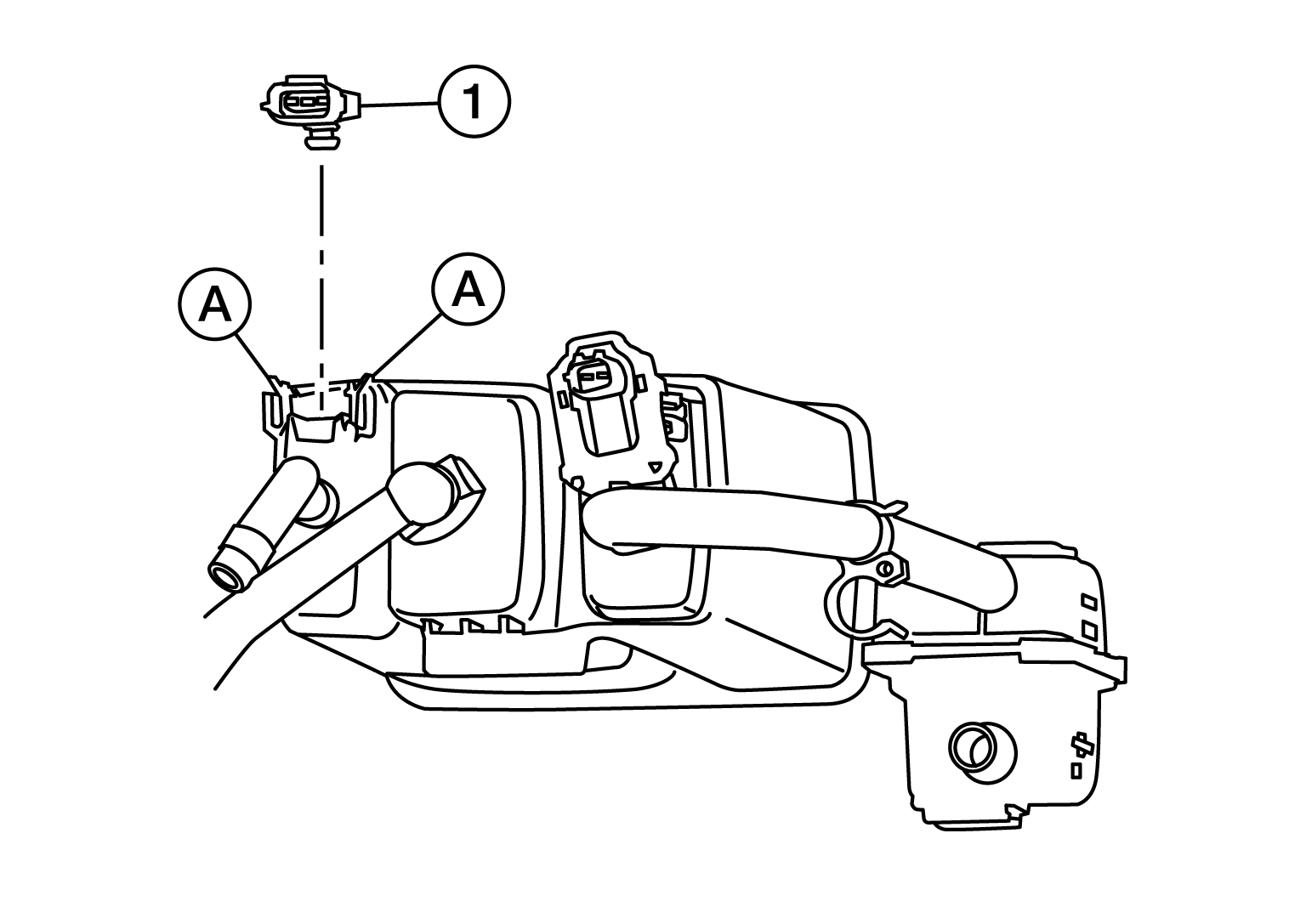

- Disconnect the harness connector (A) from the EVAP canister control pressure sensor.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Release the locking tabs (A) and remove the EVAP canister control pressure sensor (1).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
