Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.

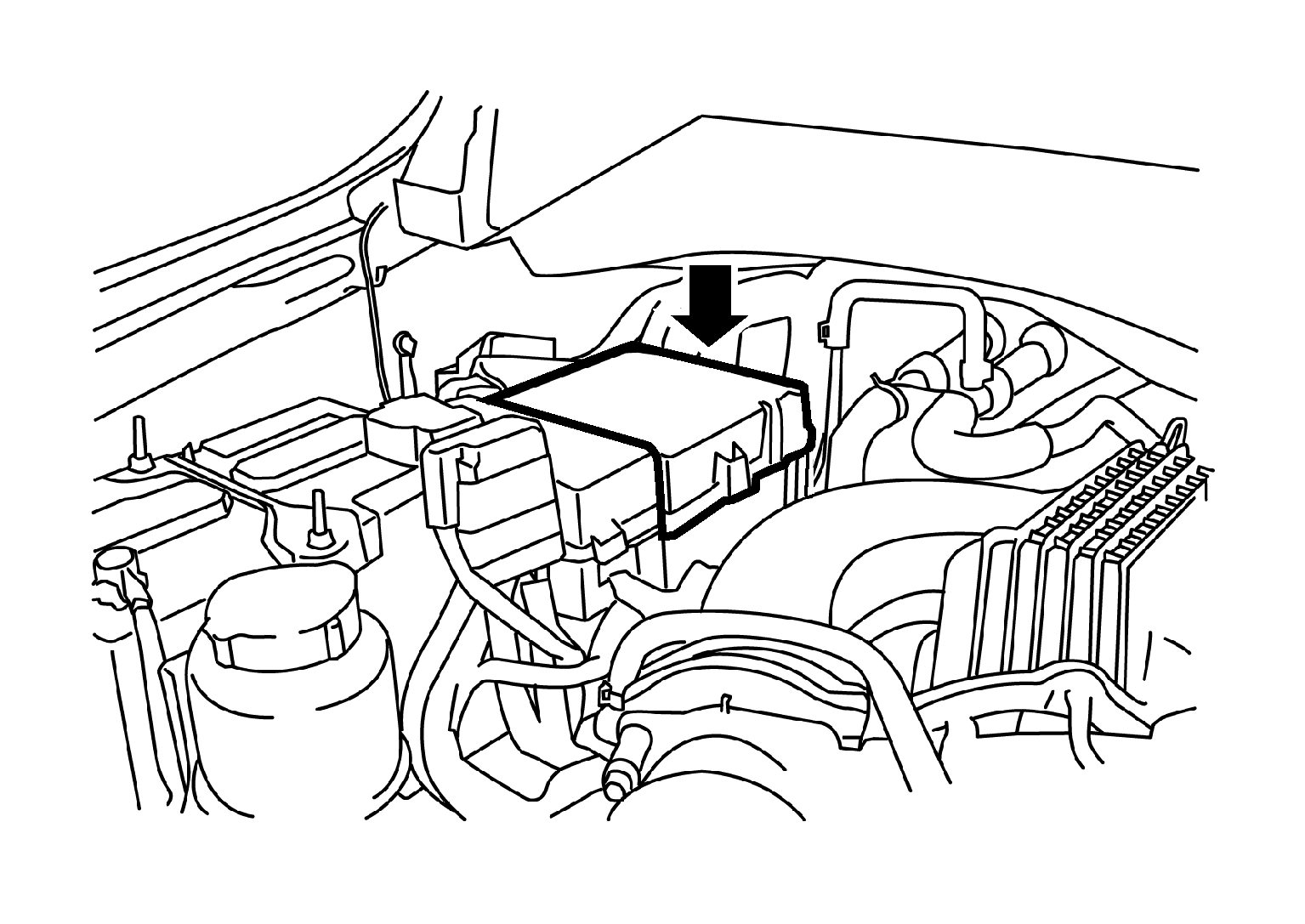

  2. Remove the IPDM E/R upper cover.
    G08160731Courtesy of NISSAN NORTH AMERICA, INC.

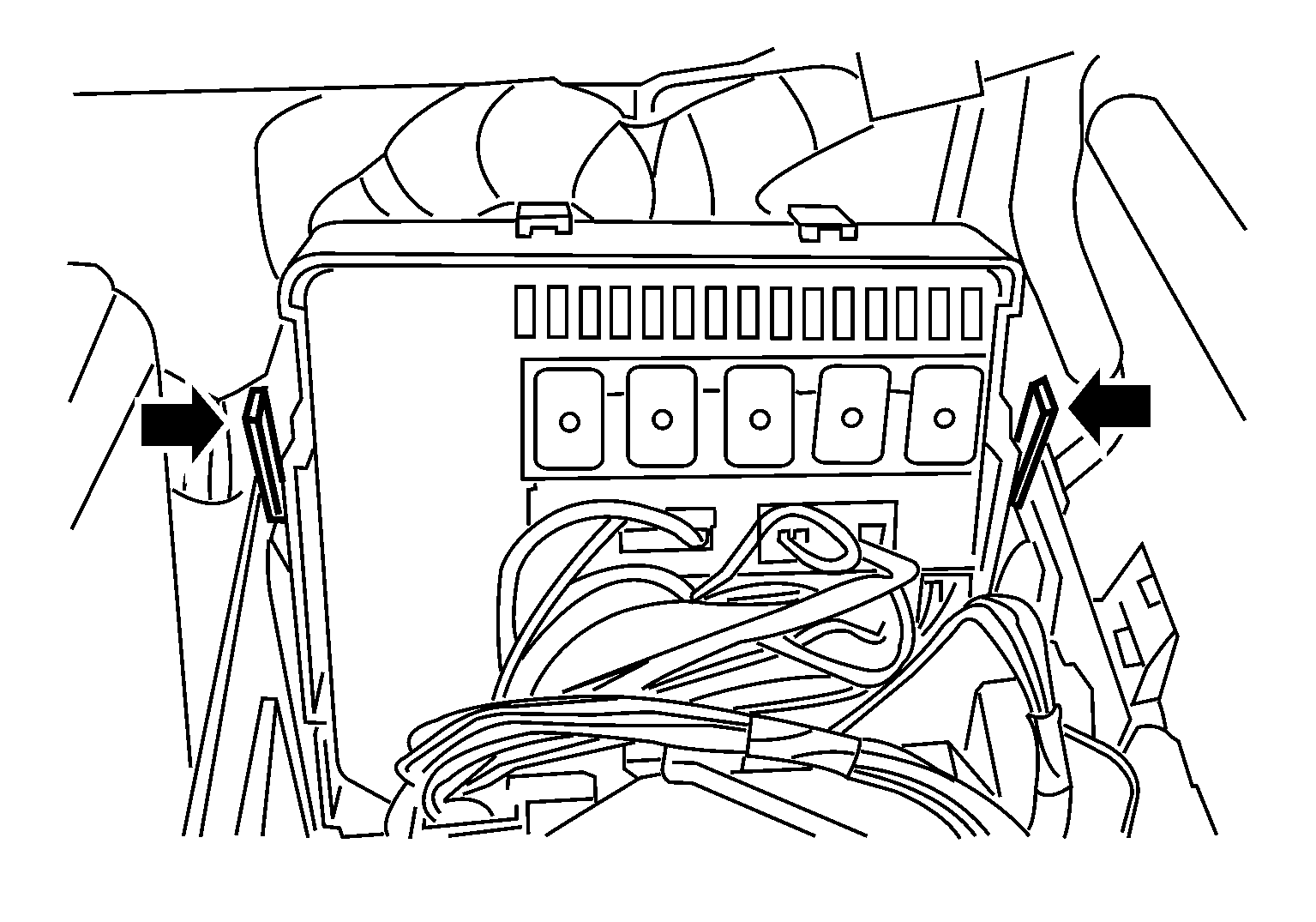

  3. Release the two clips and pull the IPDM E/R up from the case.
    G04137208Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the harness connectors from the IPDM E/R and remove.
