System Diagram

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

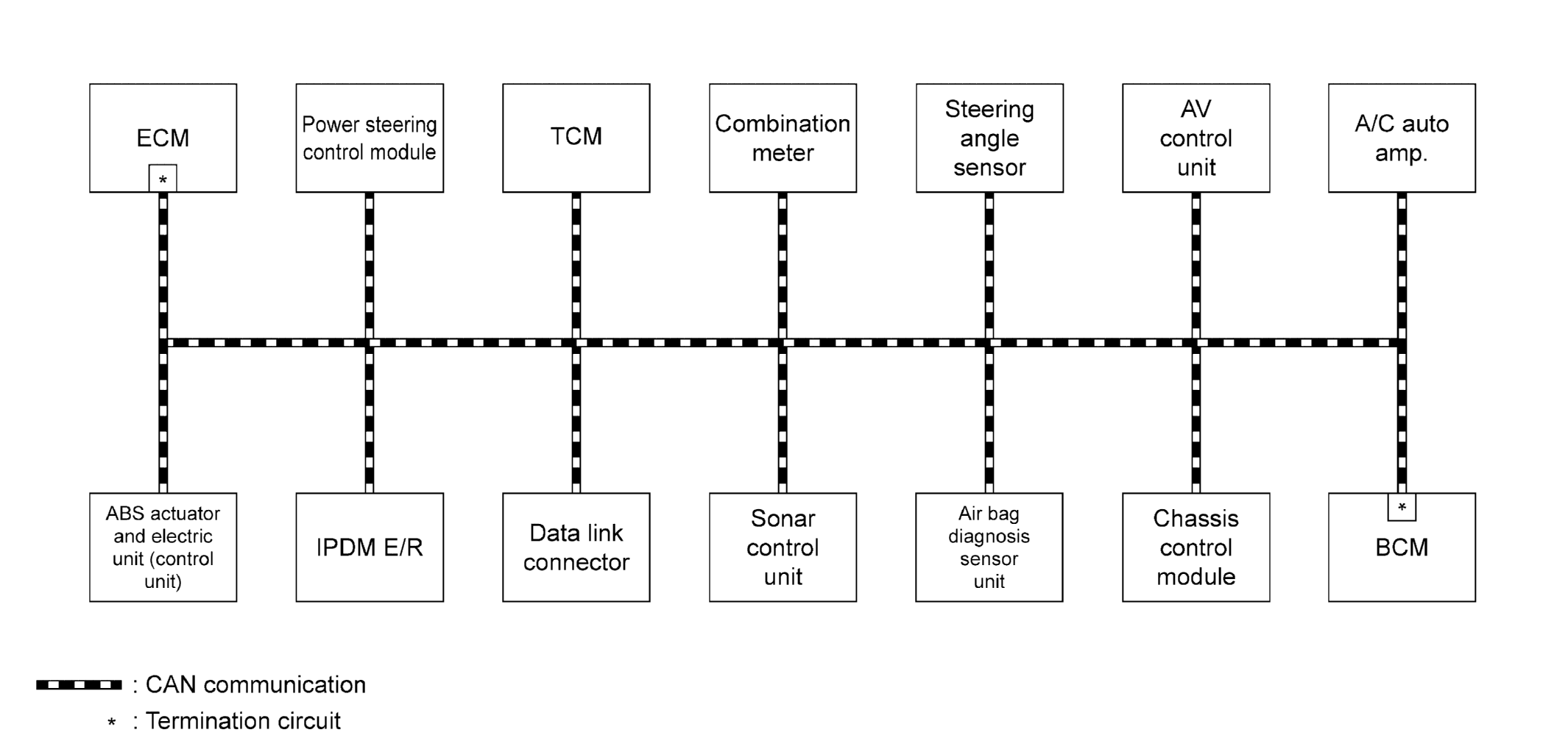

Without ICC

GNSJSMIA2252GB-252Courtesy of NISSAN NORTH AMERICA, INC.

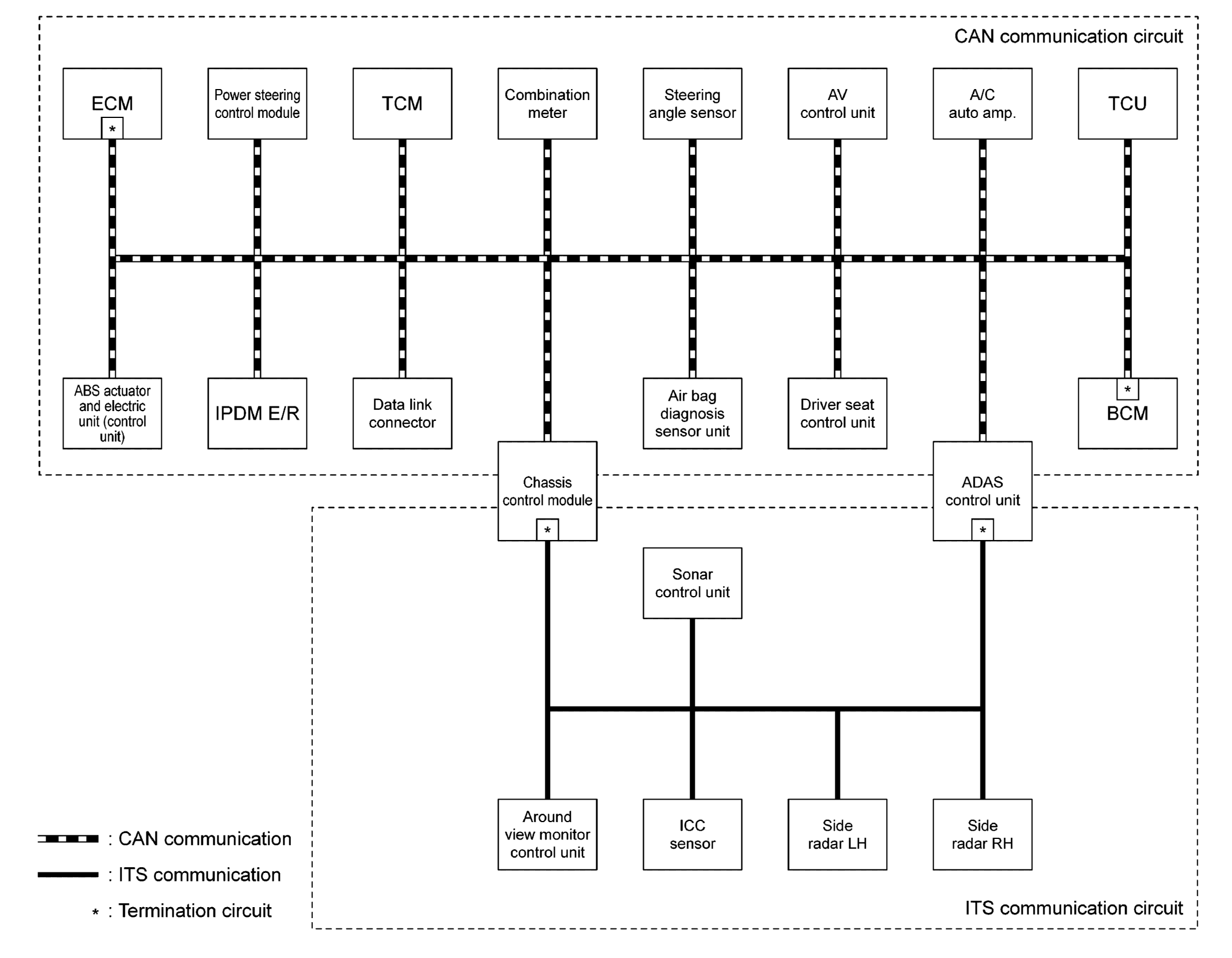

With ICC

GNSJSMIA2253GB-253Courtesy of NISSAN NORTH AMERICA, INC.
