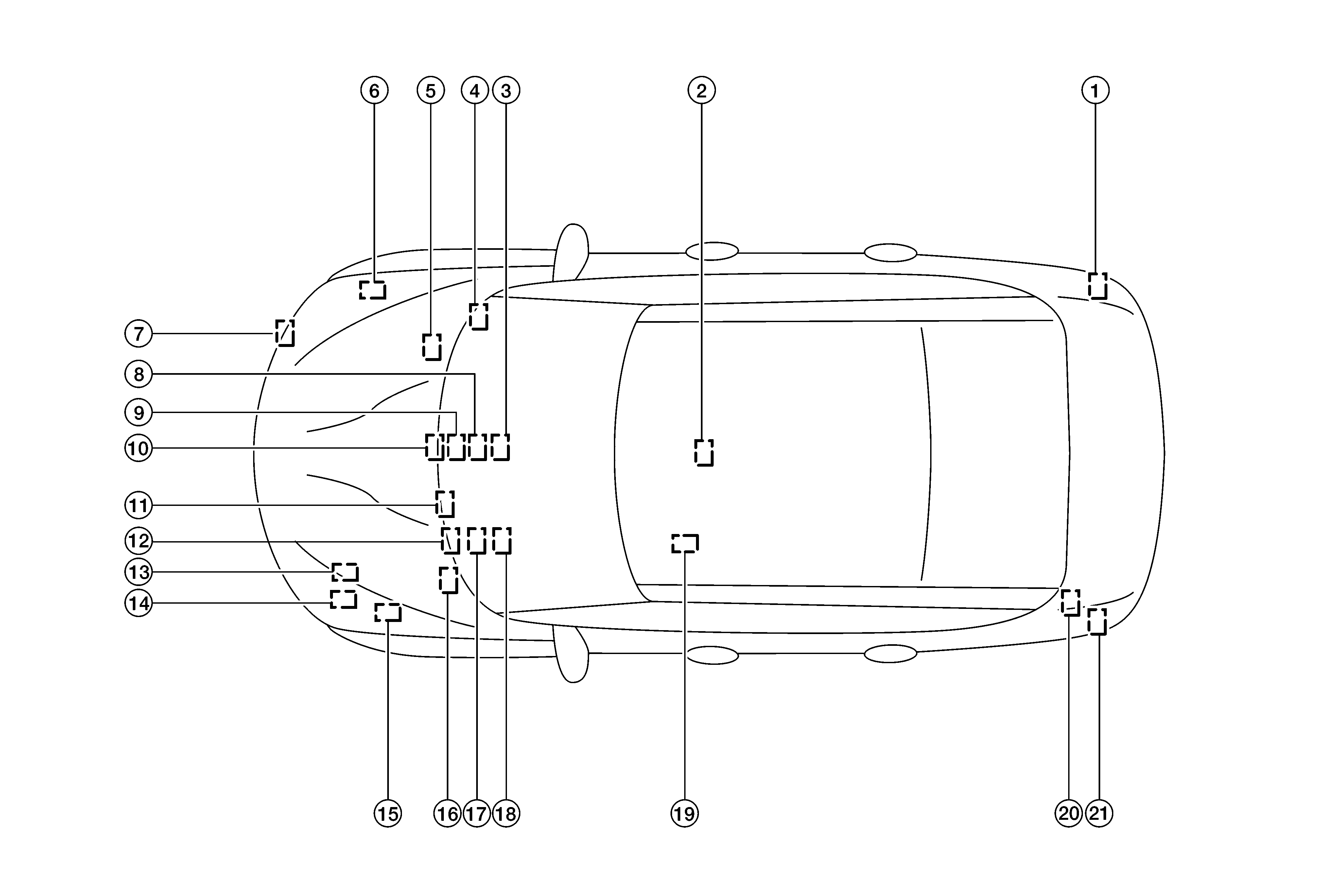

Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Side radar RH |
|
Air bag diagnosis sensor unit |
|
AV control unit |
|
|
Chassis control module |
|
ABS actuator and electric unit (control unit) |
|
Power steering control module |
|
|
ICC sensor |
|
A/C auto amp. |
|
TCU |
|
|
Around view monitor control unit |
|
Sonar control unit |
|
BCM |
|
|
TCM |
|
ECM |
|
IPDM E/R |
|
|
Data link connector |
|
Combination meter |
|
Steering angle sensor |
|
|
Driver seat control unit |
|
ADAS control unit |
|
Side radar LH |
