Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the A/T shift selector to the (N) position and release the parking brake.

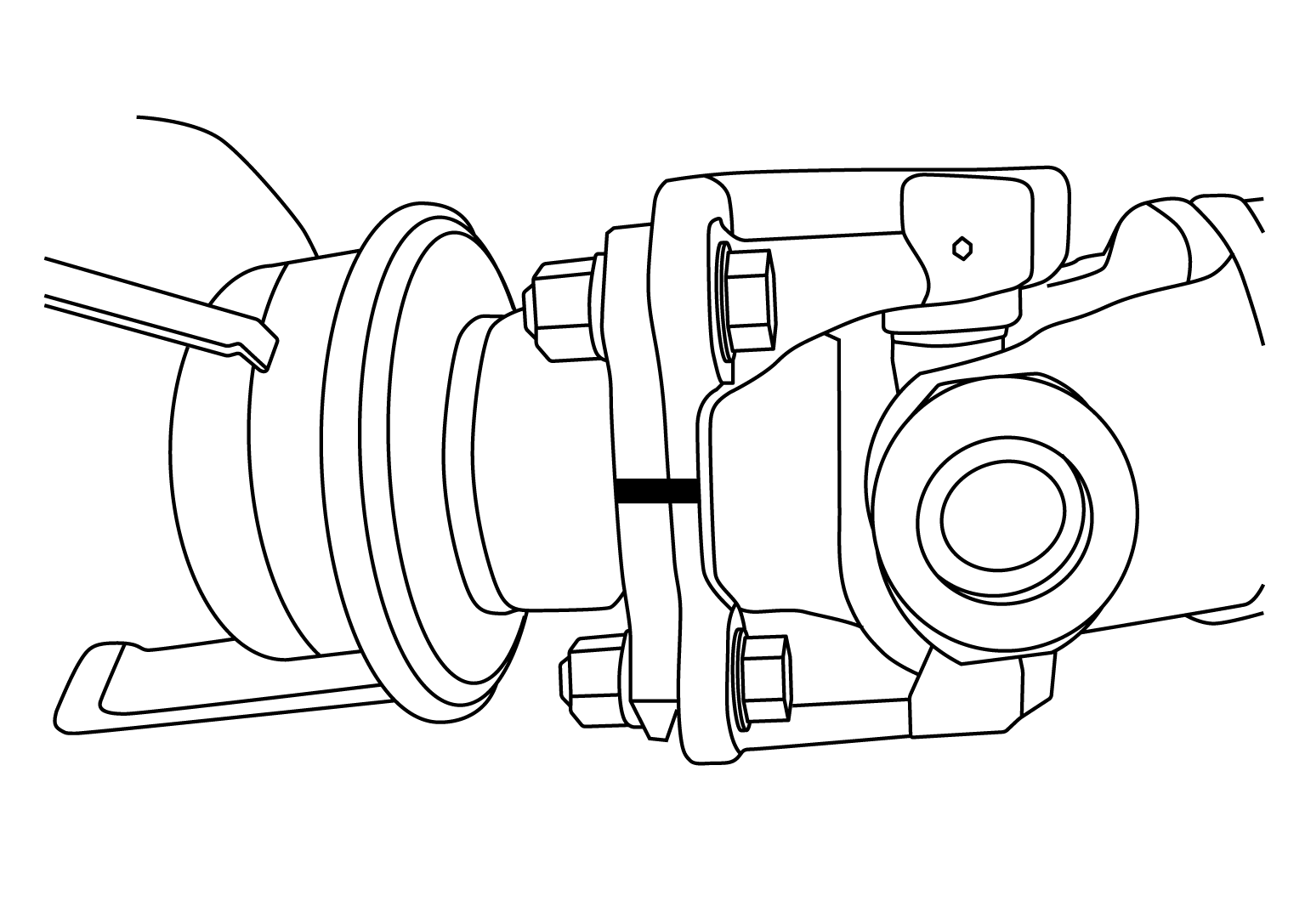

  2. Put matching marks on the rear propeller shaft flange yoke and the companion flange of the rear final drive as shown, below.
    GNSALDIA0233Z-233Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: For matching marks, use paint. Do not damage the rear propeller shaft flange yoke or the companion flange.

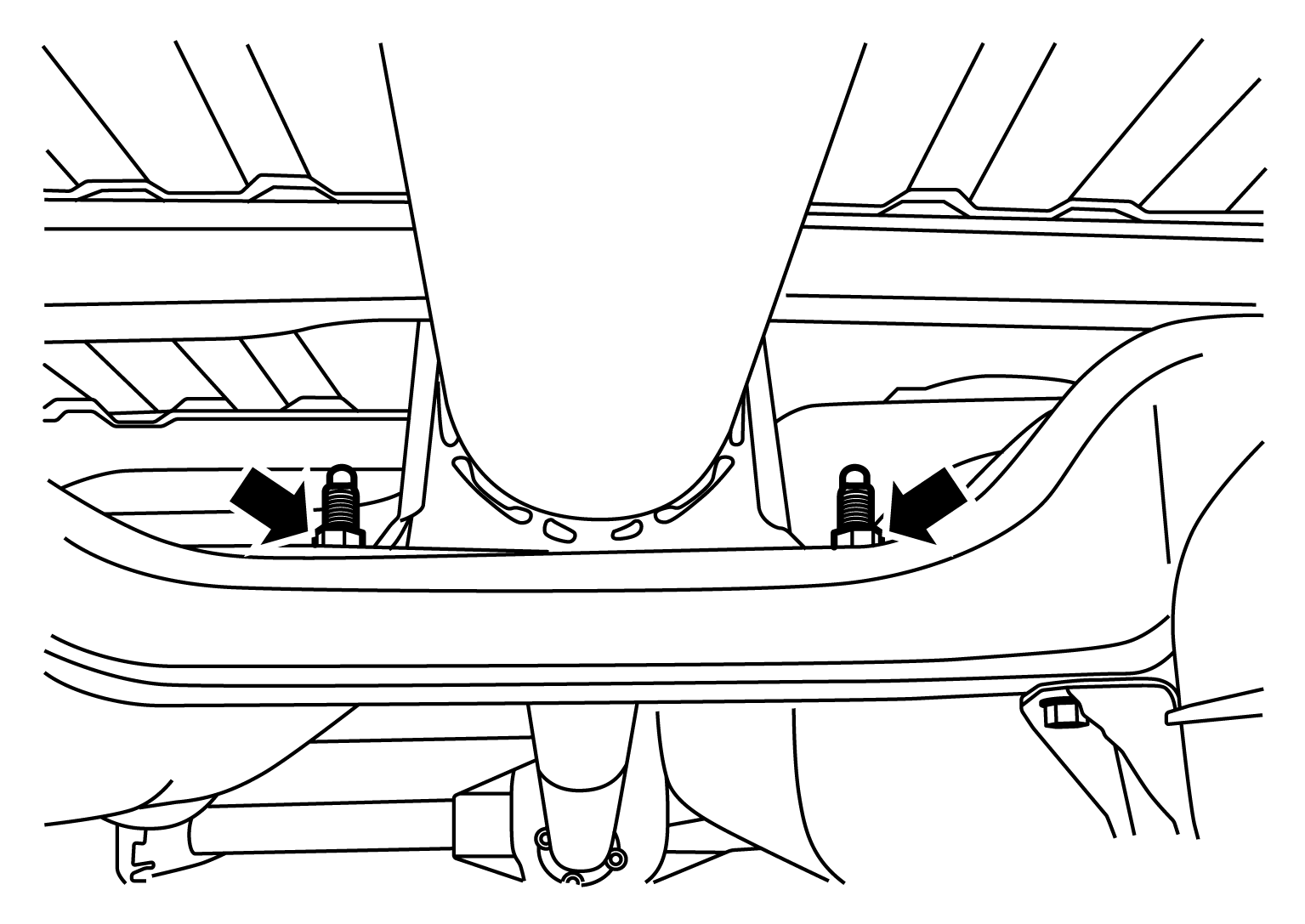

  3. Remove the center support bearing nuts.
    GNSALDIA0232Z-232Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the nuts and bolts from the propeller shaft and rear final drive, and remove the propeller shaft.
