Removal and Installation: Installation
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
- If the propeller shaft or final drive has been replaced, connect them as follows:

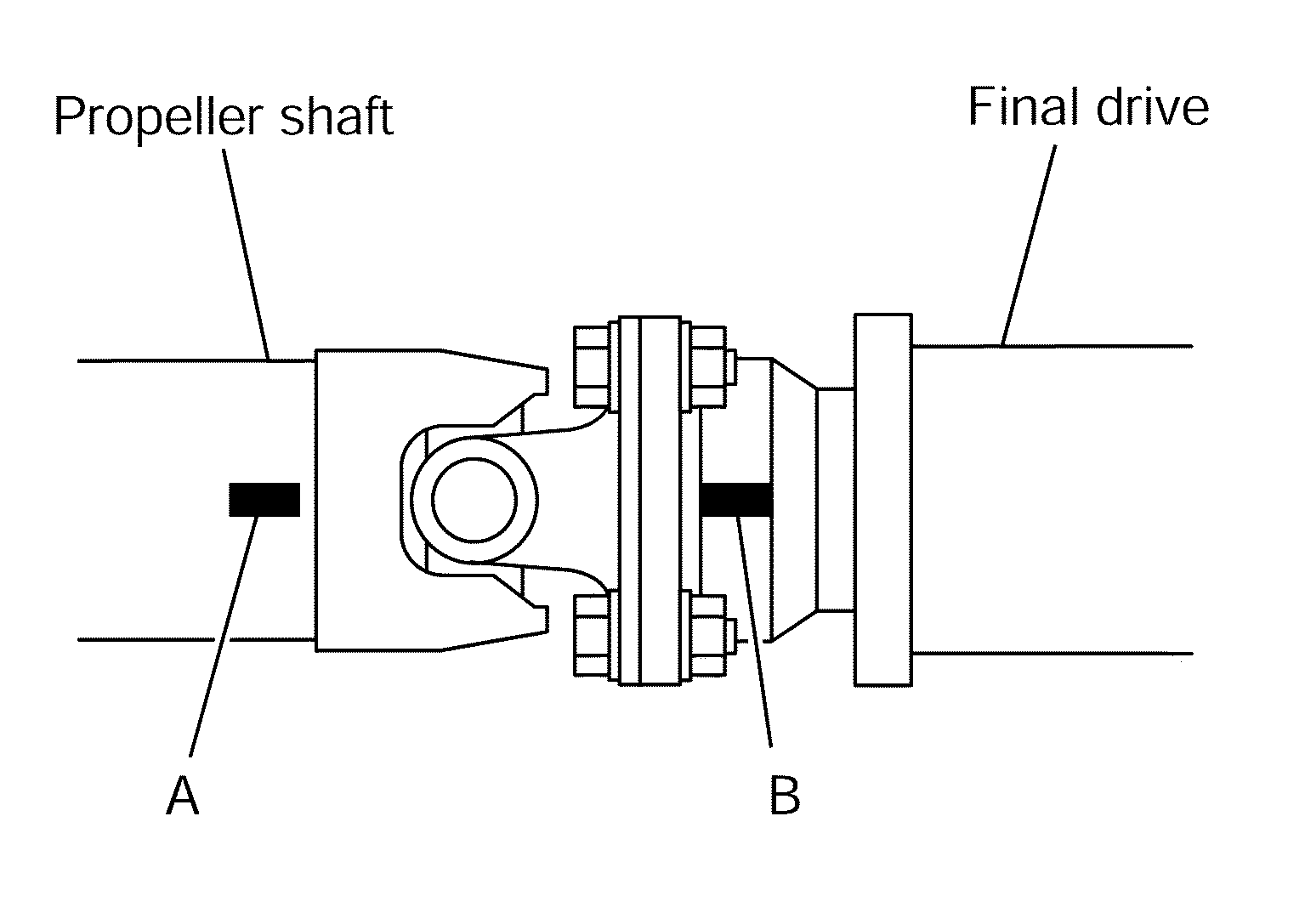

- Install the propeller shaft while aligning its matching mark (A) with the matching mark (B) on the joint as close as possible.CAUTION: Do not reuse the bolts and nuts. Always install new ones.
- Install the propeller shaft while aligning its matching mark (A) with the matching mark (B) on the joint as close as possible.
- After installation, check for vibration by driving the vehicle. Refer to NVH Troubleshooting Chart .
