Inspection After Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

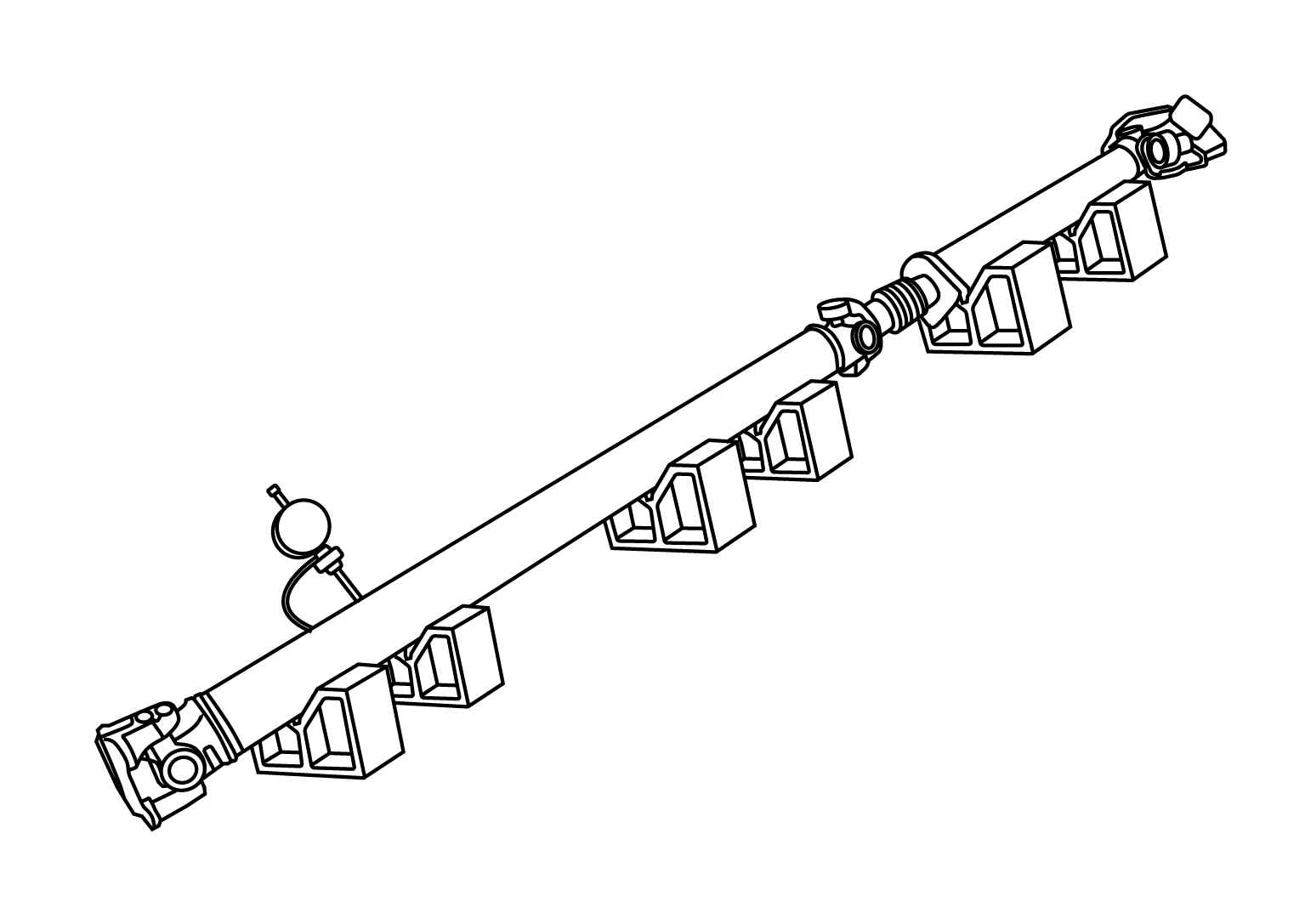

Inspect the propeller shaft runout. If runout exceeds the limit, replace the propeller shaft assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

Propeller shaft runout

: Refer to General Specification

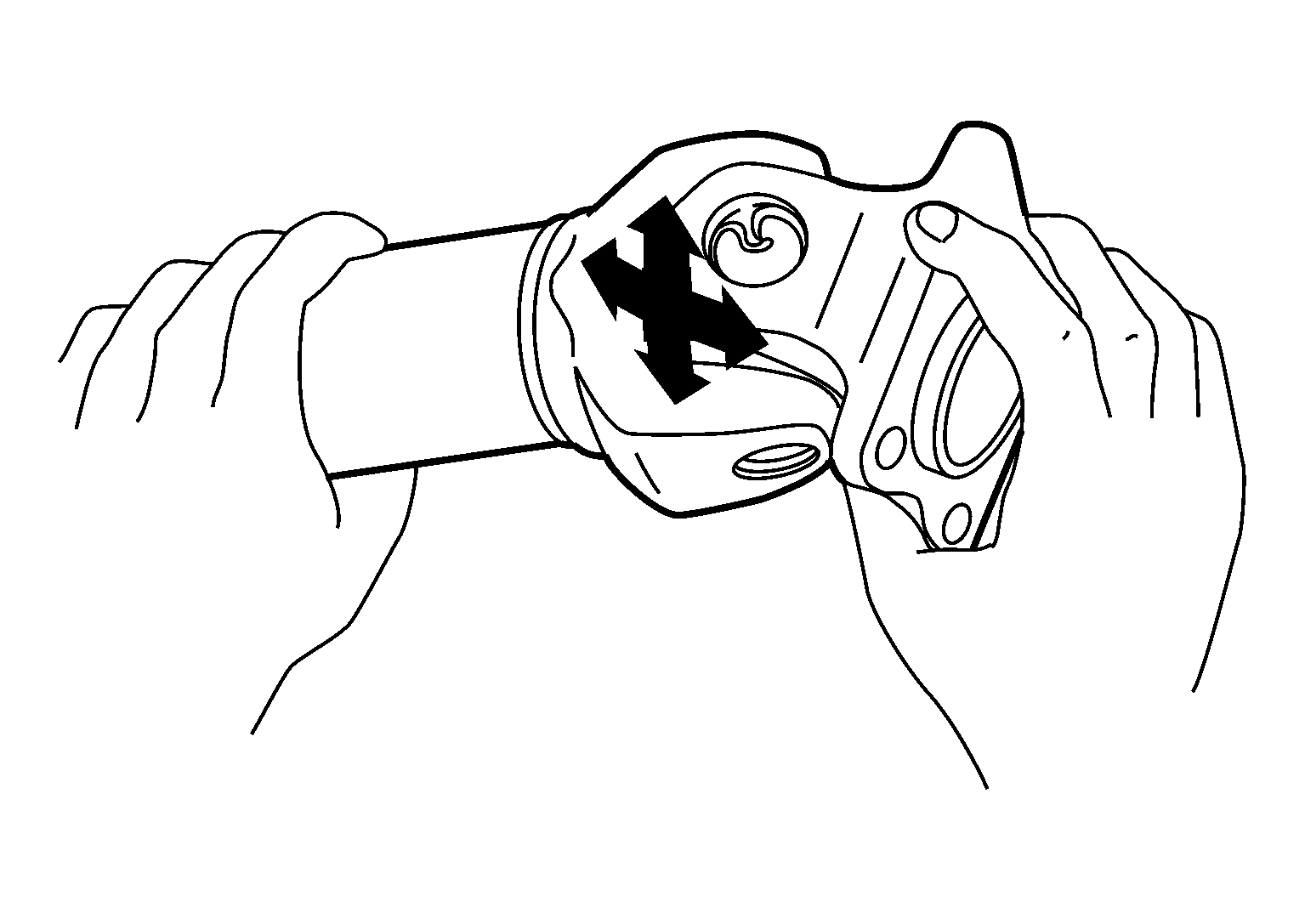

While holding the flange yoke on one side, check axial play of the joint as shown, below. If the journal axial play exceeds the specification, repair or replace the journal parts.

Courtesy of NISSAN NORTH AMERICA, INC.

Journal axial play

: Refer to General Specification

Check the propeller shaft tube for bend and damage. If damage is detected, replace the propeller shaft assembly.
