Propeller Shaft Vibration

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If vibration is present at high speed, check propeller shaft runout first, then check mounting between propeller shaft and companion flange.

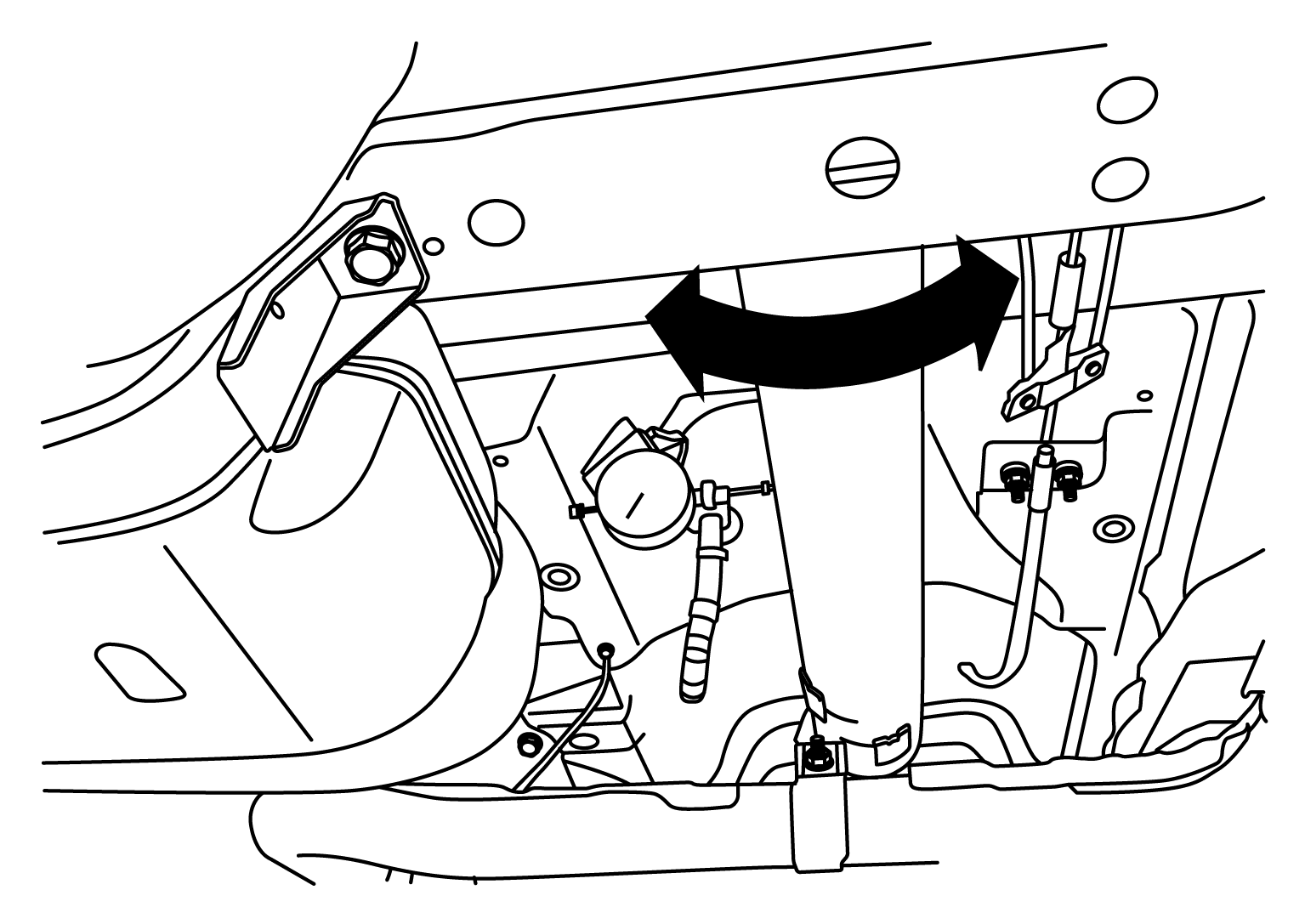

  1. Measure the runout of the propeller shaft tube at several points by rotating the final drive companion flange with your hands.
    GNSDB115888Courtesy of NISSAN NORTH AMERICA, INC.

    Propeller shaft runout

    : Refer to General Specification .

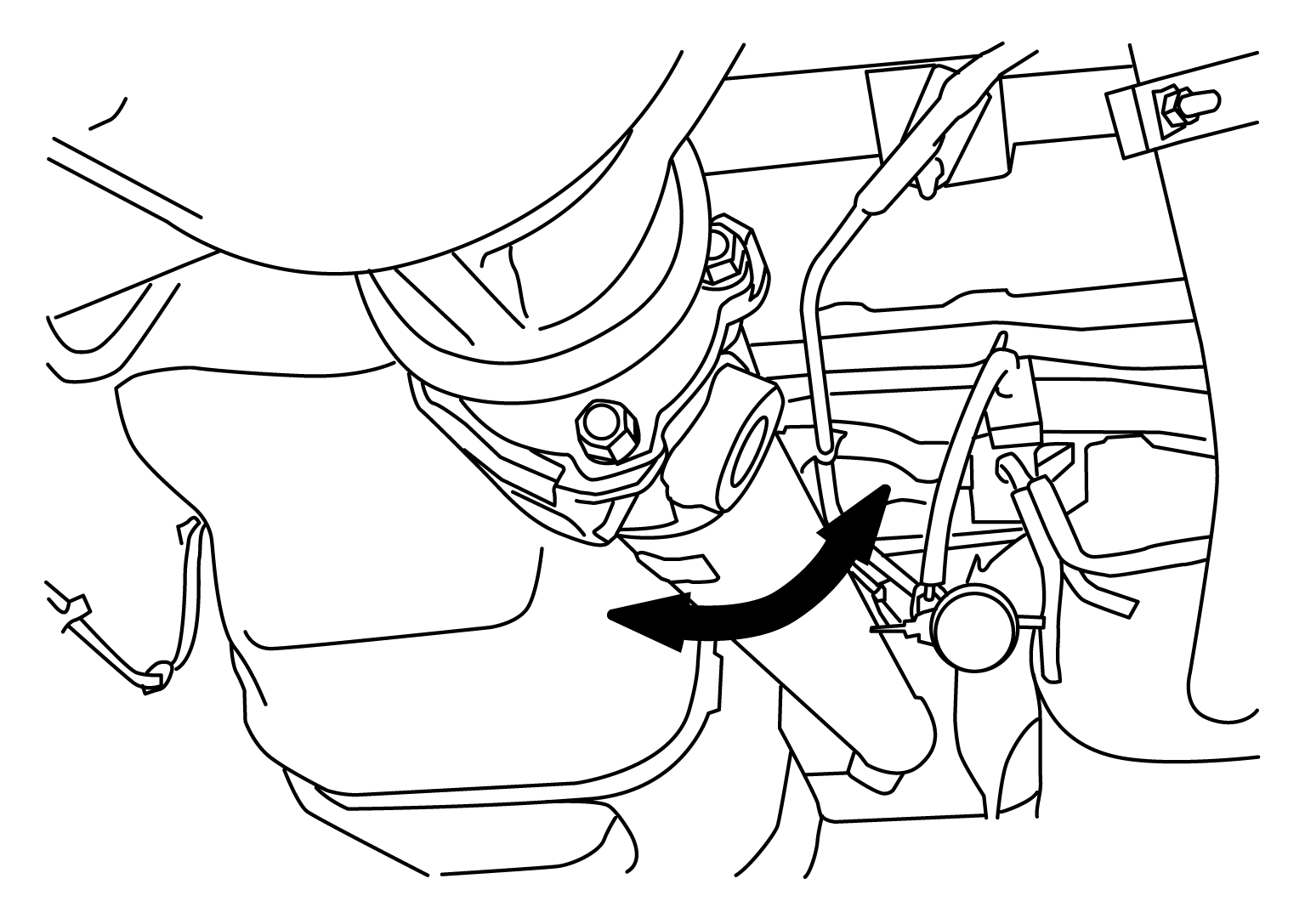

    GNSDB113309Courtesy of NISSAN NORTH AMERICA, INC.
  2. If the runout still exceeds specifications, disconnect the propeller shaft at the final drive companion flange; then rotate the companion flange 90 deg., 180 deg., 270 deg. and reconnect propeller shaft.
  3. Check the runout again. If the runout still exceeds specifications, replace the propeller shaft assembly.
  4. After installation, check for vibration by driving the vehicle.
