Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

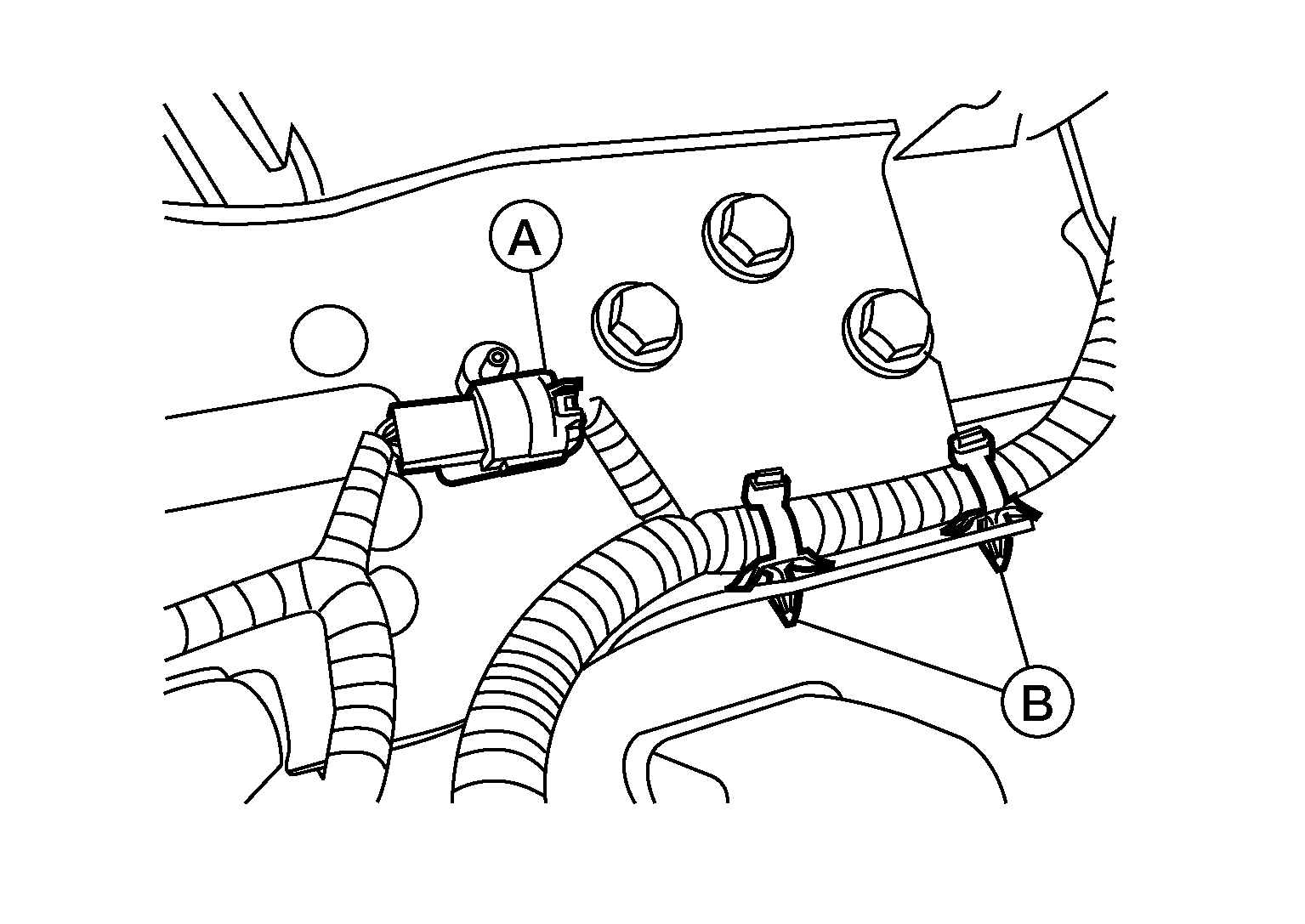

Disconnect the harness connector (A) from the rear sonar sensor and release the tow hitch harness clips (B) (if equipped).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the tow hitch nuts (A) (if equipped).

Courtesy of NISSAN NORTH AMERICA, INC.

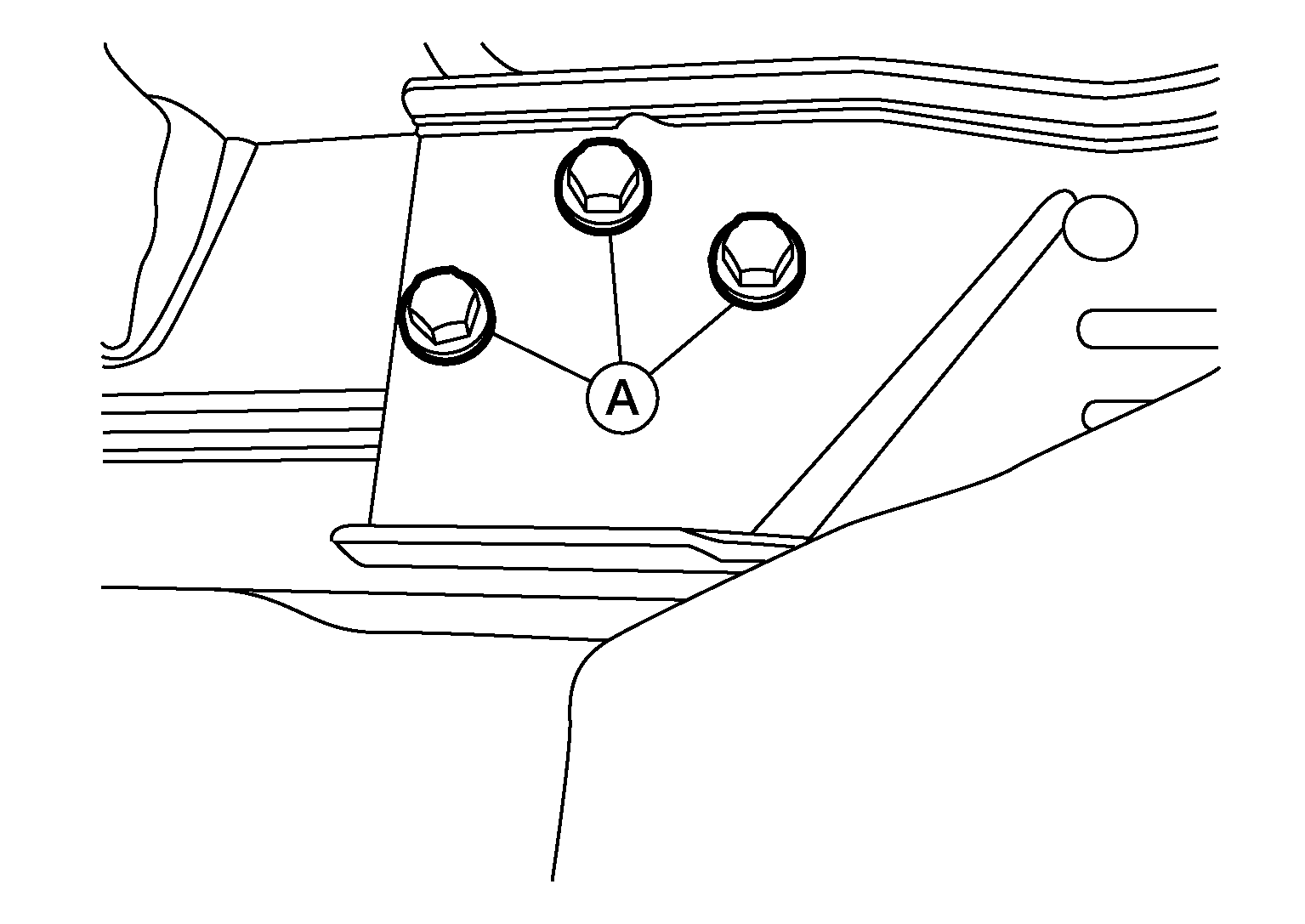

Remove the rear bumper center reinforcement (LH/RH) bolts (A) and the rear bumper.

Courtesy of NISSAN NORTH AMERICA, INC.

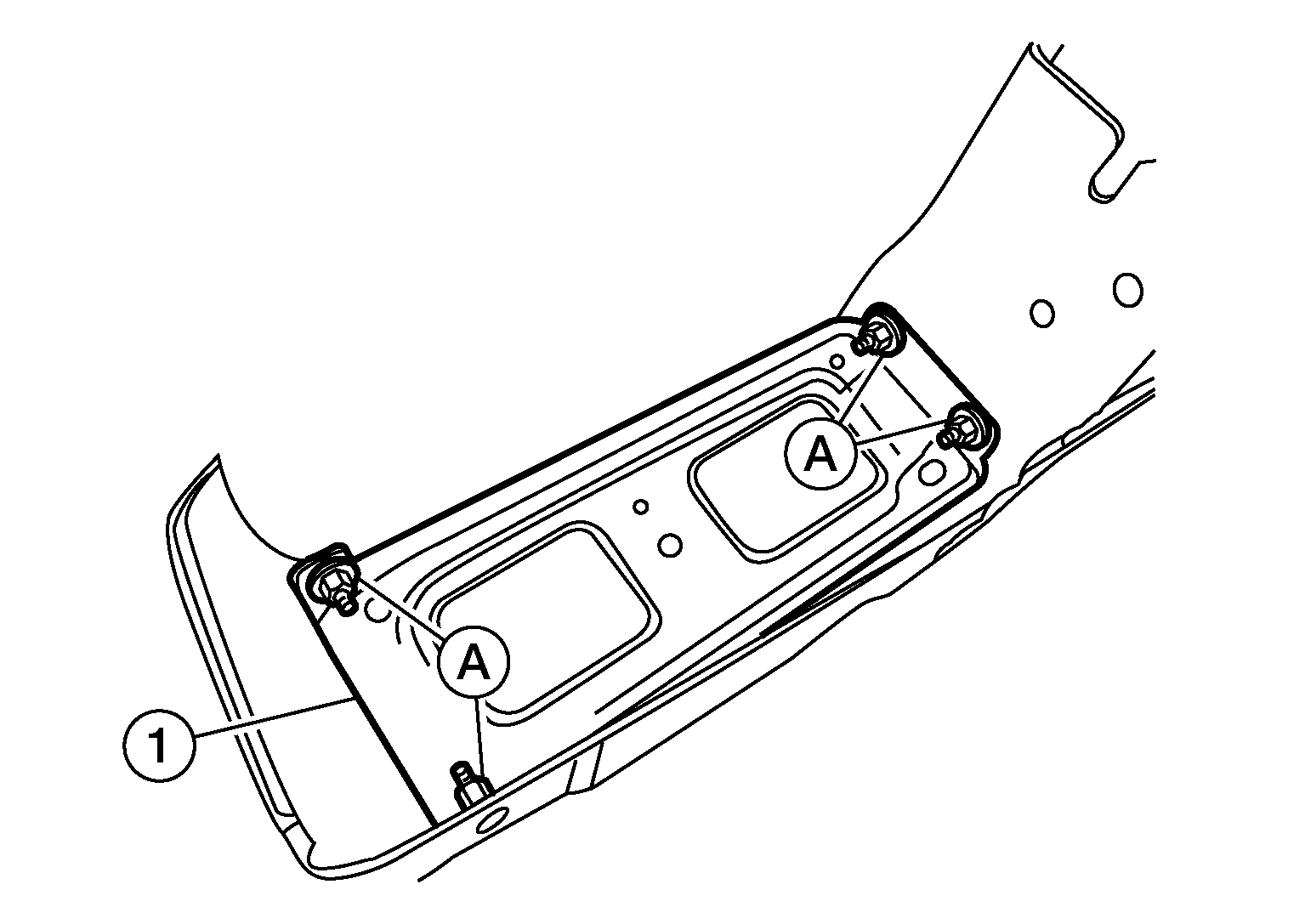

Remove the rear bumper side bracket nuts (A) and the side brackets (1) (LH/RH).

Courtesy of NISSAN NORTH AMERICA, INC.

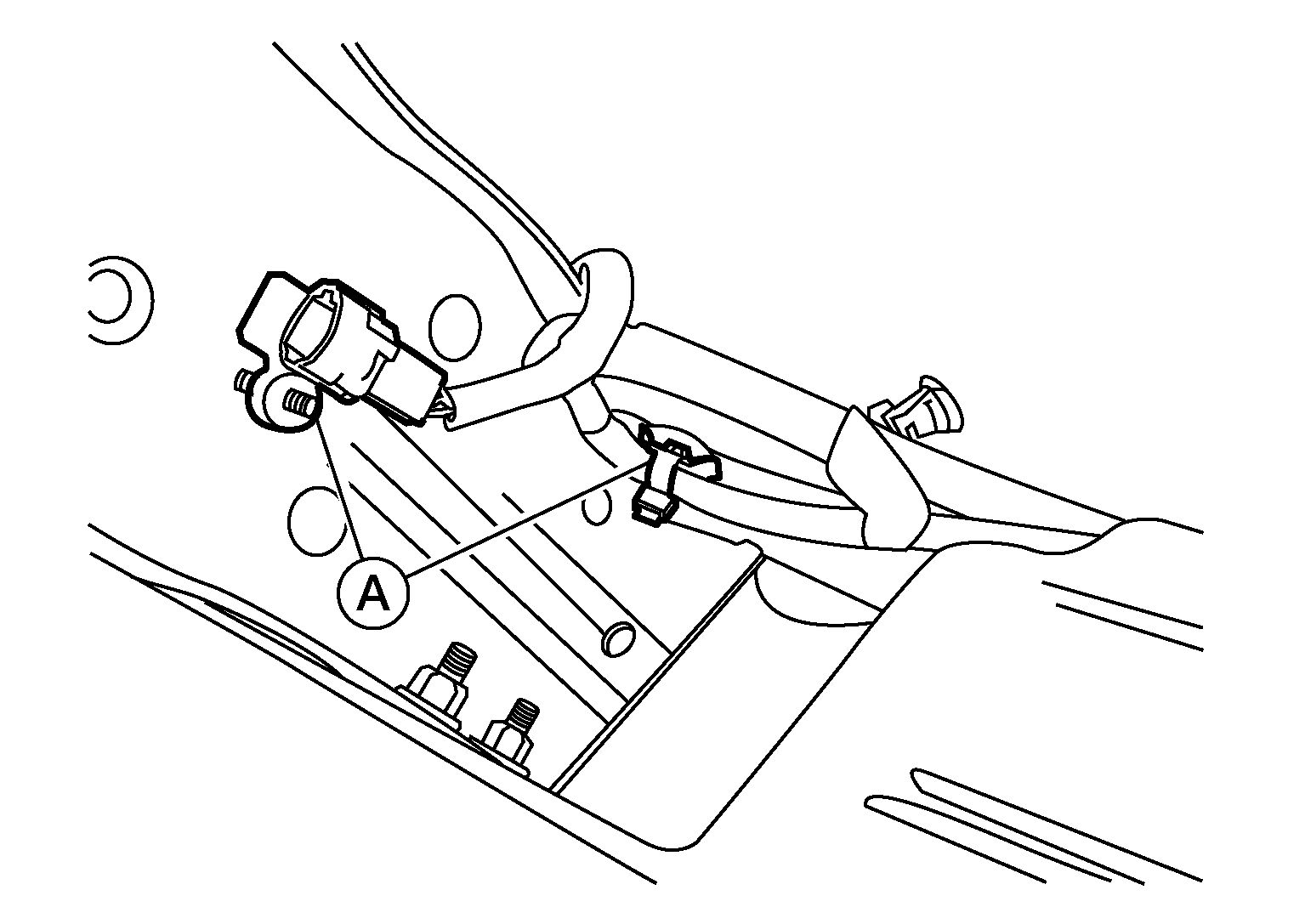

Release the rear sonar sensor harness connector and clip (A) (if equipped).

Courtesy of NISSAN NORTH AMERICA, INC.

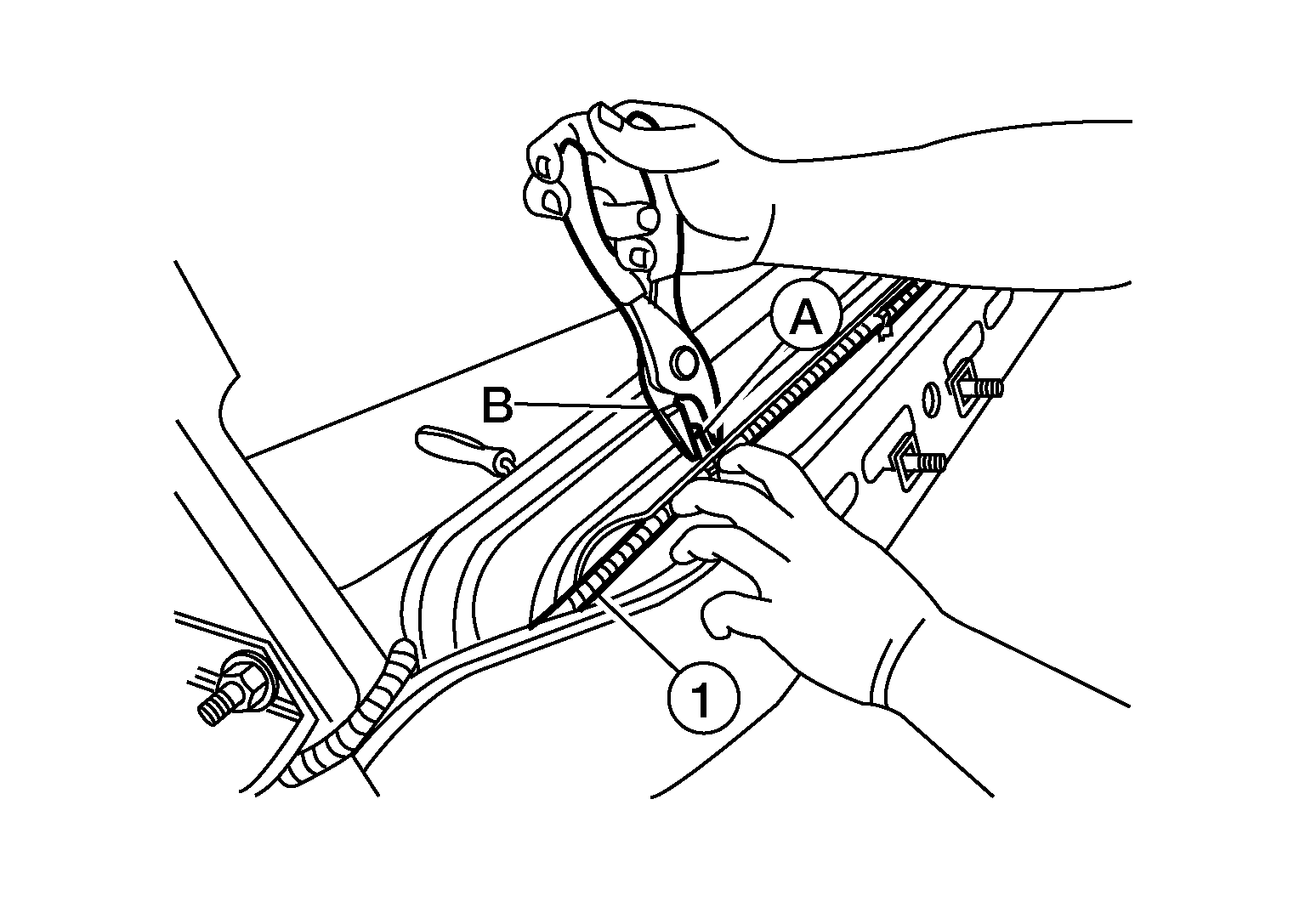

Release the rear sonar sensor harness clips (A), using a suitable tool (B) and remove the rear sonar sensor harness (1) (if equipped).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the rear sonar sensors (if equipped). Refer to Removal and Installation .

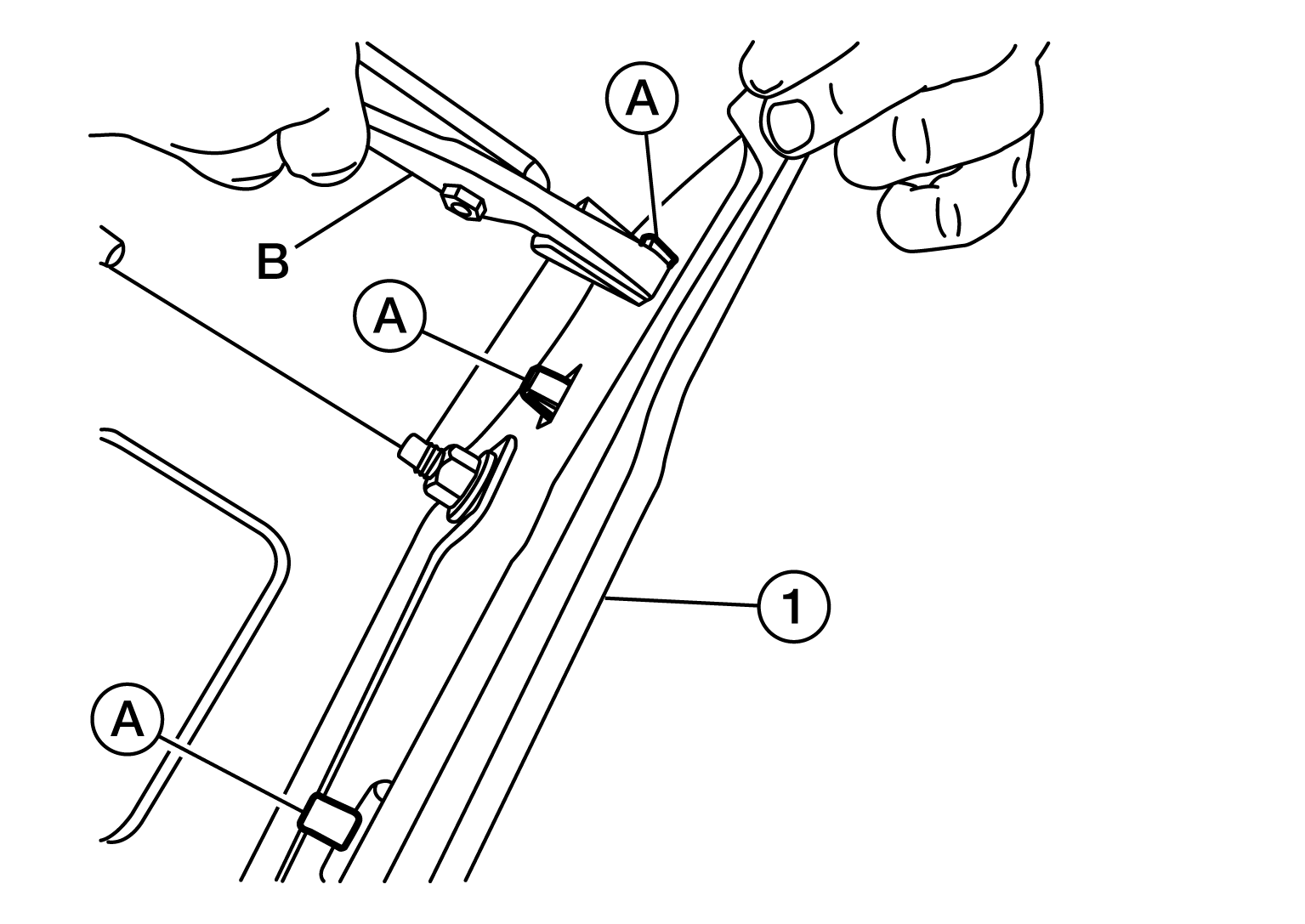

Release the rear bumper step pad clips (A), using a suitable tool (B) and remove the rear bumper step pad (1).

Courtesy of NISSAN NORTH AMERICA, INC.

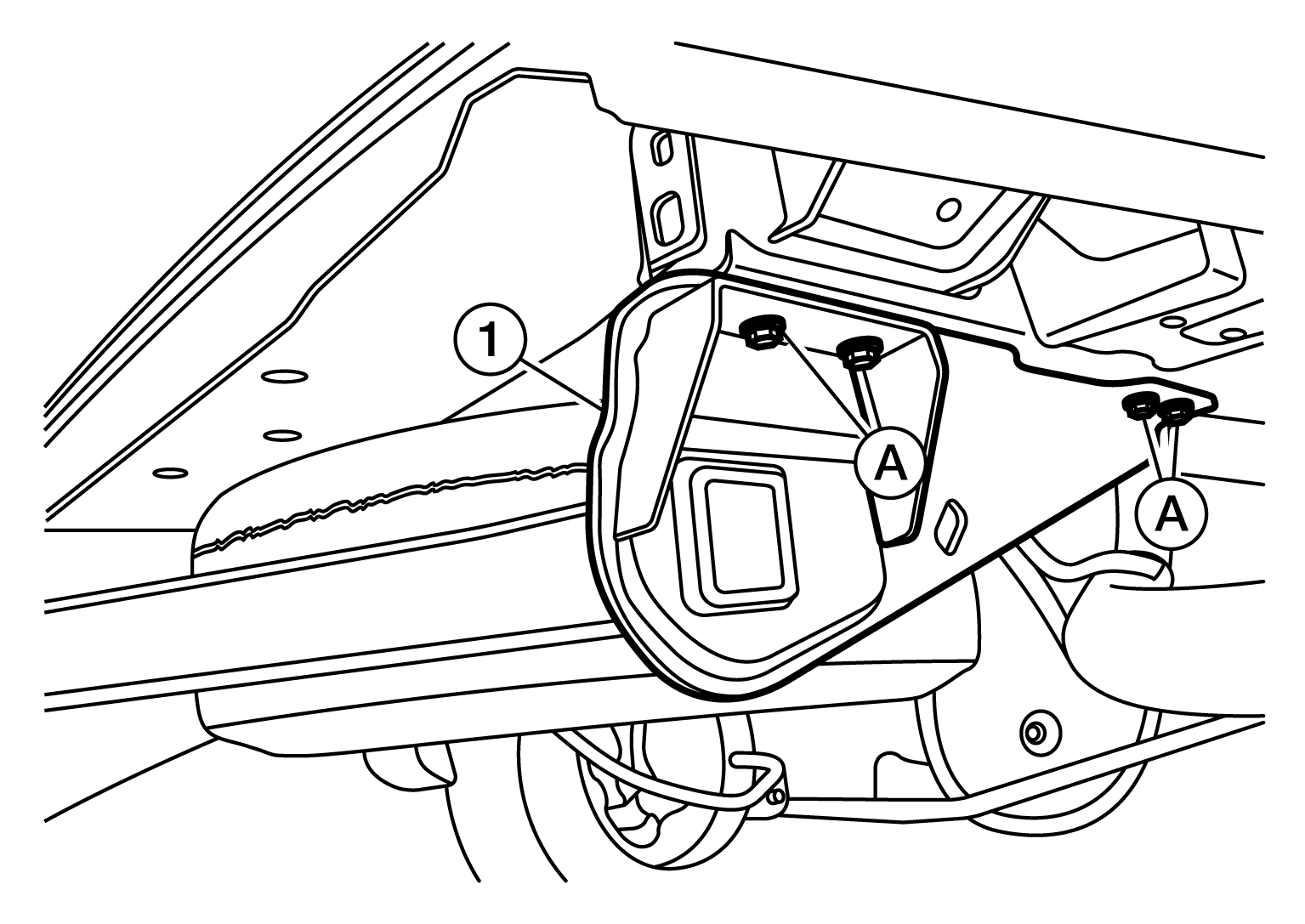

Remove the rear bumper reinforcement nuts (A), using a suitable tool (B) and remove the rear bumper reinforcement (1).

Courtesy of NISSAN NORTH AMERICA, INC.

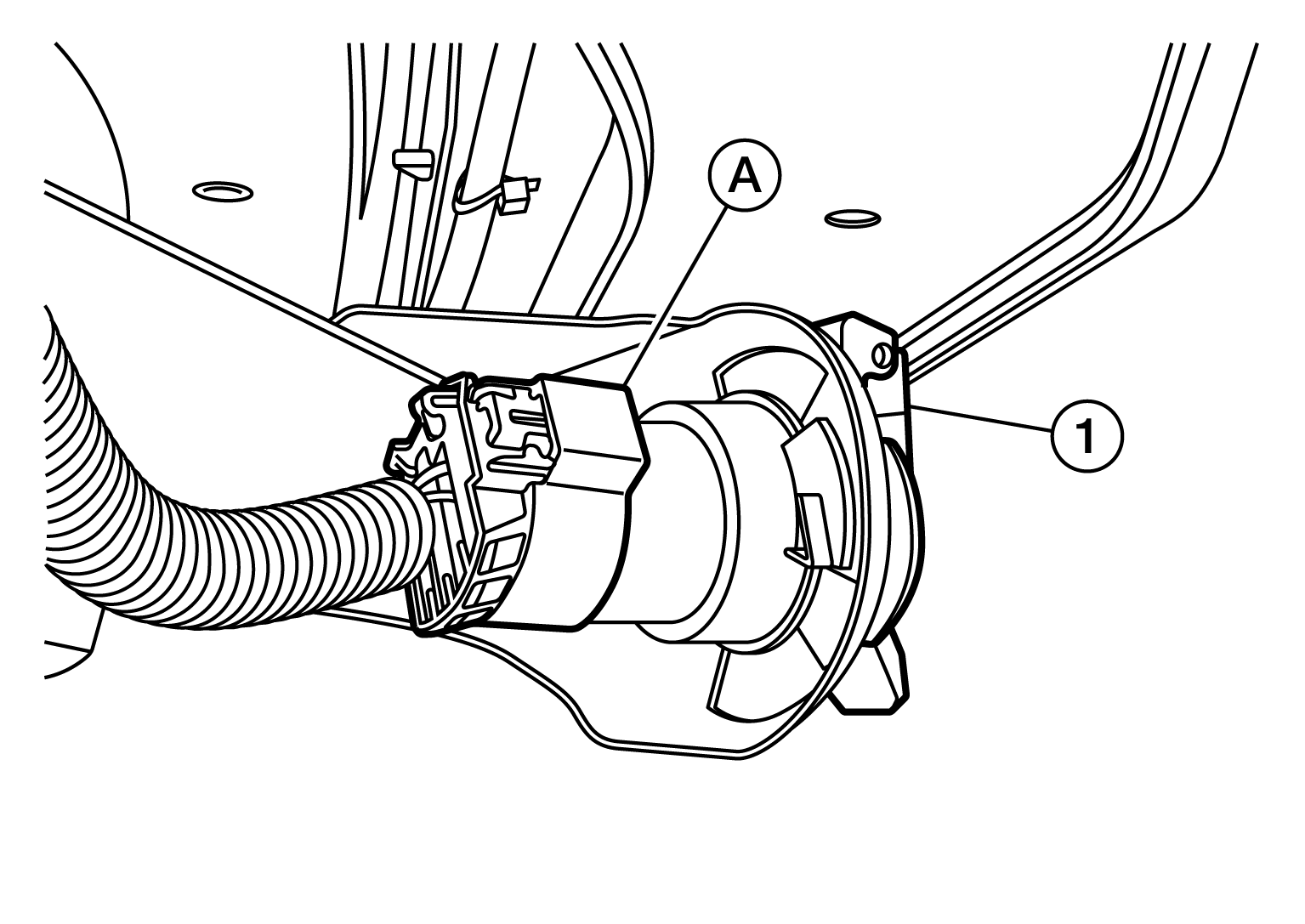

Disconnect the harness connector (A) from the tow hitch connector (1) (if equipped).

Courtesy of NISSAN NORTH AMERICA, INC.

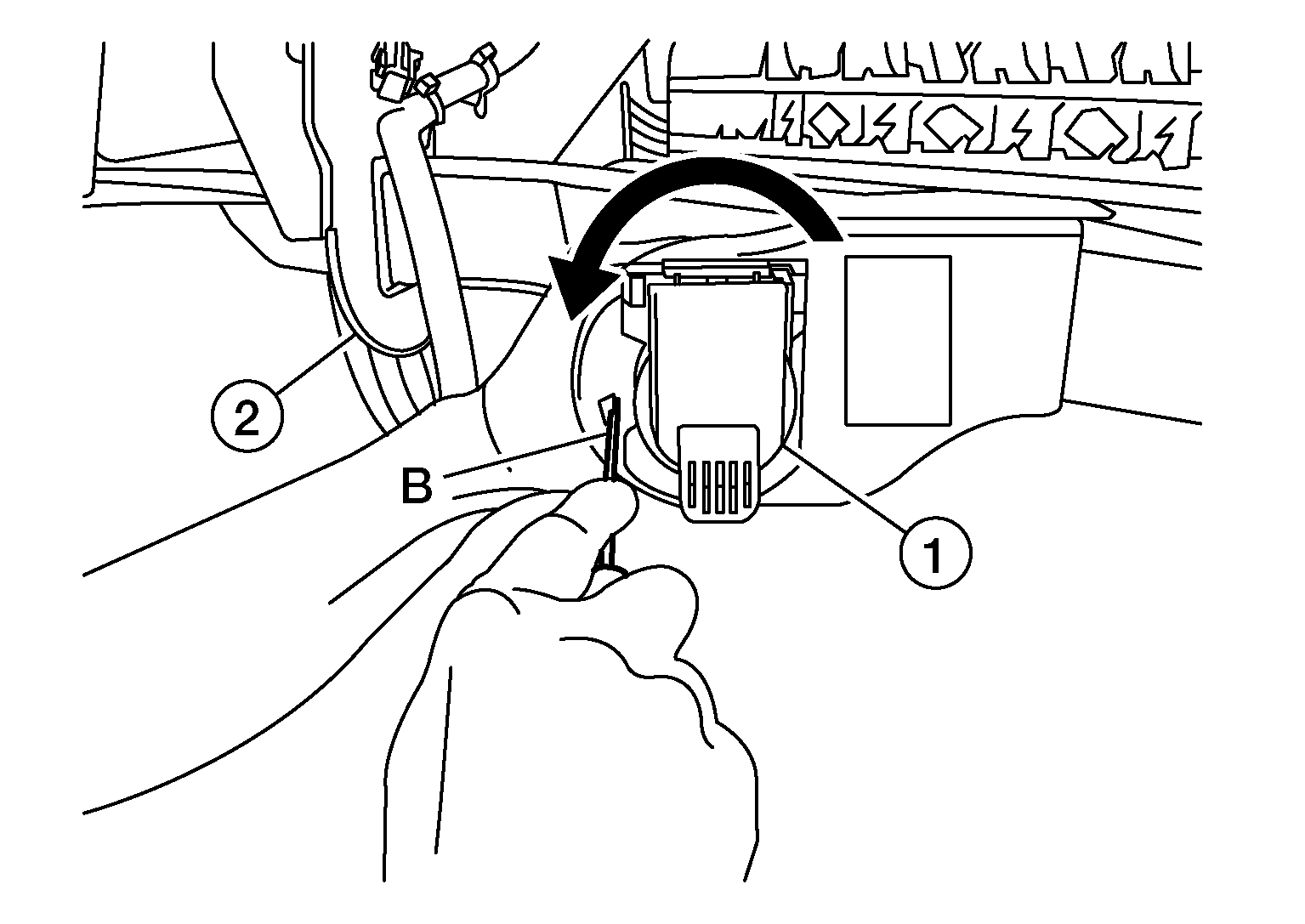

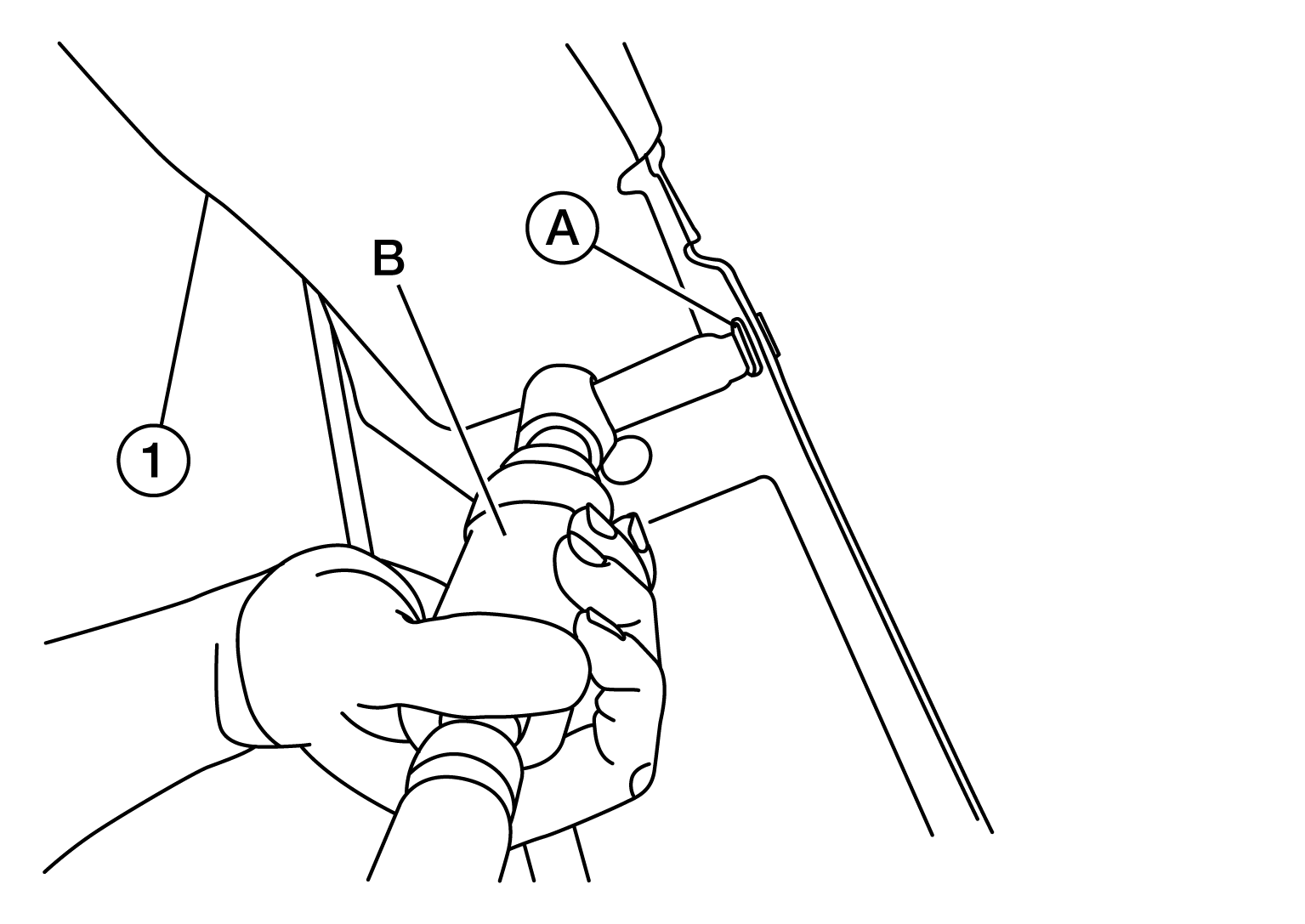

Press the tow harness connector tab in, using a suitable tool (B), then rotate the tow harness connector (1) and remove the tow hitch harness connector (1) from the tow hitch (2) (if equipped).

Courtesy of NISSAN NORTH AMERICA, INC.

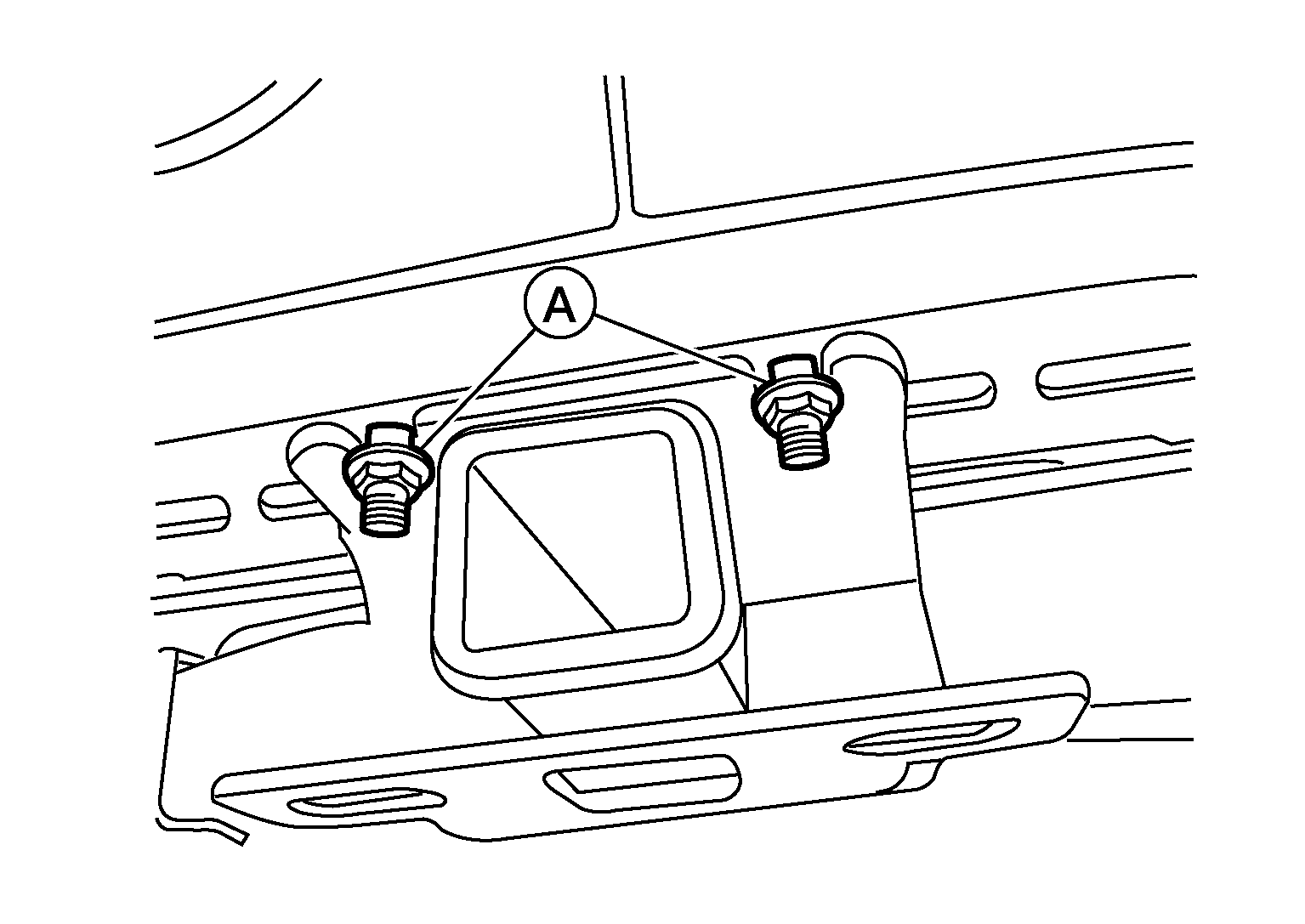

Remove the tow hitch bolts (A) and the tow hitch (1) (if equipped).
