Removal and Installation: Installation
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.

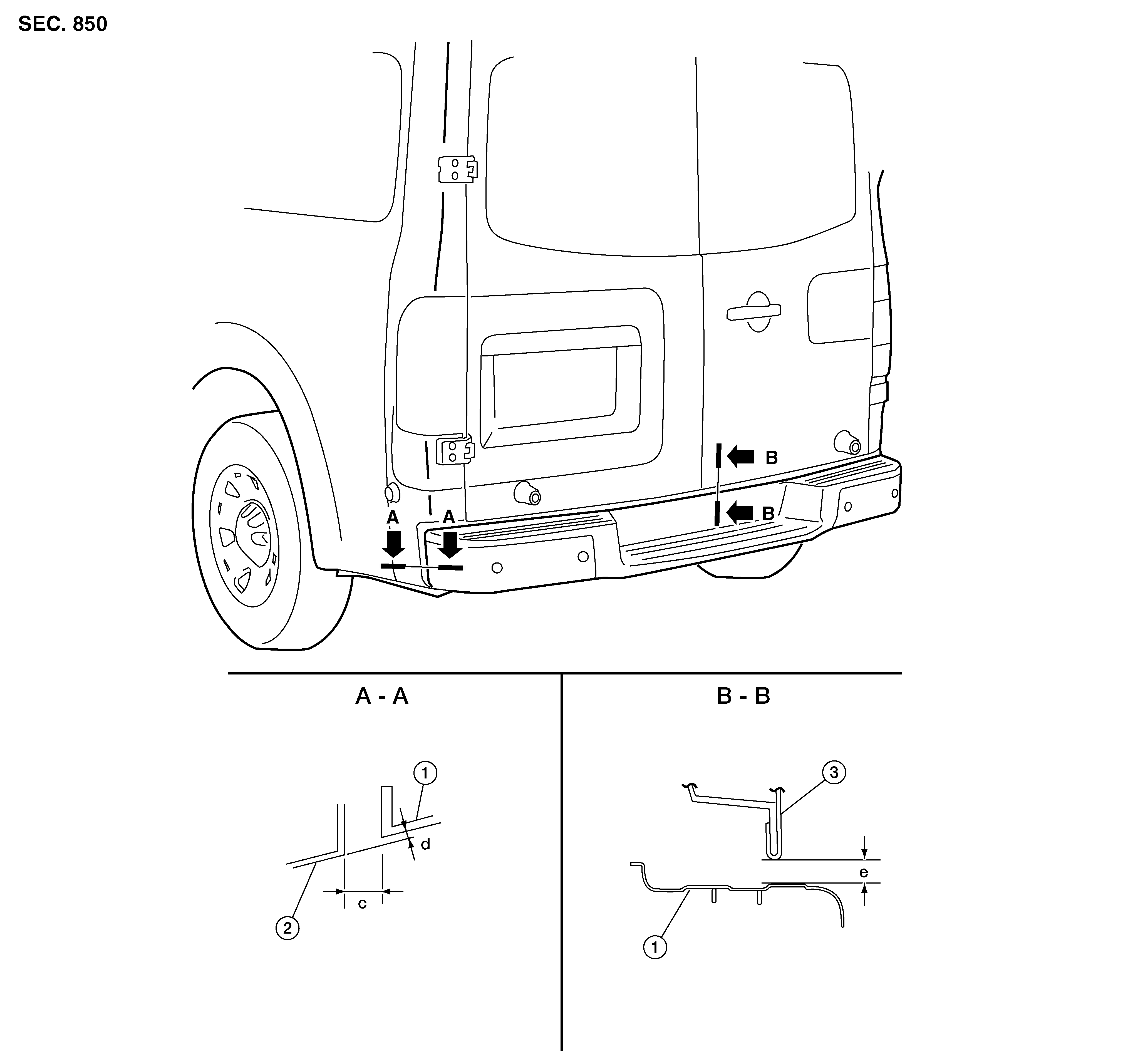

 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Rear bumper
|
2.
|
Body side outer (LH)
|
3.
|
Back door
|
Units: mm (in)
|
Portion
|
Measurement
|
Standard
|
Difference (MAX)
|
|
A-A
|
c
|
Clearance
|
20.0 (0.79)
|
+/-5.0 (0.20)
|
|
A-A
|
d
|
Surface height
|
0.0 (0.00)
|
+/-5.0 (0.20)
|
|
B-B
|
e
|
Clearance
|
20.0 (0.79)
|
+/-5.0 (0.20)
|
