Exploded View

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

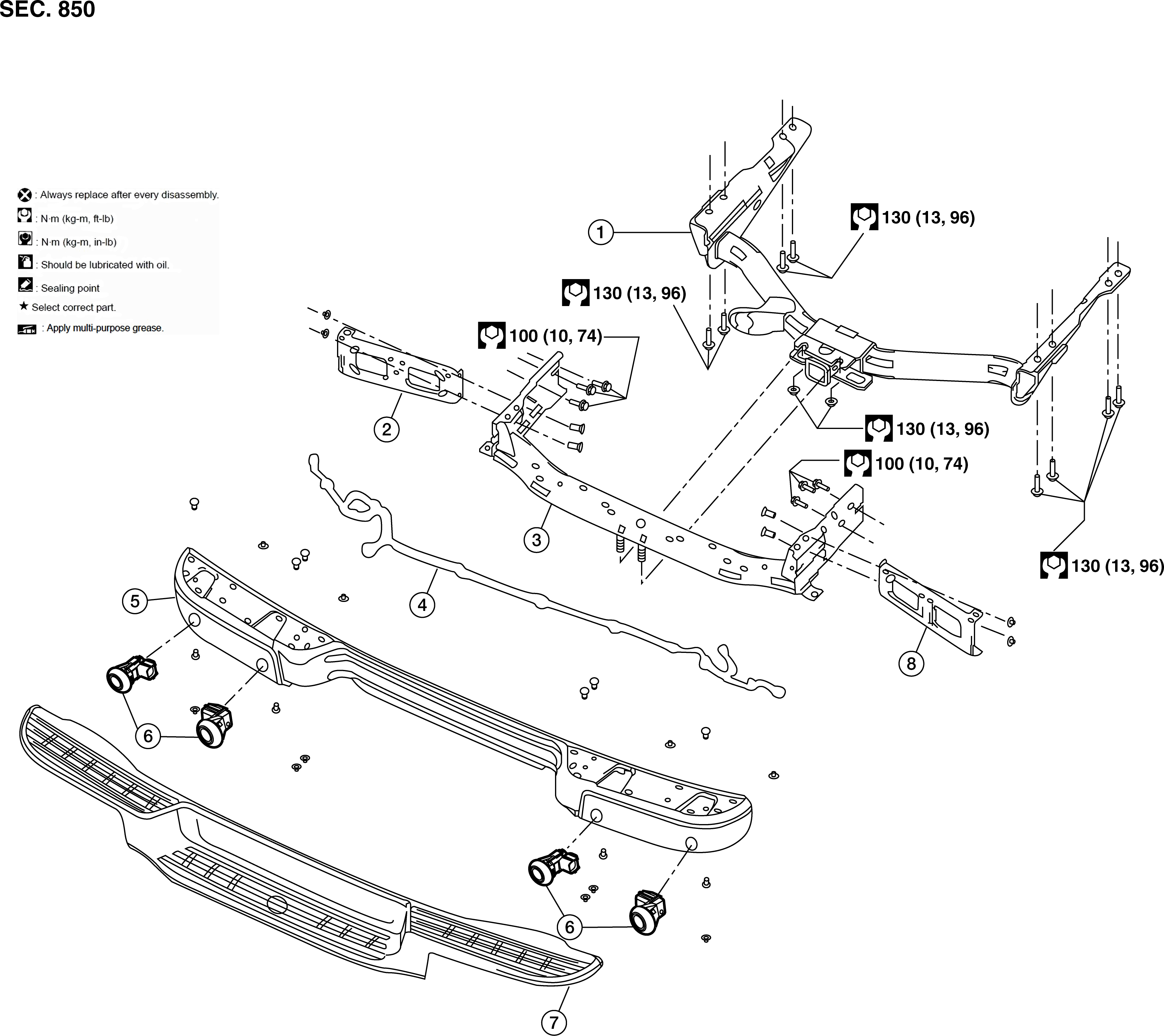

GNSAWKIA1963GB-963Courtesy of NISSAN NORTH AMERICA, INC.

1.

Tow hitch (if equipped)

2.

Rear bumper side reinforcement bracket (LH)

3.

Rear bumper center reinforcement

4.

Rear sonar sensor harness (if equipped)

5.

Rear bumper

6.

Rear sonar sensors (if equipped)

7.

Rear bumper step pad

8.

Rear bumper side reinforcement bracket (RH)
