Section 480 (Exterior)
>>
Removal And Installation
>>
Mudguard
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
HIGH ROOF CARGO VAN
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Front mudguard
2.
Rear mudguard

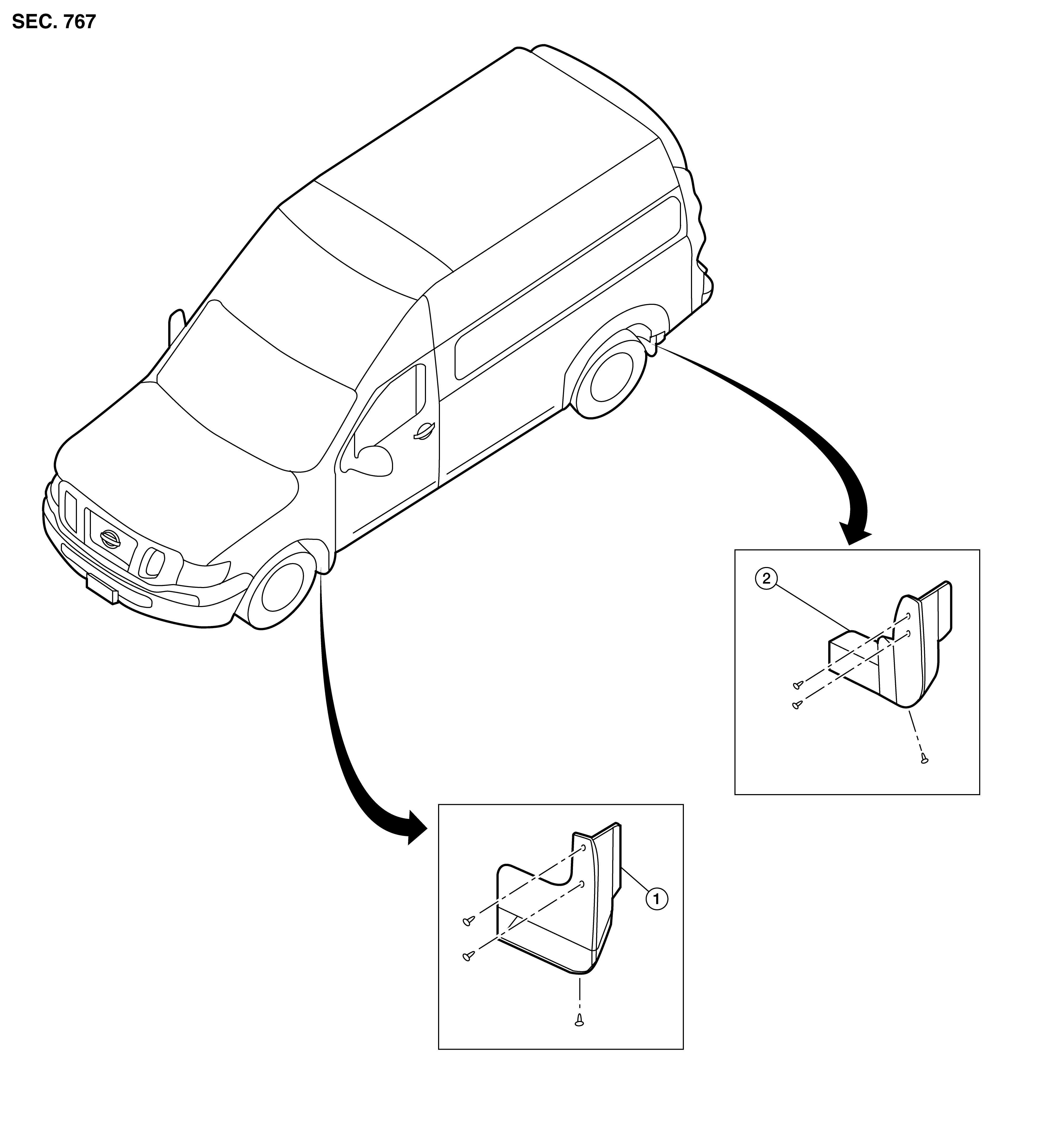

STANDARD ROOF CARGO OR PASSENGER VAN
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Front mudguard
2.
Rear mudguard
