Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

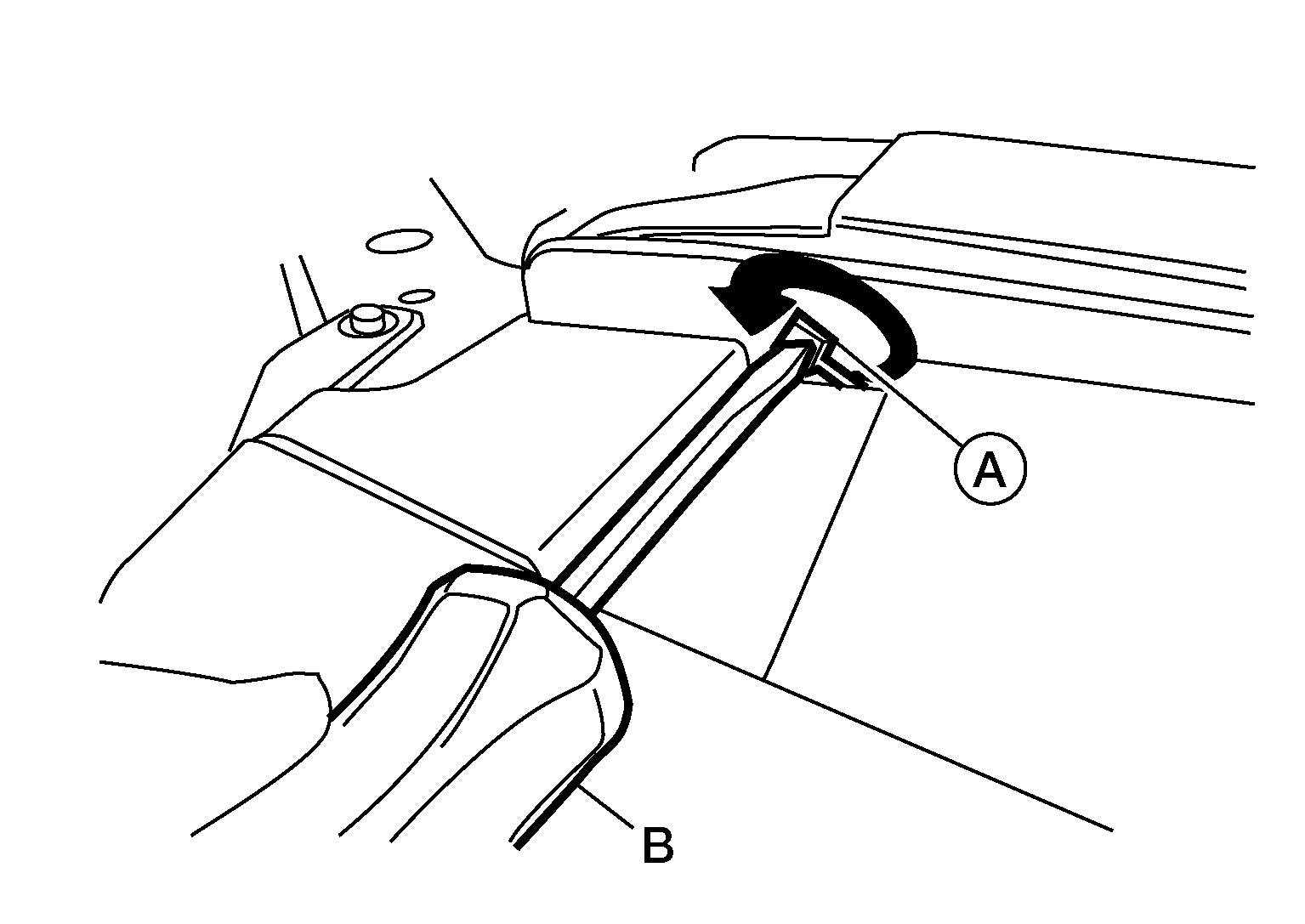

  1. Release the front grille top clips (A) using a suitable tool (B).
    GNSALKIA2016Z-016Courtesy of NISSAN NORTH AMERICA, INC.

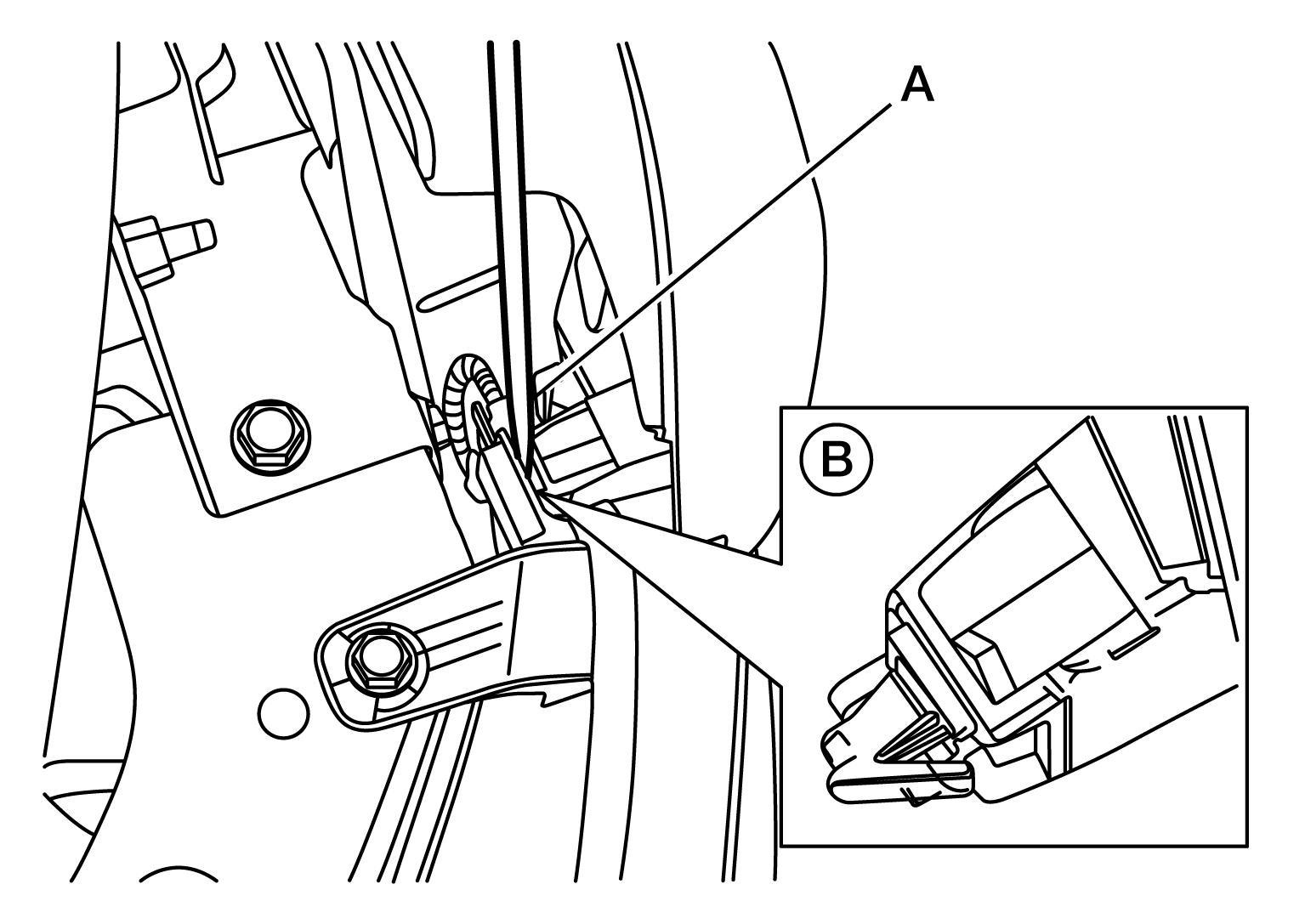

  2. Release the front grille side clips (B) on the LH and RH sides, using a suitable tool (A).
    GNSALKIA2017Z-017Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Use care not to damage the headlamp tabs when releasing the side clips.
  3. Release the front grille lower pawls and remove the front grille.
  4. Remove the emblem (if necessary).
