Removal and Installation - Upper Front Fascia: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front grille. Refer to Removal and Installation .
Remove the front fender lower protectors (LH/RH). Refer to Removal and Installation .
Partially remove the front edge of the front fender protectors (LH/RH). Refer to Removal and Installation .
Remove the upper front fascia screw (A) (LH/RH).

Courtesy of NISSAN NORTH AMERICA, INC.

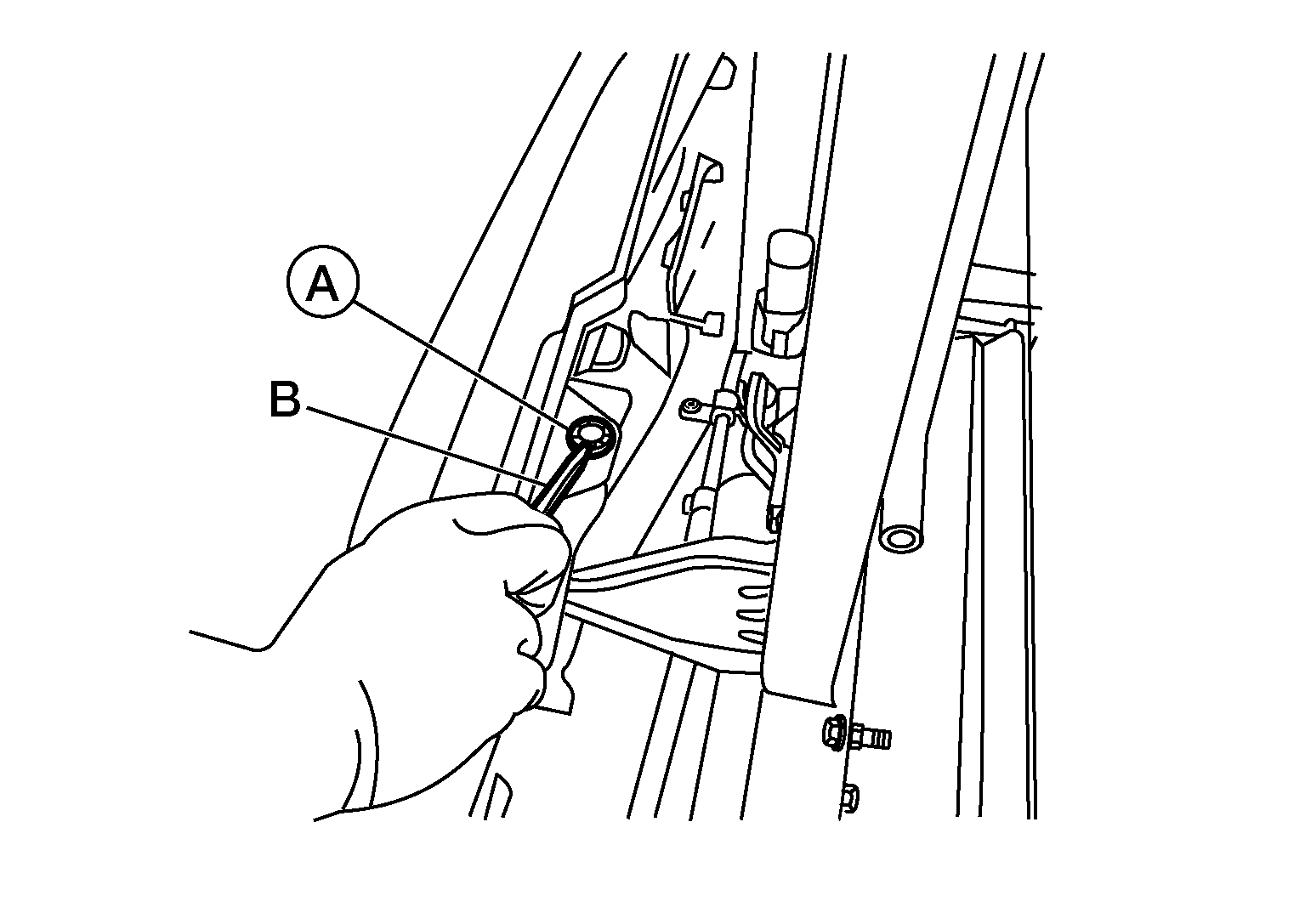

Remove the top and lower upper front fascia clips (A), using a suitable tool (B).

Courtesy of NISSAN NORTH AMERICA, INC.

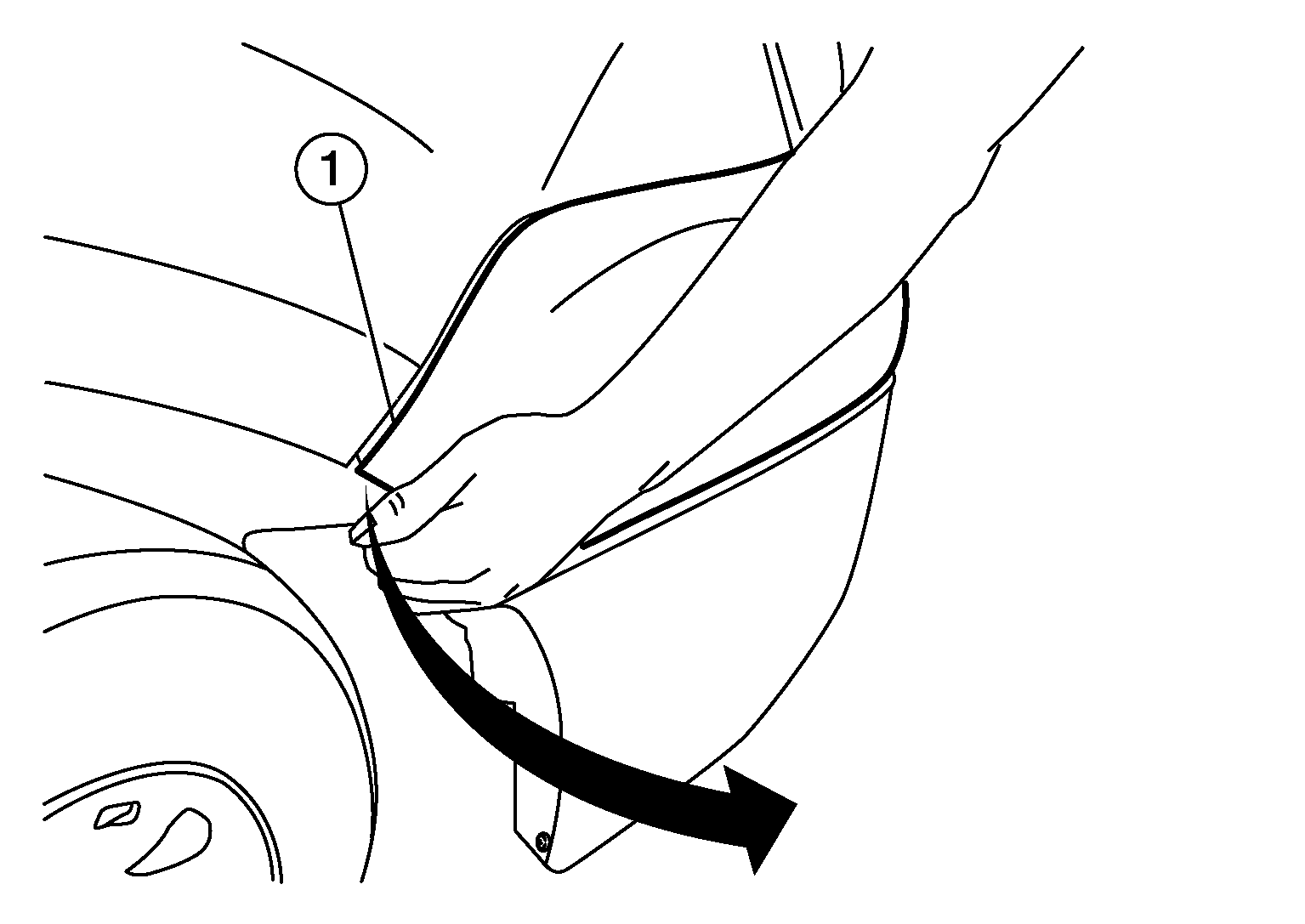

Remove the upper front fascia (1).

Courtesy of NISSAN NORTH AMERICA, INC.

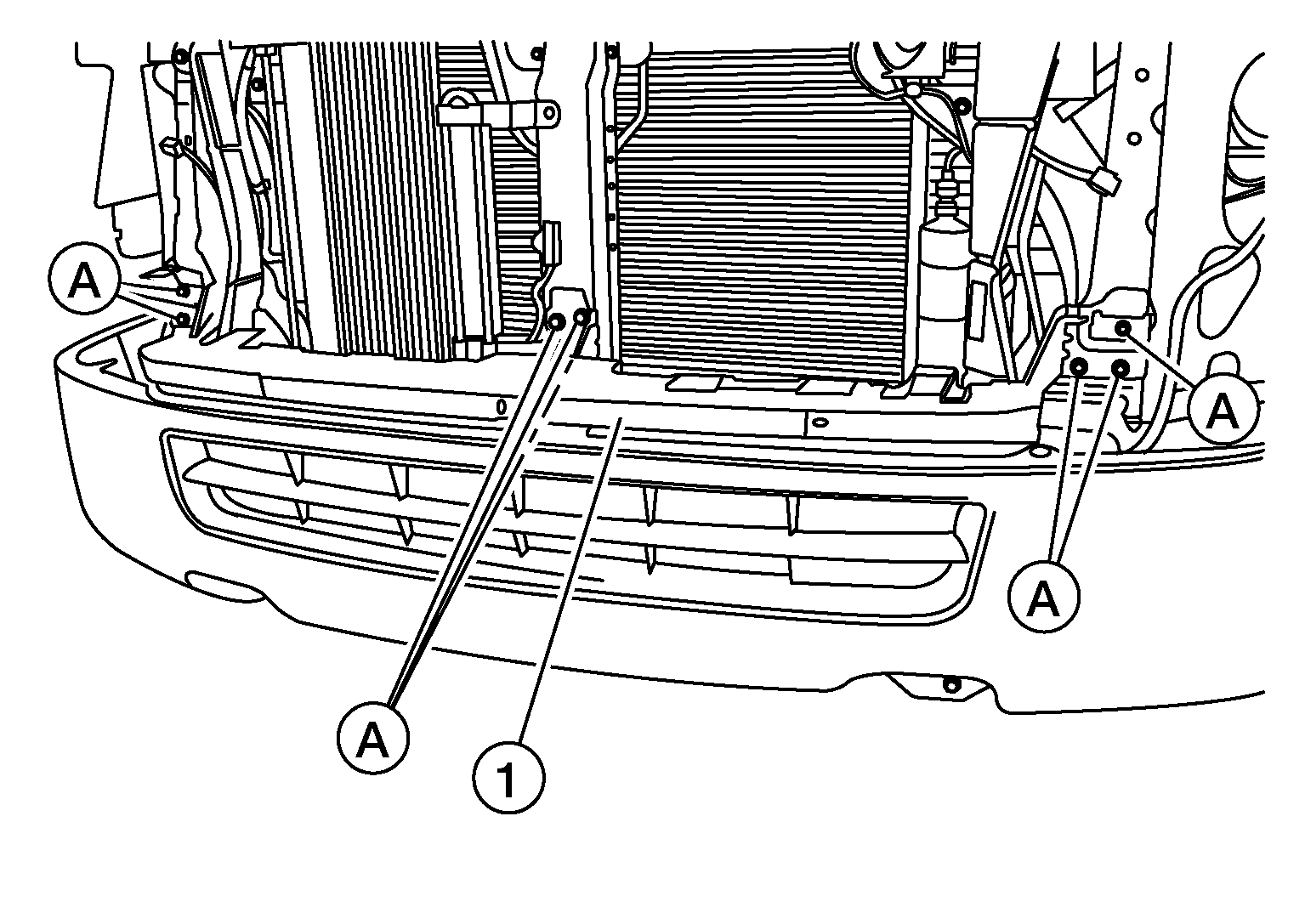

Remove the upper front fascia reinforcement bolts (A) at the RH, LH and center of the reinforcement and the upper front fascia reinforcement (1).

Courtesy of NISSAN NORTH AMERICA, INC.
