Removal and Installation - Front Bumper: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fender lower protectors (LH/RH). Refer to Removal and Installation .
  2. Partially remove the front edge of the fender protectors (LH/RH). Refer to Removal and Installation .
  3. Disconnect the harness connector from front fog lamp (if equipped).
  4. Disconnect the harness connector from sonar sensor (if equipped).

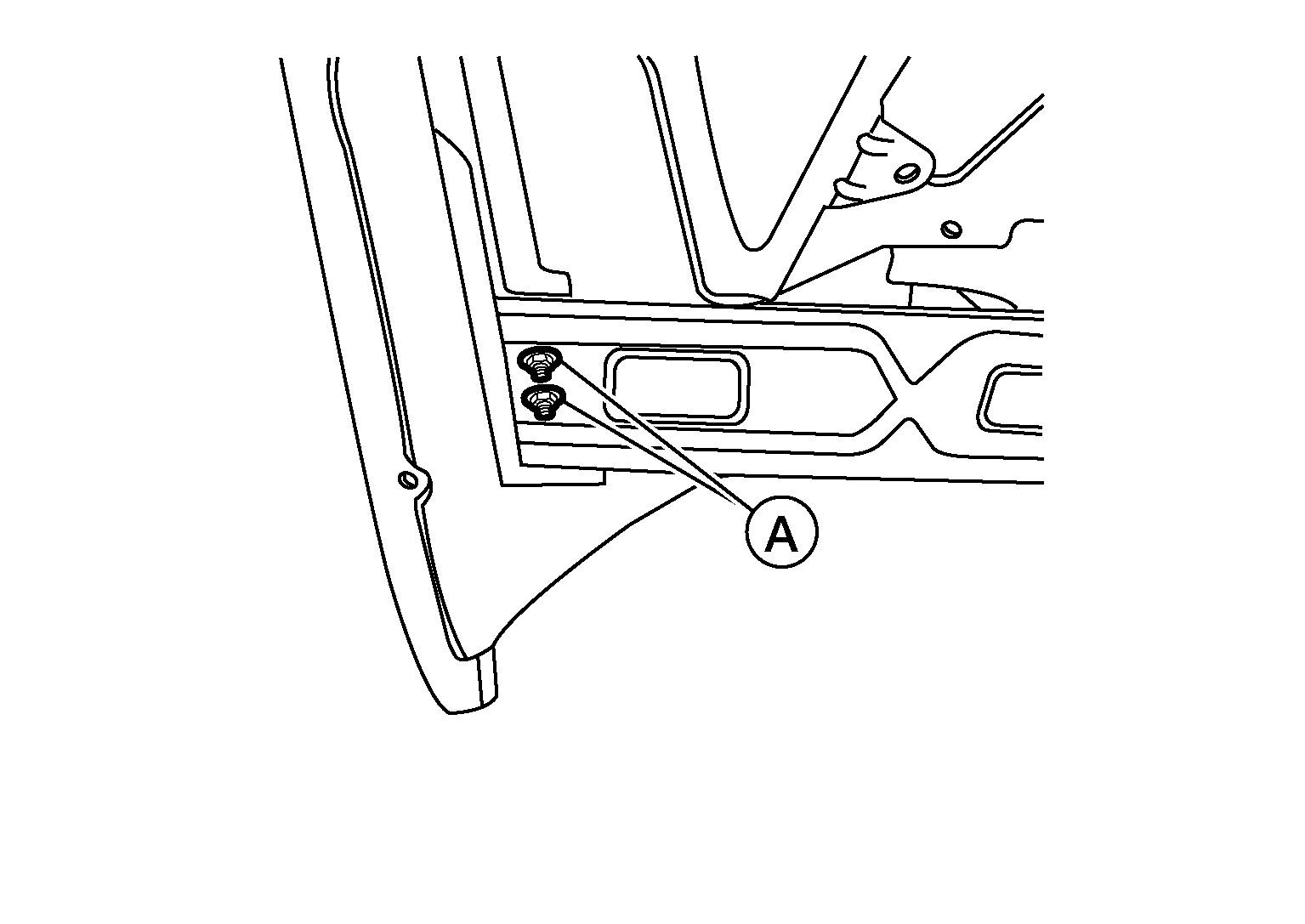

  5. Remove the side reinforcement (LH/RH) nuts (A).
    GNSALKIA2031Z-031Courtesy of NISSAN NORTH AMERICA, INC.

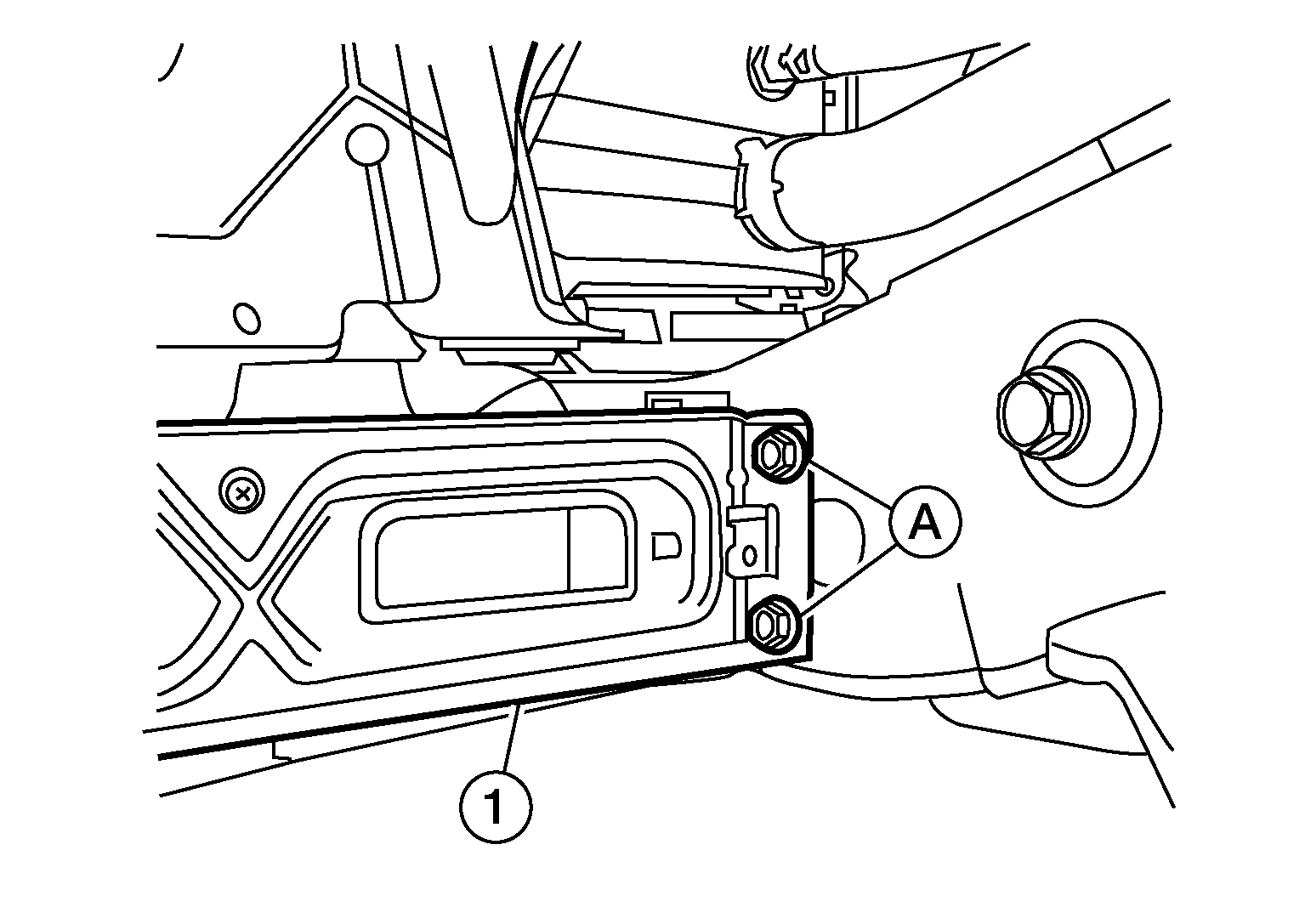

  6. Remove the side reinforcement (LH/RH) bolts (A) and the side reinforcements (1) (LH/RH).
    GNSALKIA2032Z-032Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove the front bumper side bracket (LH/RH) nuts and the side brackets (LH/RH).

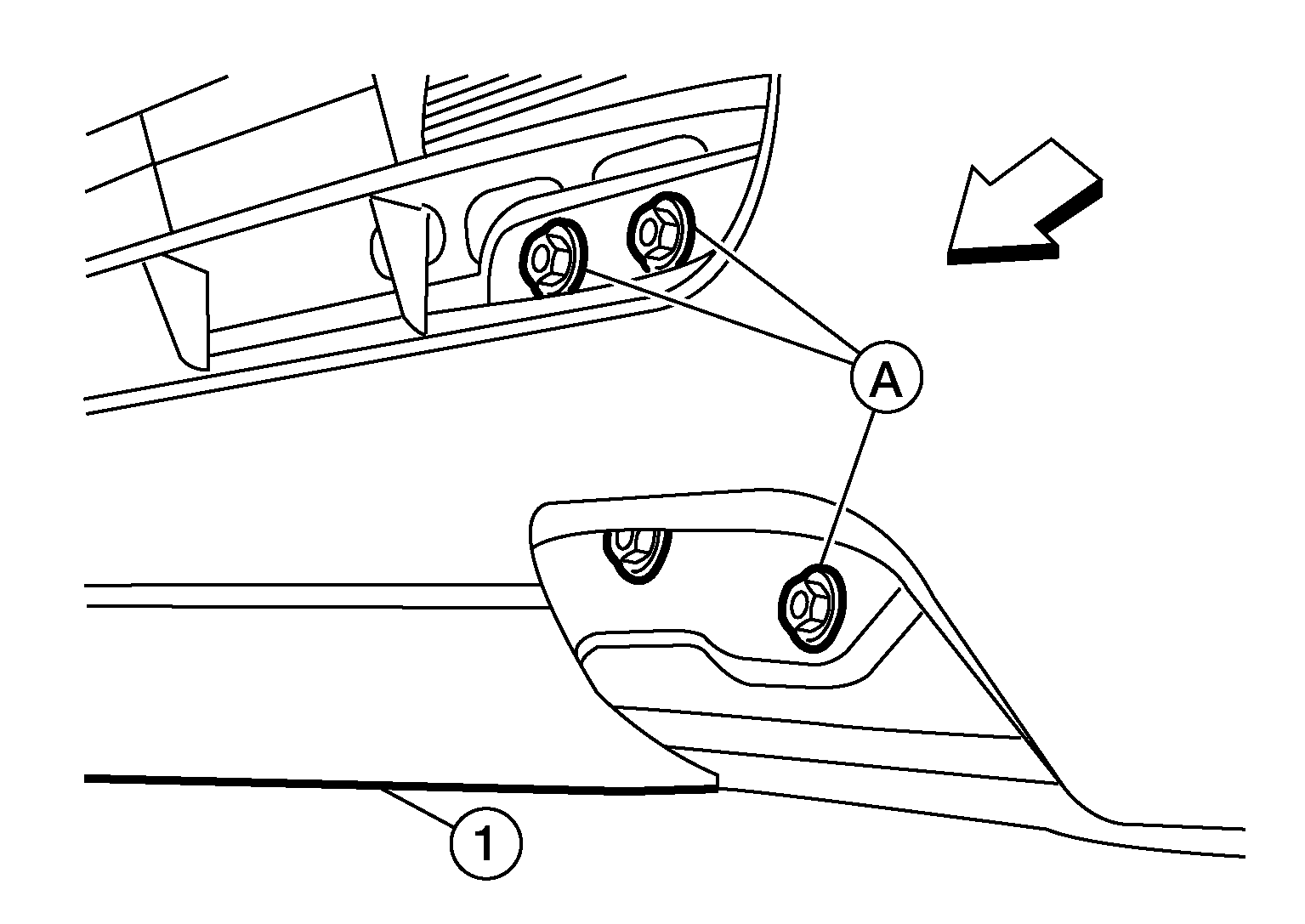

  8. Remove the front bumper bolts (A) and the front bumper (1).
    GNSALKIA2033Z-033Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

  9. Remove the front bumper reinforcement plate bolts (LH/RH) (A) and front bumper reinforcement plates (LH/RH) (1).
    GNSALKIA2034Z-034Courtesy of NISSAN NORTH AMERICA, INC.
