Removal and Installation - Front Bumper: Installation
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|

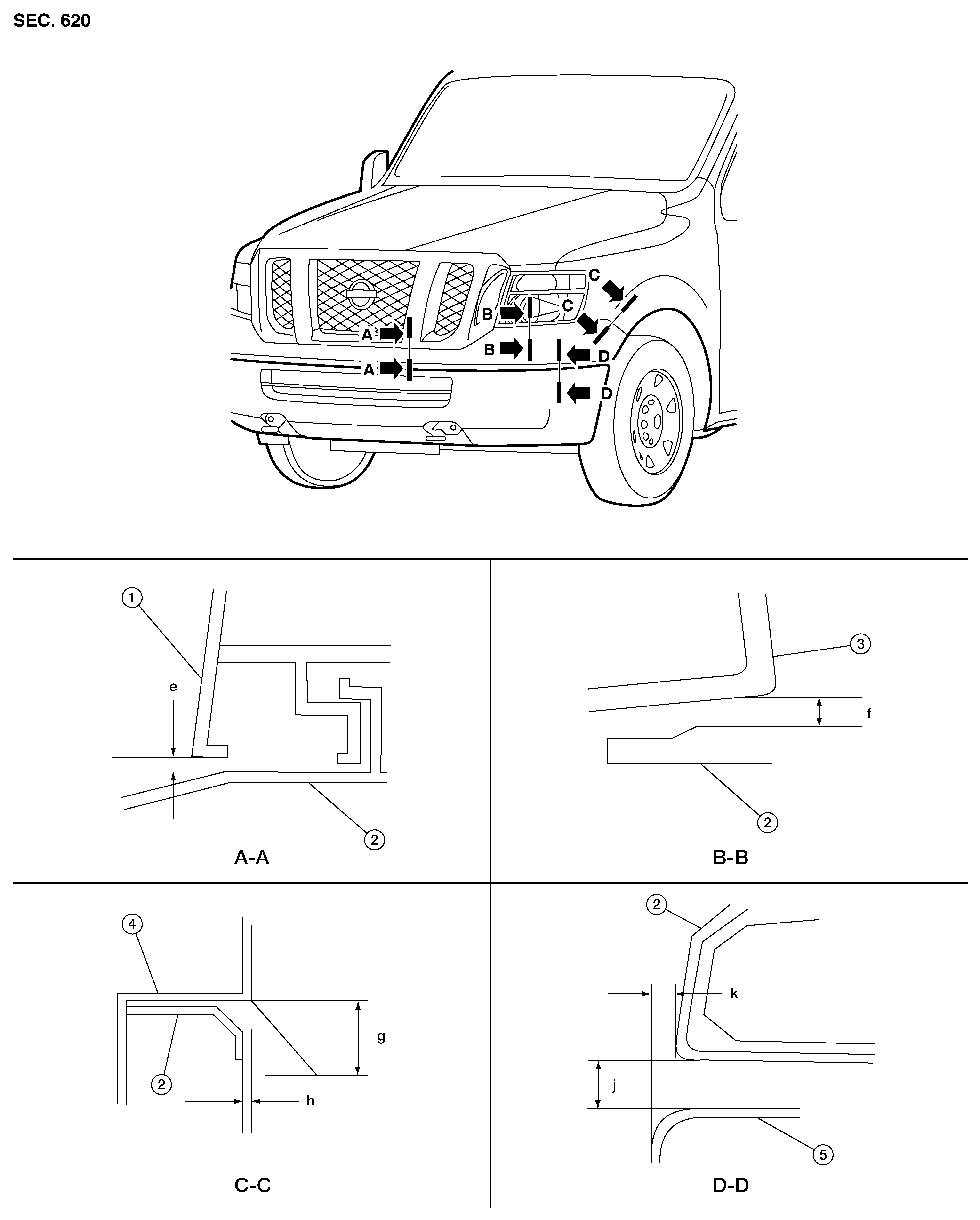

1. |
Front grille |
2. |
Upper front fascia |
3. |
Front combination lamp |
|
4. |
Front fender |
5. |
Front bumper |
Units: mm (in)
|
Portion |
Measurement |
Standard |
Difference (MAX) |
|
|
A-A |
e |
Clearance |
3.0 (0.12) |
+/-1.5 (0.06) |
|
B-B |
f |
Clearance |
3.0 (0.12) |
+/-1.5 (0.06) |
|
C-C |
g |
Clearance |
0.0 (0.00) |
+0.8 (0.03) |
|
C-C |
h |
Surface height |
0.8 (0.03) |
+/-1.0 (0.04) |
|
D-D |
j |
Clearance |
20.0 (0.79) |
+/-5.0 (0.20) |
|
D-D |
k |
Surface height |
0.0 (0.00) |
+/-5.0 (0.20) |
