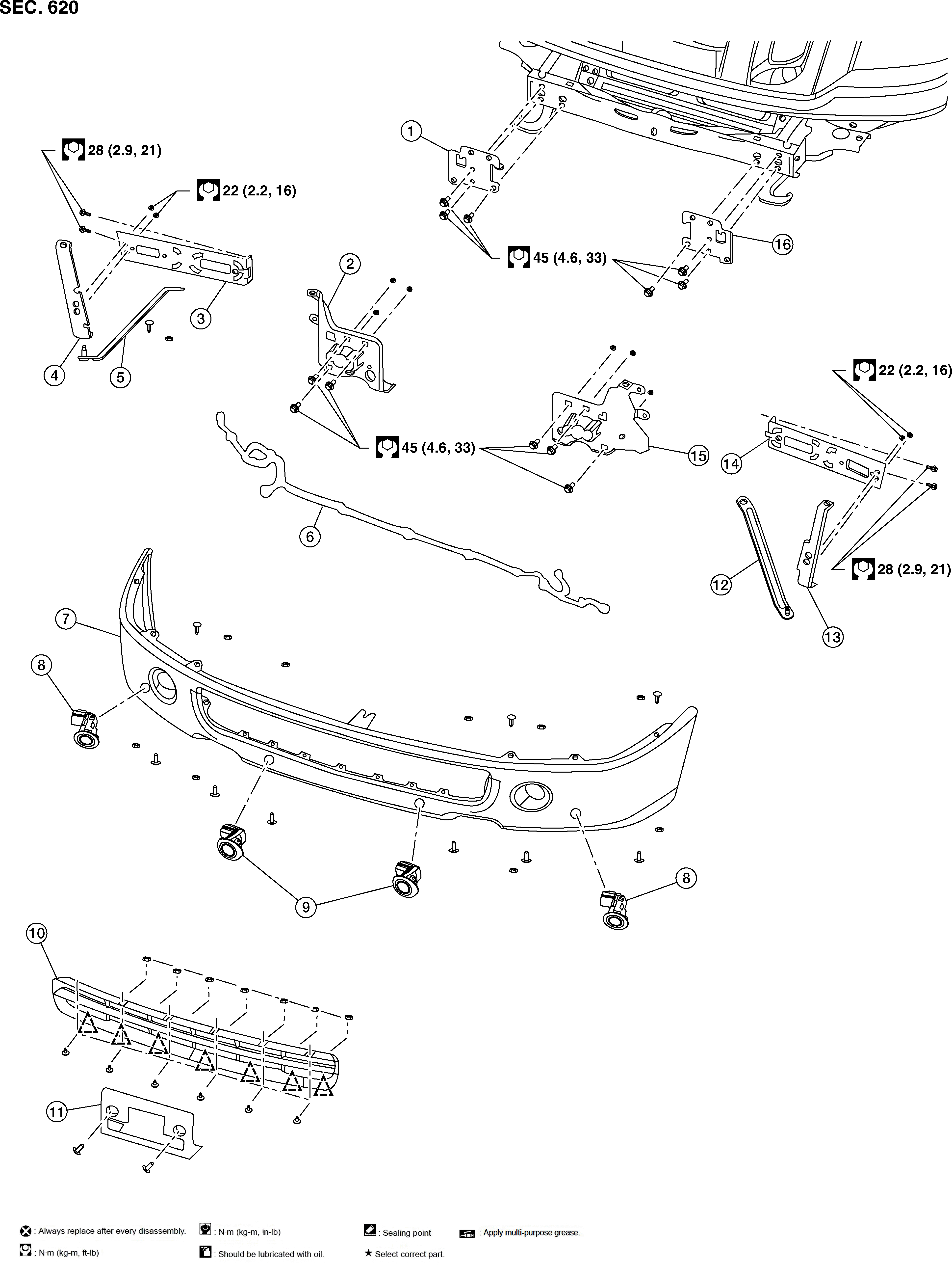

Exploded View - Front Bumper
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Front bumper reinforcement plate (RH) |
2. |
Front bumper bracket (inner RH) |
3. |
Side reinforcement (RH) |
|
4. |
Front bumper bracket (outer RH) |
5. |
Front bumper side bracket (RH) |
6. |
Front sonar sensor harness (if equipped) |
|
7. |
Front bumper |
8. |
Front sonar sensors (outer) (if equipped) |
9. |
Front sonar sensors (inner) (if equipped) |
|
10. |
Front bumper grille |
11. |
License plate bracket |
12. |
Front bumper side bracket (LH) |
|
13. |
Front bumper bracket (outer LH) |
14. |
Side reinforcement (LH) |
15. |
Front bumper bracket (inner LH) |
|
16. |
Front bumper reinforcement plate (LH) |
