Cowl Top Extension

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Remove the cowl top covers (LH/RH).

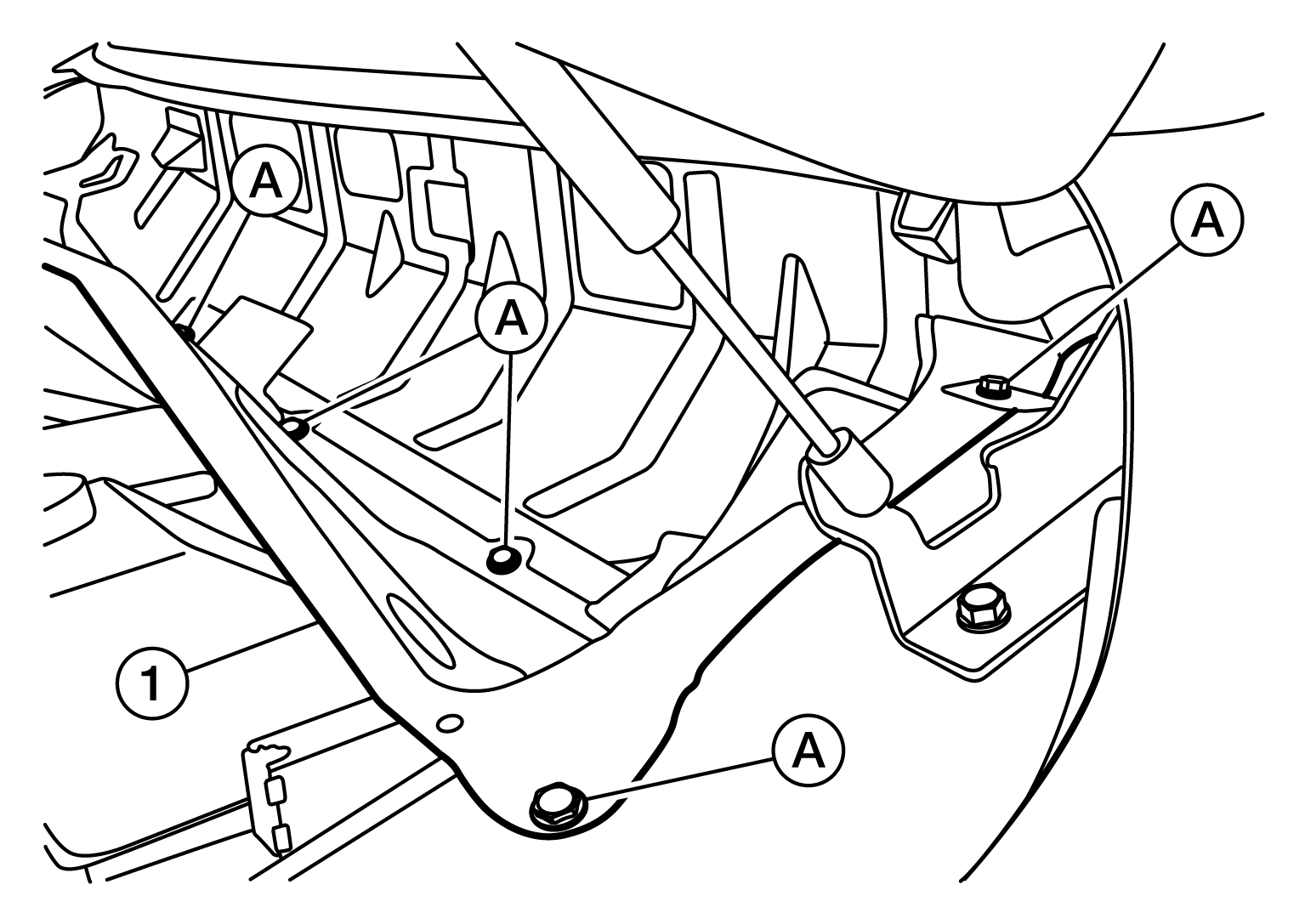

Remove cowl top extension bracket bolts (A) (LH/RH).

Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect the wiper motor harness from the cowl top extension bracket (LH) and remove the cowl top extension brackets (1) (LH/RH).
Remove the wiper motor and connecting rod linkage. Refer to Exploded View .
Remove the drain tube from each side of the cowl top extension.

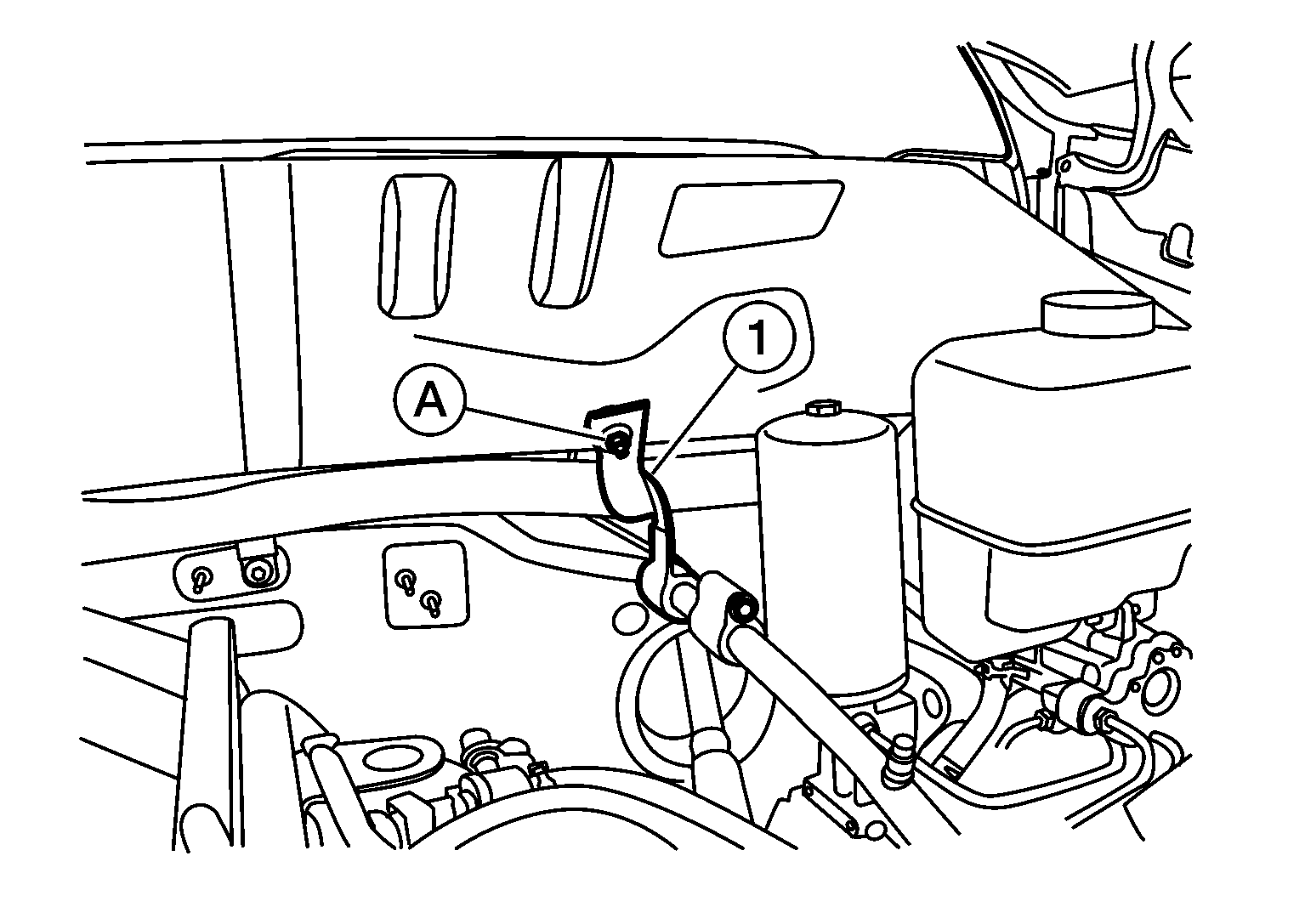

Remove the A/C tube bracket nut (A) and position the A/C tube bracket (1) aside.

Courtesy of NISSAN NORTH AMERICA, INC.

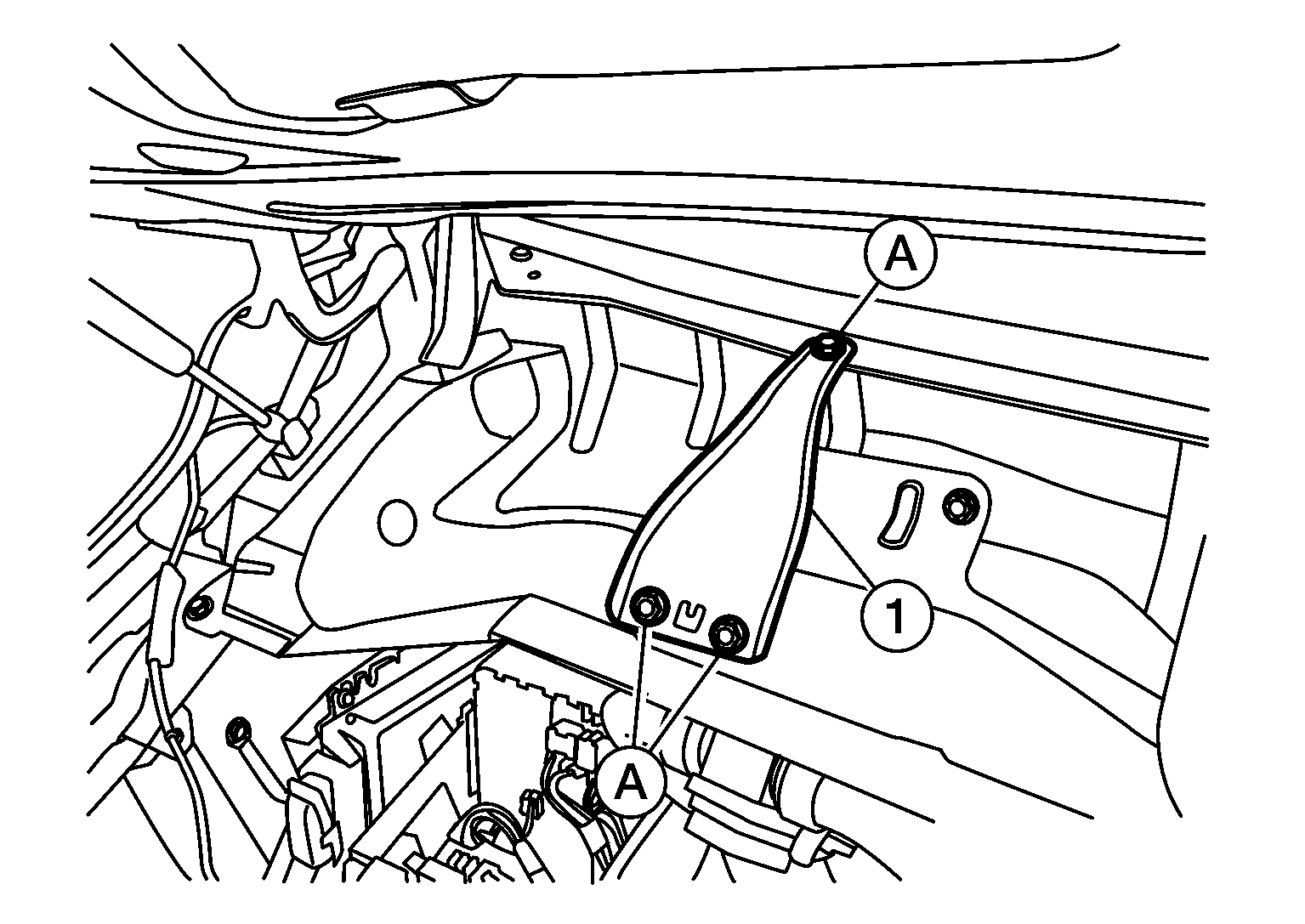

Remove the cowl top extension bolts (A) and the cowl top extension (1).

Courtesy of NISSAN NORTH AMERICA, INC.

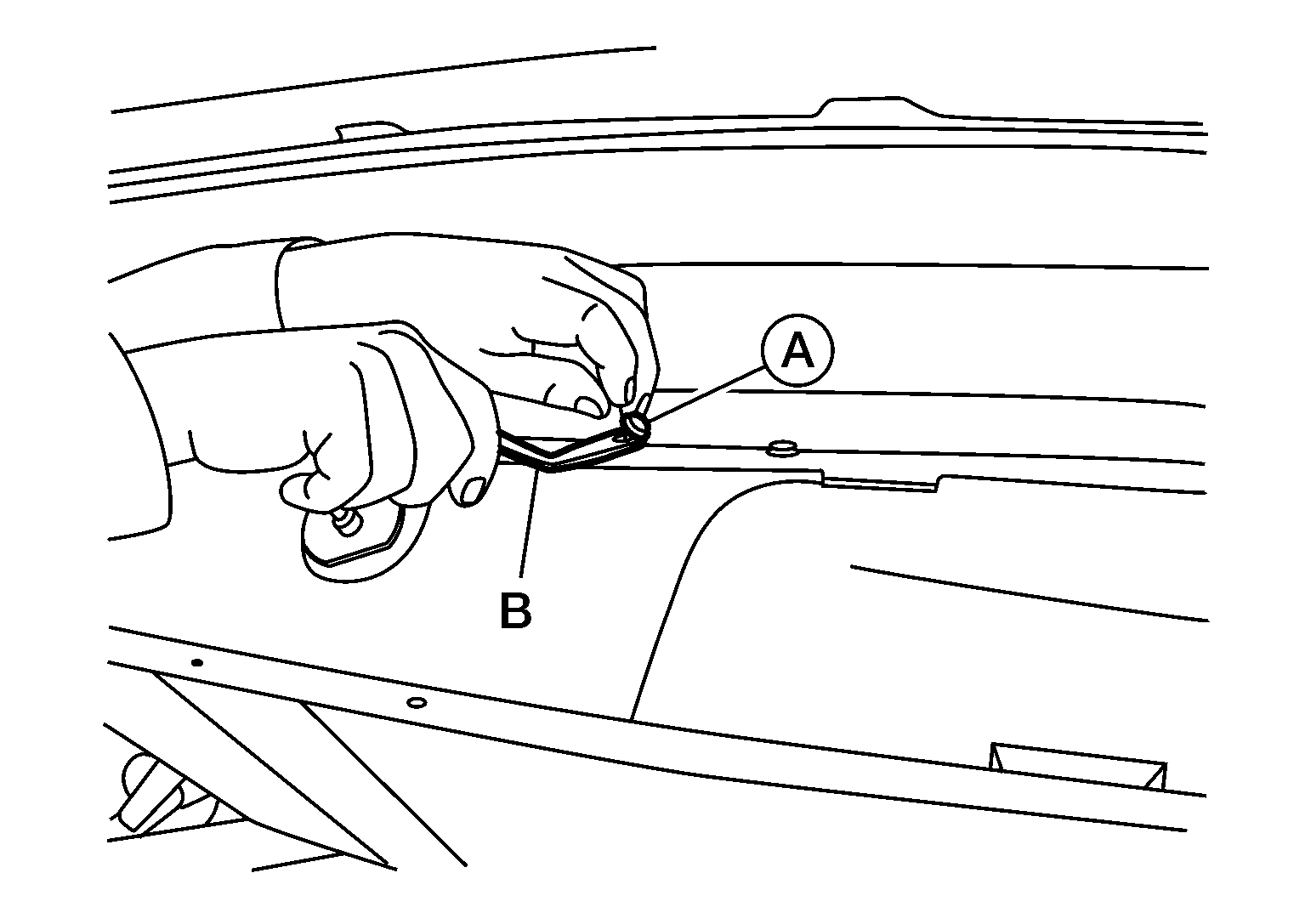

Remove the cowl top cover LH and RH clips (A), using a suitable tool (B).

Courtesy of NISSAN NORTH AMERICA, INC.

Installation

Installation is in the reverse order of removal.
