Cowl Top Covers

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Remove the front wiper arms. Refer to Removal and Installation .
Remove cowl top center seal.
- Release plastic clips on cowl top center seal and remove the seal.

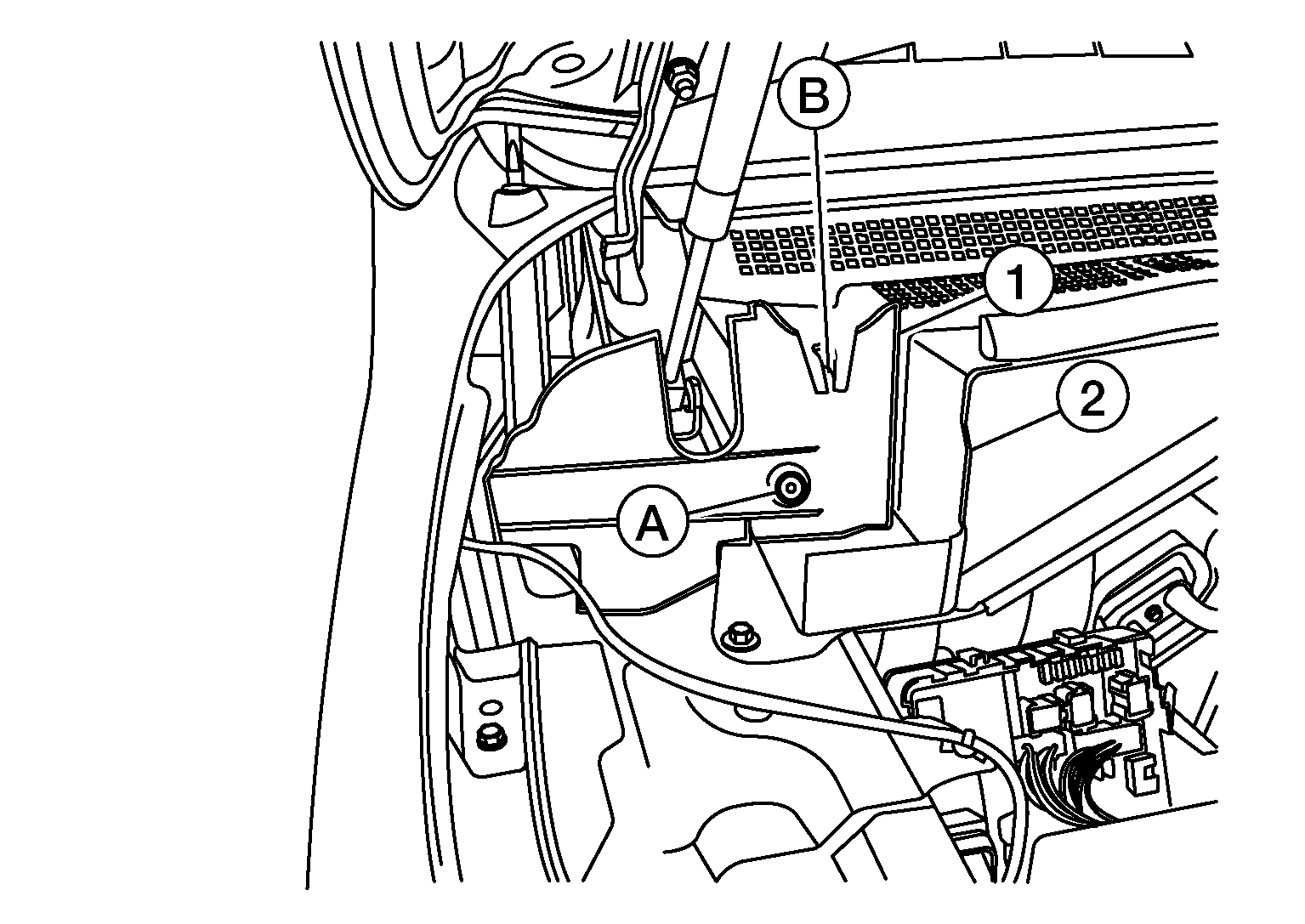

Remove the cowl top side seal (RH).

Courtesy of NISSAN NORTH AMERICA, INC.
1. Remove the cowl top side seal (RH) clip (A).
2. Release the pawl (B) from the cowl top cover (RH) (2) while lifting the cowl top side seal (RH) (1) upward to remove it.

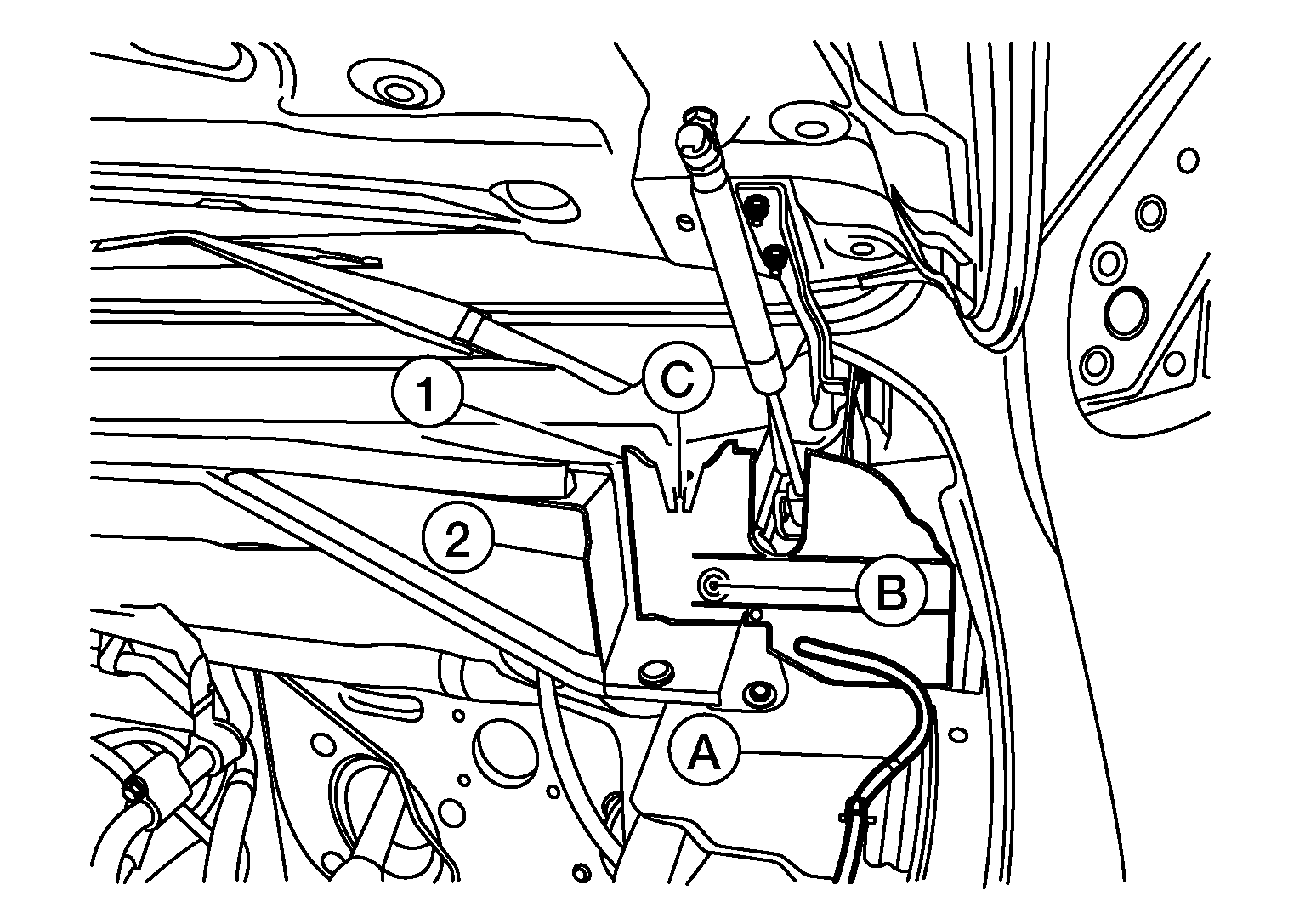

Remove the cowl top side seal (LH).

Courtesy of NISSAN NORTH AMERICA, INC.
1. Disconnect the washer nozzle tube from the main washer reservoir tube connector (A).
2. Remove the cowl top side seal (LH) clip (B).
3. Release the pawl (C) from the cowl top cover LH (2) while lifting the cowl top side seal (LH) (1) upward to remove it.

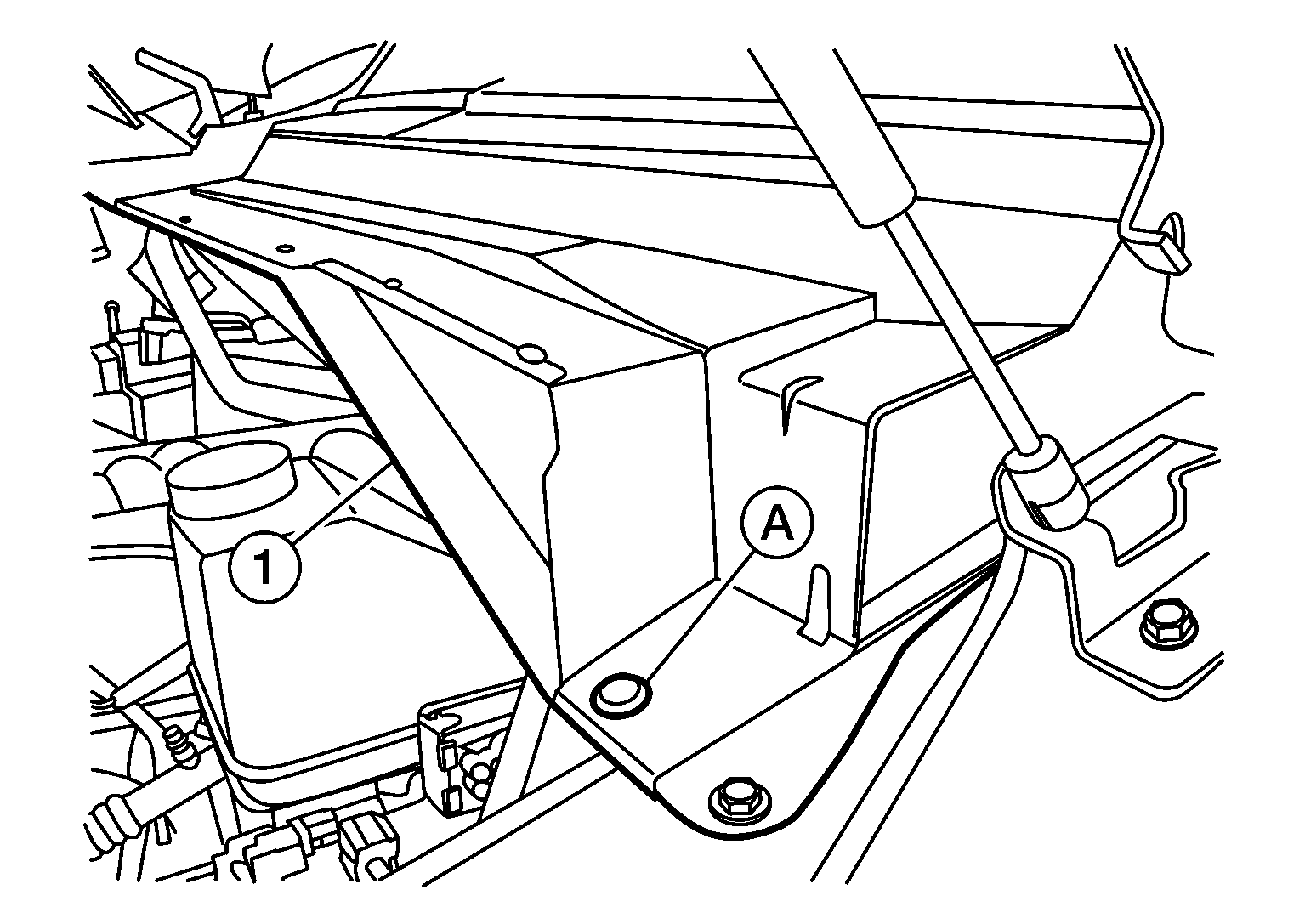

Remove the cowl top covers (LH/RH).

Courtesy of NISSAN NORTH AMERICA, INC.
1. Remove the cowl top covers LH and RH clips (A).
2. Disconnect washer tubes from washer nozzles beneath the cowl top covers (1).
3. Remove the cowl top covers (1).

Installation

Installation is in the reverse order of removal.
