Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Deflate tire. Unscrew transmitter retaining nut and allow transmitter to fall into tire.

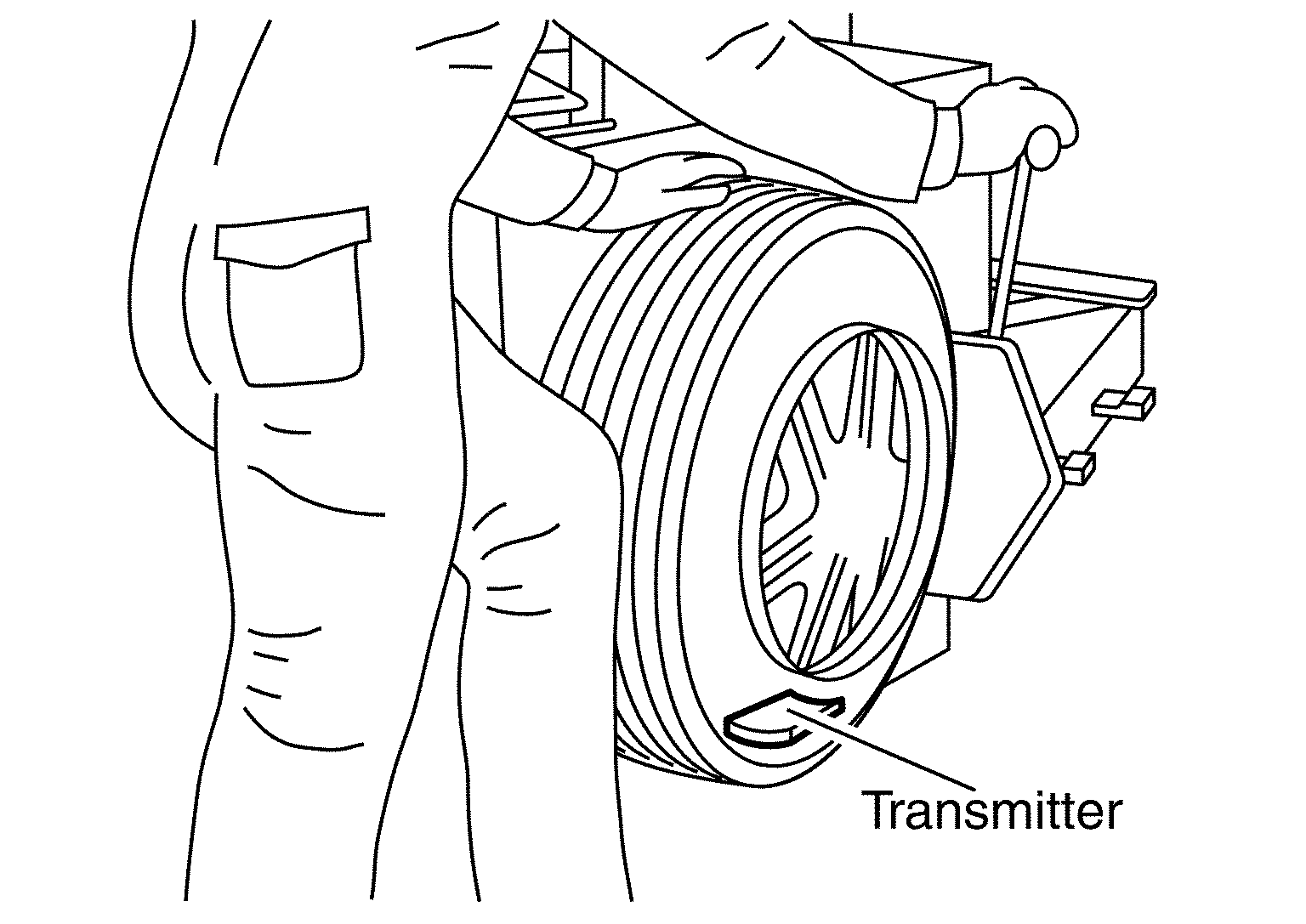

  2. Gently bounce tire so that transmitter falls to bottom of tire. Place on tire changing machine and break both tire beads, ensuring that the transmitter remains at the bottom of the tire.
    G04076605Courtesy of NISSAN NORTH AMERICA, INC.
  3. Turn tire so that valve hole is at bottom and bounce tire so that transmitter (1) is near valve hole. Carefully lift tire onto turntable and position valve hole (and transmitter) 270 deg. from mounting/dismounting head (2).
    G00562785Courtesy of NISSAN NORTH AMERICA, INC.
  4. Lubricate the tire well with a suitable non-silicone lubricant, and remove first side of the tire. Reach inside the tire and remove the transmitter.
    CAUTION: Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and wheel.
