Removal and Installation: Installation

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

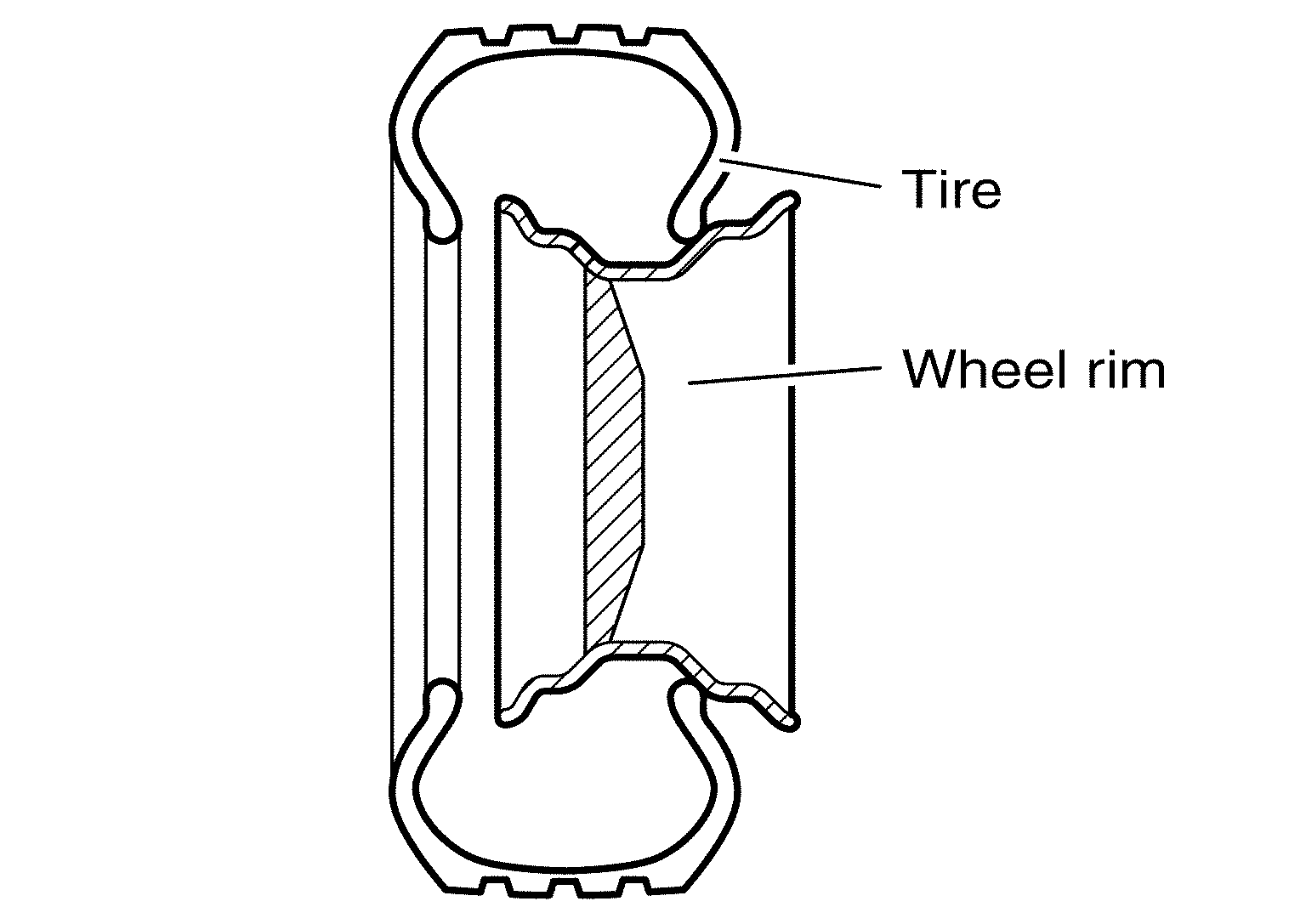

  1. Put first side of tire onto rim.
    G04076607Courtesy of NISSAN NORTH AMERICA, INC.

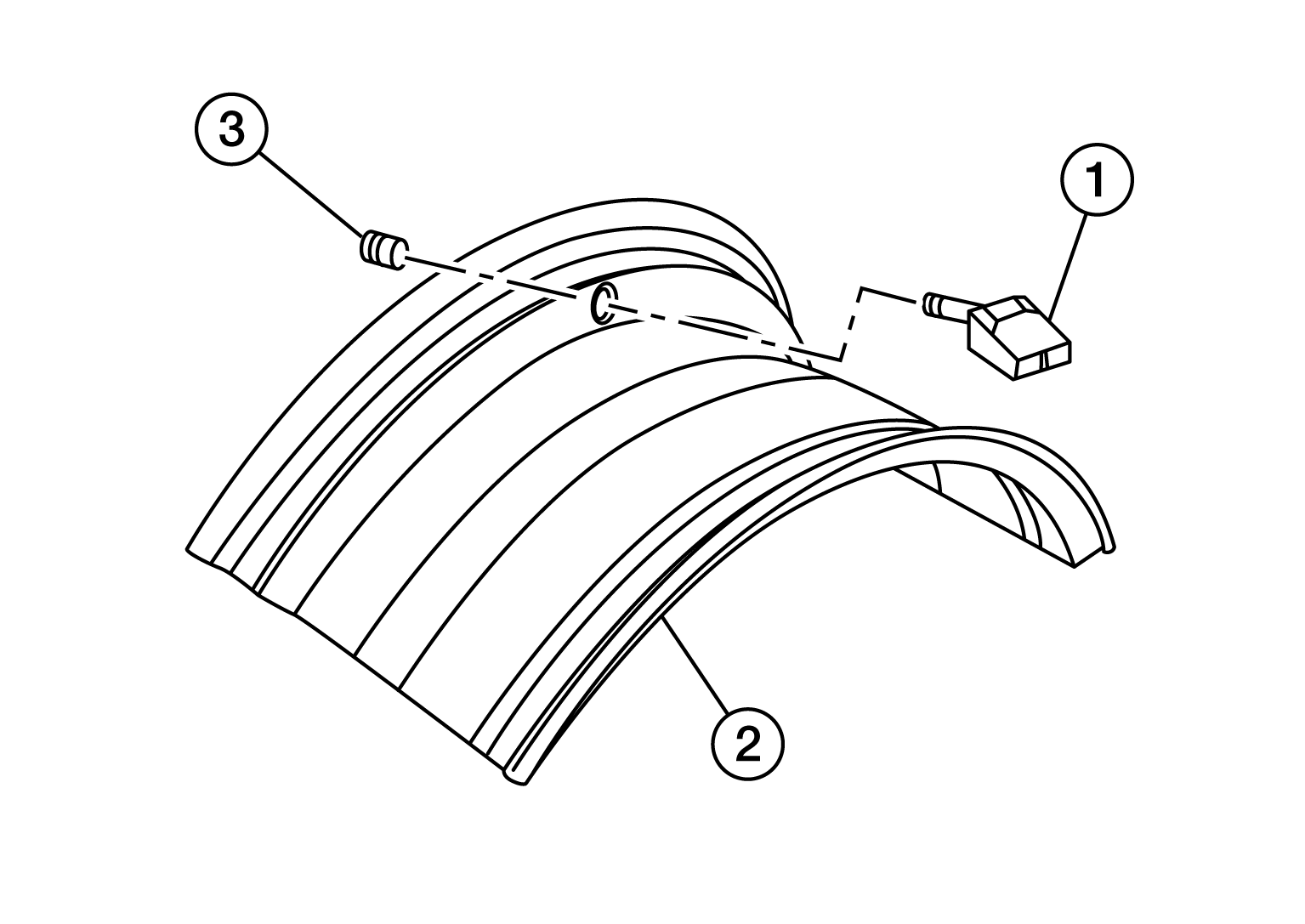

  2. Mount transmitter (1) on rim (2) and tighten nut (3).
    GNSDB122617Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse seal.
  3. Place wheel on turntable of tire machine. Ensure that transmitter (1) is 270 deg. from mounting head (2) when second side of tire is fitted.
    G00562785Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: Do not touch transmitter at mounting head.
  4. Lubricate the tire well with a suitable non-silicone lubricant, and fit second side of tire as normal. Ensure that tire does not rotate relative to rim.
    CAUTION: Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and wheel.
  5. Inflate tire and fit to appropriate wheel position.
  6. Perform the transmitter wake-up operation after replacing transmitter. Refer to Description .
