Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

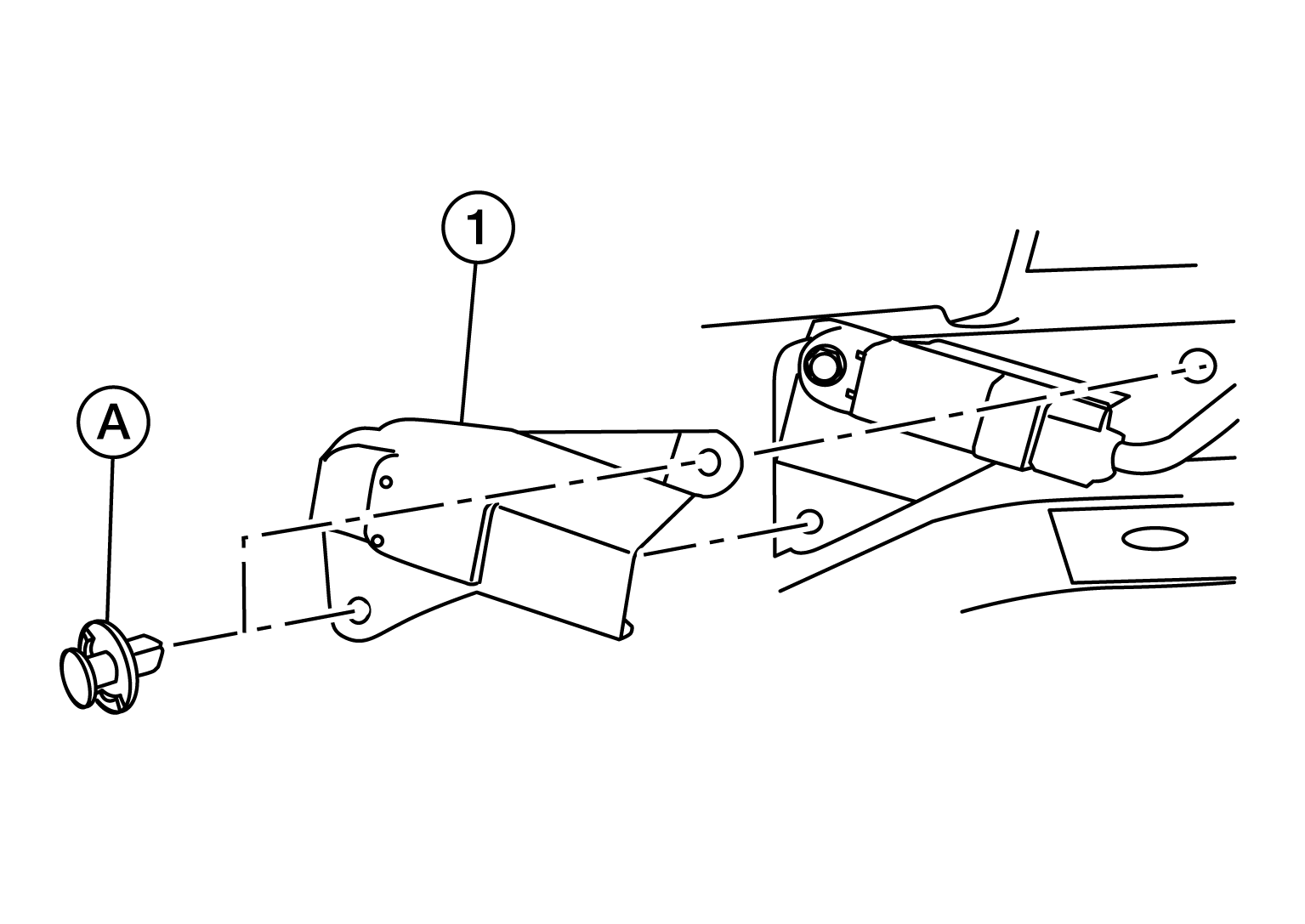

  1. Remove the two clips (A) and the rear tire pressure receiver cover (1).
    GNSDB122353Courtesy of NISSAN NORTH AMERICA, INC.
  2. Disconnect harness connector from the rear tire pressure receiver.
  3. Remove the rear tire pressure receiver bolt.
  4. Remove rear tire pressure receiver.
