Removal and Installation: Removal
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the instrument lower panel LH. Refer to Removal and Installation .
- Disconnect the harness connector from the low tire pressure warning control unit.
- Remove the lighting switch. Refer to Removal and Installation .

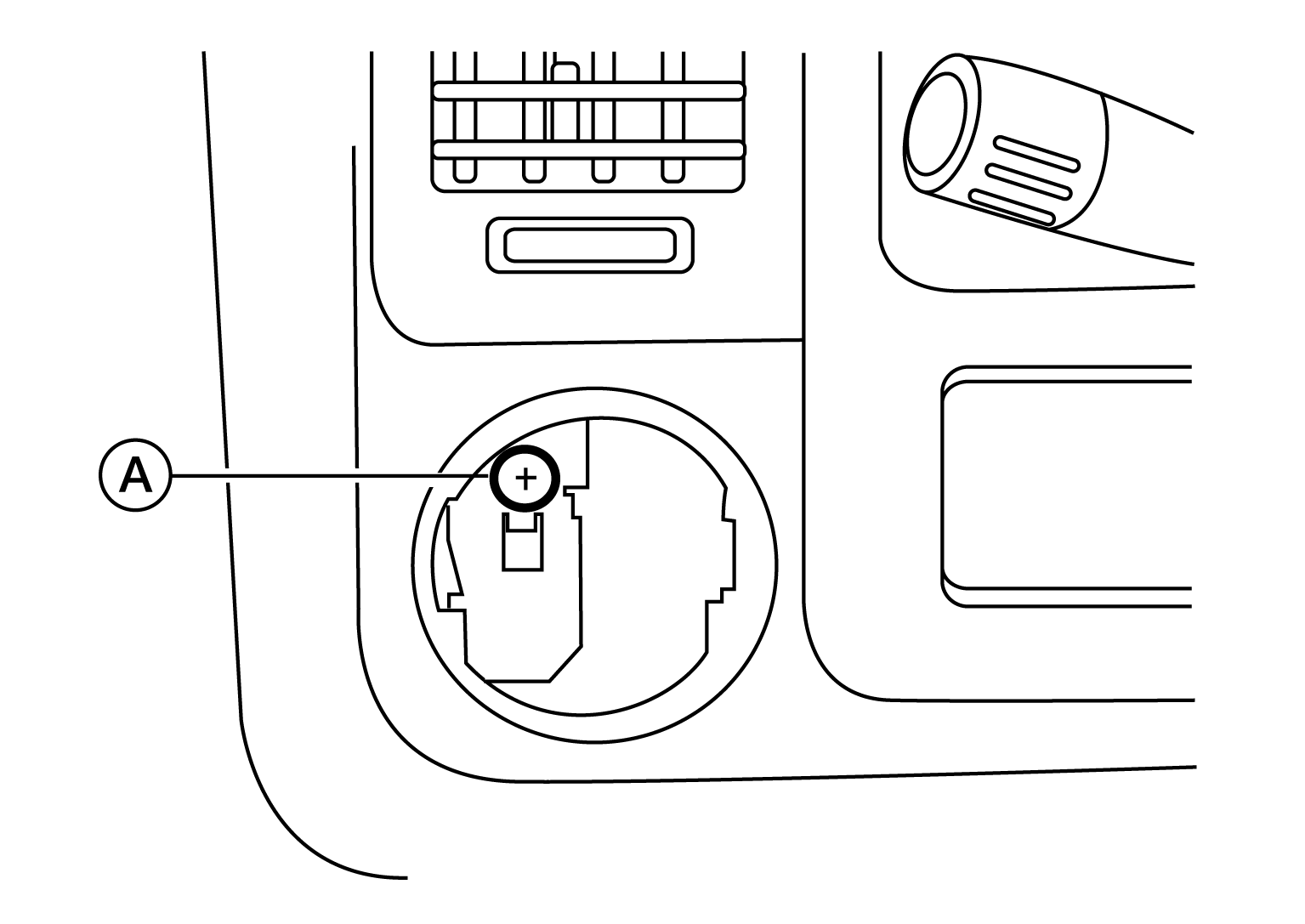

- Remove the low tire pressure warning control unit screw (A), using the access hole that was created by the removal of the lighting switch.
- Remove the low tire pressure warning control unit.
