Component Parts Location

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

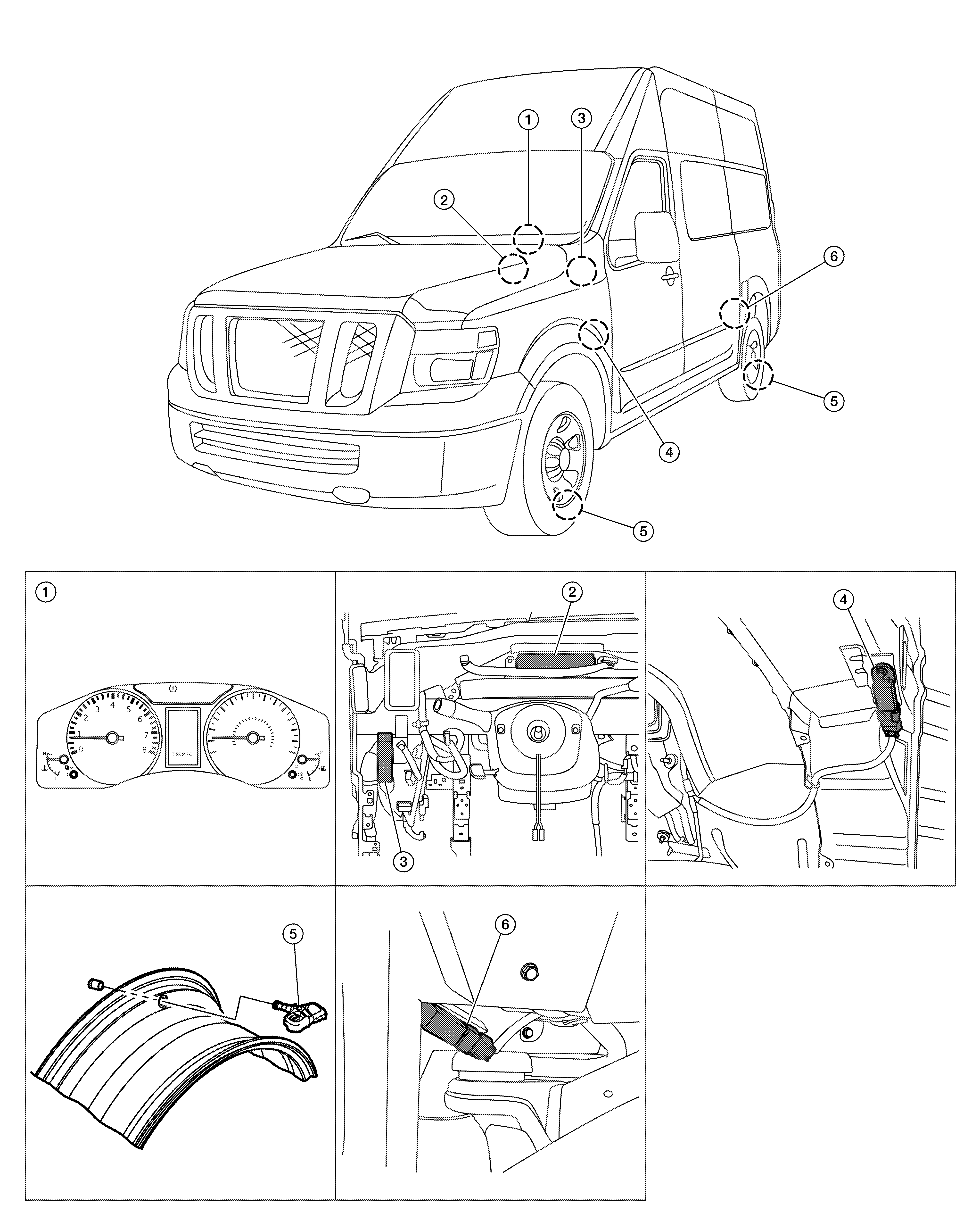

GNSALEIA0067Z-067Courtesy of NISSAN NORTH AMERICA, INC.

1.

Combination meter

2.

BCM

3.

Low tire pressure warning control unit

4.

Tire pressure receiver front LH (RH similar)

5.

Tire pressure sensor

6.

Tire pressure receiver rear LH (RH similar)
