Special Service Tool

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

The actual shape of the tools may differ from those illustrated here.

Tool number

(TechMate No.)

Tool name

Description

--

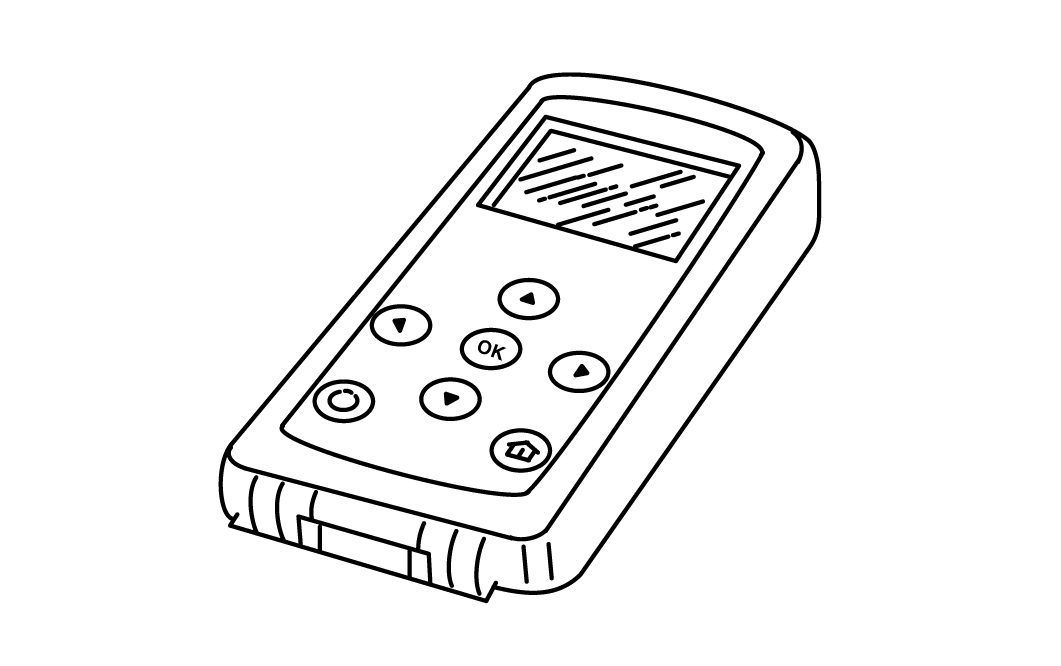

(J-50190)

Signal Tech II

GNSALEIA0131Z-131

Courtesy of NISSAN NORTH AMERICA, INC.

Activate and display TPMS transmitter IDs
Display tire pressure reported by the TPMS transmitter
Read TPMS DTCs
Register TPMS transmitter IDs
Test remote keyless entry keyfob relative signal strength
Compatible with future sensors
Equipped with a display

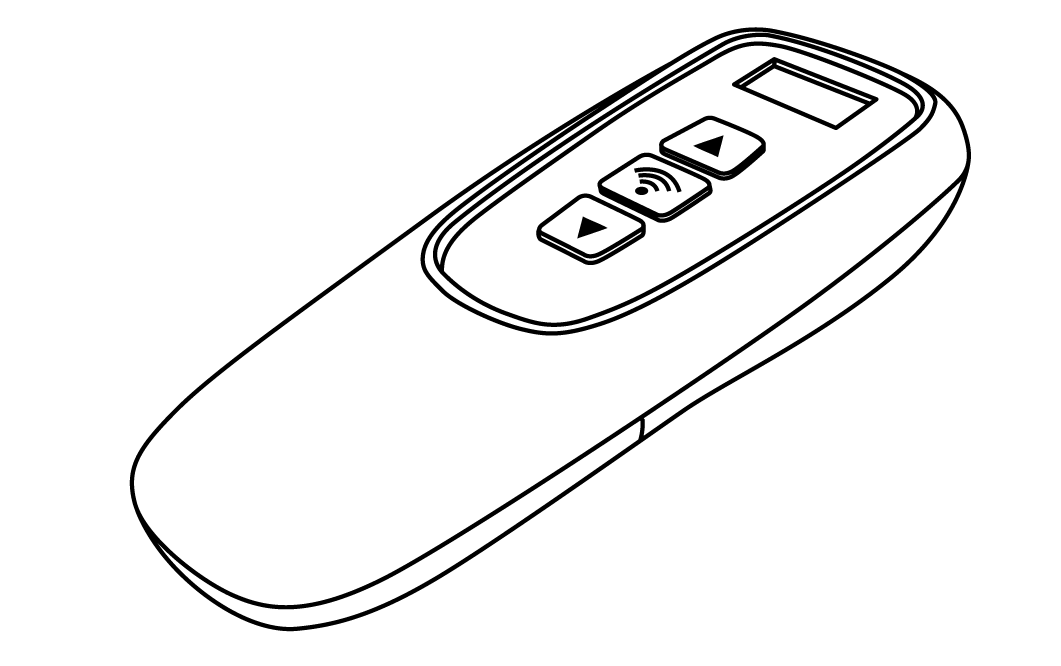

KV48105501

(J-45295-A)

Transmitter activation tool

GNSALEIA0183Z-183

Courtesy of NISSAN NORTH AMERICA, INC.

Activate TPMS transmitter IDs
Compatible with future sensors
Equipped with a display (KV48105501 only)
