Using Combination Meter

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

After rotating the tires, the TPMS sensor position needs to be relearned.

Decrease air pressure for at least 30 seconds continuously for each tire [more than 10 psi (34.5 kPa) within 30 seconds] to place the TPMS system into relearn mode for 30 minutes.

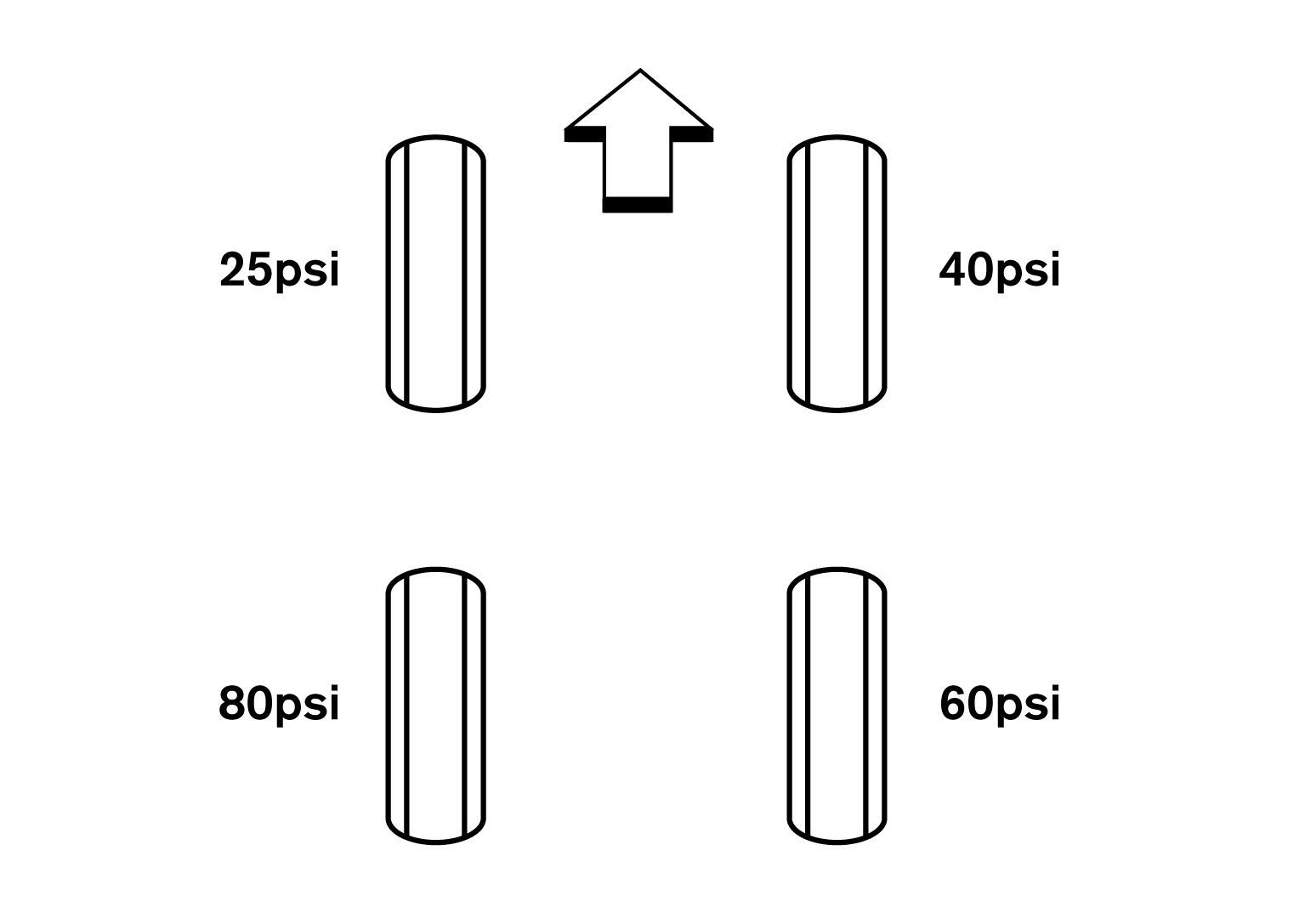

Adjust the tire pressure to the levels shown in the illustration.

Courtesy of NISSAN NORTH AMERICA, INC.
On the combination meter, start the relearn procedure using the INFO knob as follows: SETTINGS->TPMS MENU->RE-LEARN->CONFIRM->LEARNING.
The TPMS warning lamp flashes continuously when the system is relearning the tire positions.

NOTE: The relearn procedure can be cancelled by placing the ignition switch in the OFF position or by driving the vehicle over 3 mph (5 km/h).
When the relearn procedure is successfully completed:
- the message "RELEARN OK" is displayed in the combination meter.
- the hazard lamps flash once.
- the horn chirps once.
- the combination meter chimes 3 times
Adjust the tire pressures to the cold tire pressure specification. Refer to Tire .
- If the tire pressures are correct, the TPMS warning lamp turns OFF.
- If the tires are not inflated to the correct cold tire pressure, the TPMS warning lamp illuminates. Recheck the tire pressures and adjust as necessary.

If a different message is displayed or if the relearn procedure is stopped before completion, the new tire positions are not learned. Repeat the complete relearn procedure to reset the tire positions.

If "NOT READY->SEE MANUAL" is displayed, the tire sensors did not enter learn mode properly. Decrease the air pressure for at least 30 seconds continuously for each tire [more than 10 psi (34.5 kPa) within 30 seconds] to enter the proper mode. If the tire pressure cannot be reduced at least 10 psi (34.5 kPa) to adjust them to the relearn pressures, inflate the tires to at least 10 psi (34.5 kPa) above the specified pressures. Readjust the tire pressures according to the learn mode in step 2 and then select TPMS MENU->RE-LEARN->CONFIRM from the combination meter SETTINGS menu to complete the relearn procedure.

If "INCOMPLETE->SEE MANUAL" is displayed, the system could not detect the specific tire pressures shown in the learn mode diagram in step 2. Ensure each tire is set to its proper pressure according to the diagram and select TPMS MENU->RE-LEARN->CONFIRM from the combination meter SETTINGS menu to complete the relearn procedure.

If the relearn procedure does not work, check the following and retry the procedure:

Devices which emit electronic interference should be turned OFF before starting the relearn procedure. The interference may prevent the system from learning the new tire positions. Turn OFF or remove sources of electrical interference. If necessary, move the vehicle to another location, then perform the complete relearn procedure to reset the tire positions.
Use an air pump that is capable of inflating the tires to the required pressure specifications. The air pump must be capable of inflating a tire at least 10 psi (34.5 kPa) in 30 seconds.
If the reset TPMS function is unintentionally selected, place the ignition switch in the OFF position, then to the ON position to end the relearn procedure.
If the vehicle is not recognizing the new tire pressure levels, move the vehicle forward 40 inches (1 meter). Place the ignition switch in the OFF position, then to the ON position. Perform the relearn procedure beginning at step 1. Make sure that the tire pressures are increased or decreased at least 10 psi (34.5 kPa).
