TPMS Registration With Signal Tech II Tool [- (J-50190)]

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The Signal Tech II must be updated with the newest software version in order to perform the below procedures. The Signal Tech II software updates can only be downloaded from a CONSULT unit with ASSIST. Other versions of ASSIST will not show the updates.

SYMBOL With CONSULT

  1. Adjust the tire pressure for all tires to the recommended value. Refer to Tire .
  2. Turn the ignition switch ON.
  3. Using CONSULT, select "Work support" in AIR PRESSURE MONITOR. Then, select "ID REGIST."
  4. Select "Start" on "ID REGIST" screen.
  5. Turn on the Signal Tech II tool [- (J-50190)].

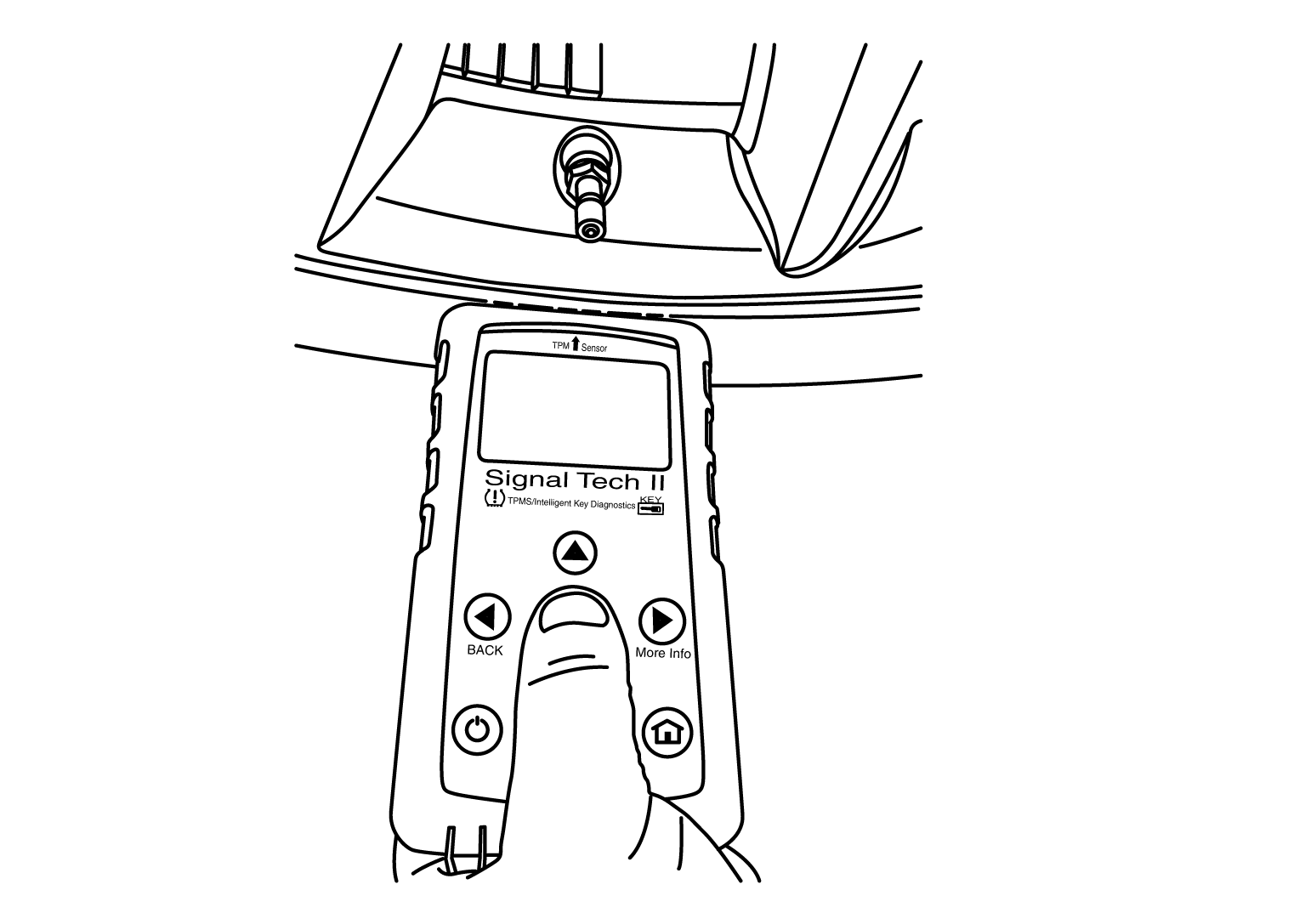

  6. Hold the Signal Tech II against the side of the left front tire, near the valve stem.
    GNSALEIA0177Z-177Courtesy of NISSAN NORTH AMERICA, INC.
  7. With the tool held at a 0 to 15 degree angle to the tire, select "Activate Sensor" from the main menu, then press and release the "OK" button to activate the sensor. Once the sensor is activated, the vehicle parking lamps will flash and the sensor ID will appear on the CONSULT screen.
  8. Repeat steps 6 and 7 for the remaining tires in this order: right front, right rear and left rear.
  9. When ID registration is complete, check the following pattern at each wheel.

    Sequence

    ID registration position

    Turn signal lamp

    CONSULT

    1

    Front LH

    2 blinks

    "Yet (red)"

    "Done (green)"

    2

    Front RH

    3

    Rear RH

    4

    Rear LH
  10. Once all sensors have been activated, select "End" on the CONSULT to finish ID registration.
  11. Test drive the vehicle to ensure that the TPMS lamp is OFF and no warning messages are present.

SYMBOL Without CONSULT

  1. Adjust the tire pressure for all tires to the recommended value. Refer to Tire .
  2. Turn on the Signal Tech II tool [- (J-50190)] and select "TPMS Check" from the main menu.
  3. Select vehicle model and year.
  4. When prompted, hold the Signal Tech II against the side of the left front tire, near the valve stem.
    GNSALEIA0177Z-177Courtesy of NISSAN NORTH AMERICA, INC.
  5. With the tool held at a 0 to 15 degree angle to the tire, press and release the "OK" button to activate the sensor. Once the sensor is activated, the tool will sound a tone and the tire pressure will be displayed.
  6. Repeat steps 4 and 5 for the remaining tires in this order: right front, right rear and left rear.
  7. When prompted, connect the tool to the data link connector. The tool will connect to the BCM, read the VIN, read sensor IDs and check for TPMS DTCs. Along with DTCs detected, one of the following will be displayed next to each wheel:
    • N/A - Not applicable because no ID found by the tool
    • OK - Wheel and sensor are in original position
    • NEW - New ID found compared to BCM
    • RT - Wheel has been rotated
    • Low Press - Low tire pressure
  8. If no DTC is present or the repair has been completed, press the "OK" button to register the IDs and clear DTCs.
  9. Test drive the vehicle to ensure that the TPMS lamp is OFF and no warning messages are present.
  10. Print a Signal Tech II Audit Report for your records. Refer to the Signal Tech II User Guide for instructions.
