Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument lower panel LH. Refer to Removal and Installation .
  2. Remove side ventilator grille (LH). Refer to Removal and Installation .

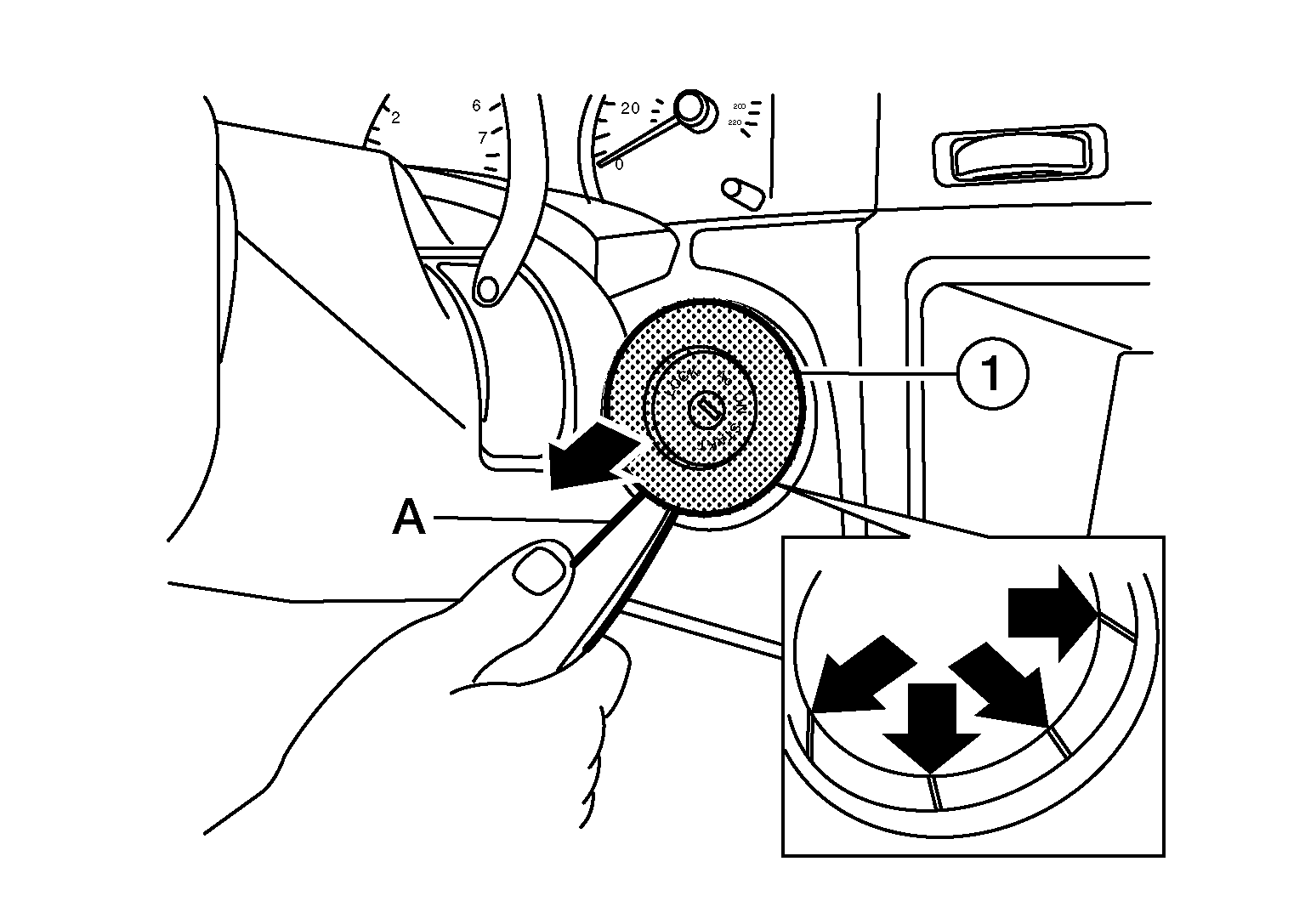

  3. Release the pawls by pulling rearward using a suitable tool (A), then remove key cylinder escutcheon (1) from cluster lid A.
    GNSALJIA0619Z-619Courtesy of NISSAN NORTH AMERICA, INC.

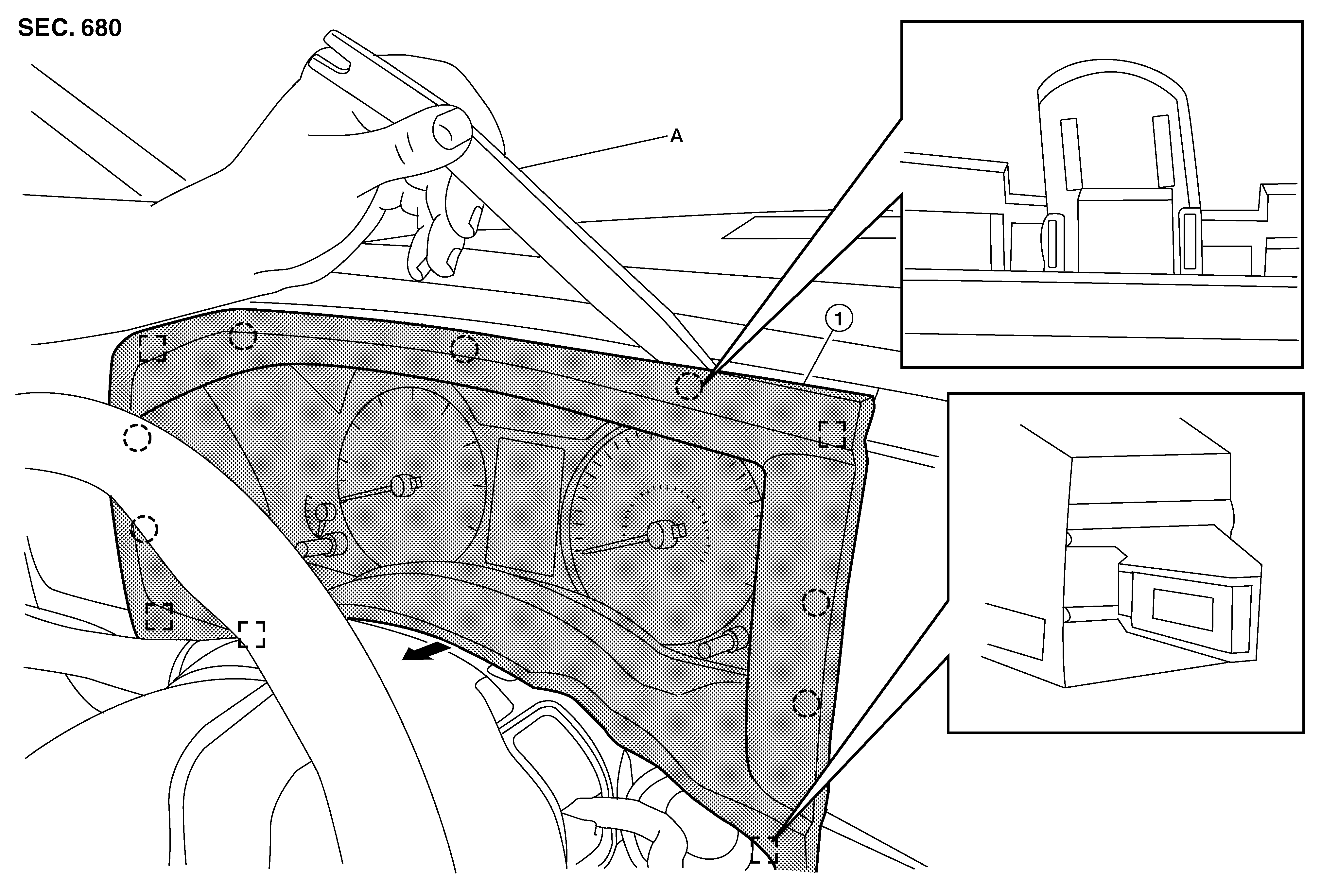

  4. Release the metal clips and pawls using a suitable tool (A), then pull cluster lid A rearward.
    GNSDB119449Courtesy of NISSAN NORTH AMERICA, INC.

    1.

    Cluster lid A

    A.

    Suitable tool

    SYMBOL

    Metal clip

    SYMBOL

    Pawl
  5. Disconnect harness connectors (if equipped) from cluster lid A then remove.
