Component Function Check

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK OVERALL FUNCTION

    SYMBOL With CONSULT

    1. Start engine and warm it up to normal operating temperature.
    2. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode of "ENGINE" using CONSULT.

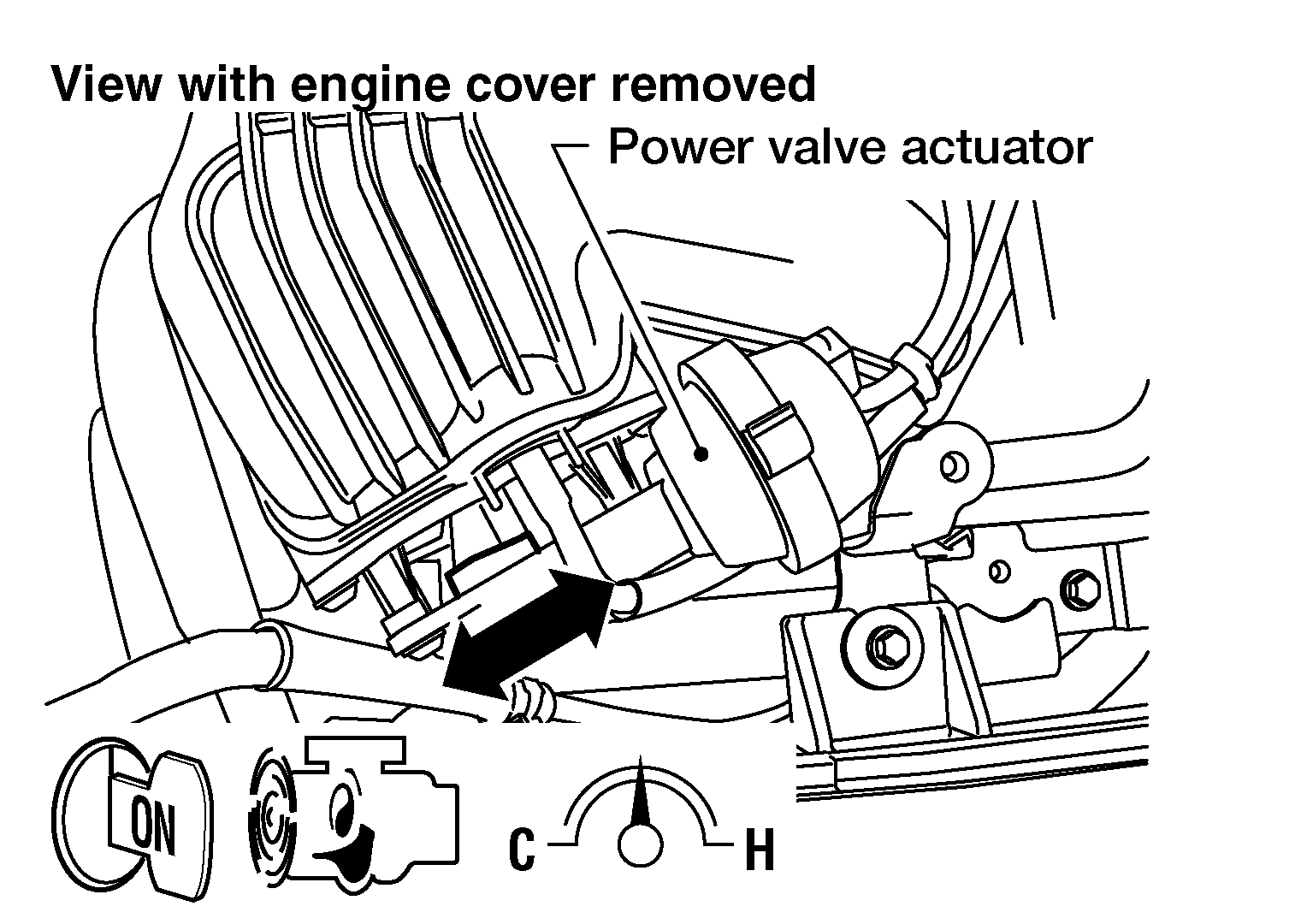

    3. Turn VIAS control solenoid valve "ON" and "OFF", and make sure that power valve actuator rod moves.
      G04148666Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL Without CONSULT

    1. Start engine and warm it up to normal operating temperature.
    2. Rev engine up to between 2, 200 and 3, 300 rpm and make sure that power valve actuator rod moves.
      G04148666Courtesy of NISSAN NORTH AMERICA, INC.

    Is the inspection result normal?

    YES

    INSPECTION END

    NO

    Proceed to DTC Diagnosis Procedure .
