Component Inspection
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK FUEL PUMP
- Turn ignition switch OFF.
- Disconnect "fuel level sensor unit and fuel pump" harness connector. Refer to Component Parts Location .

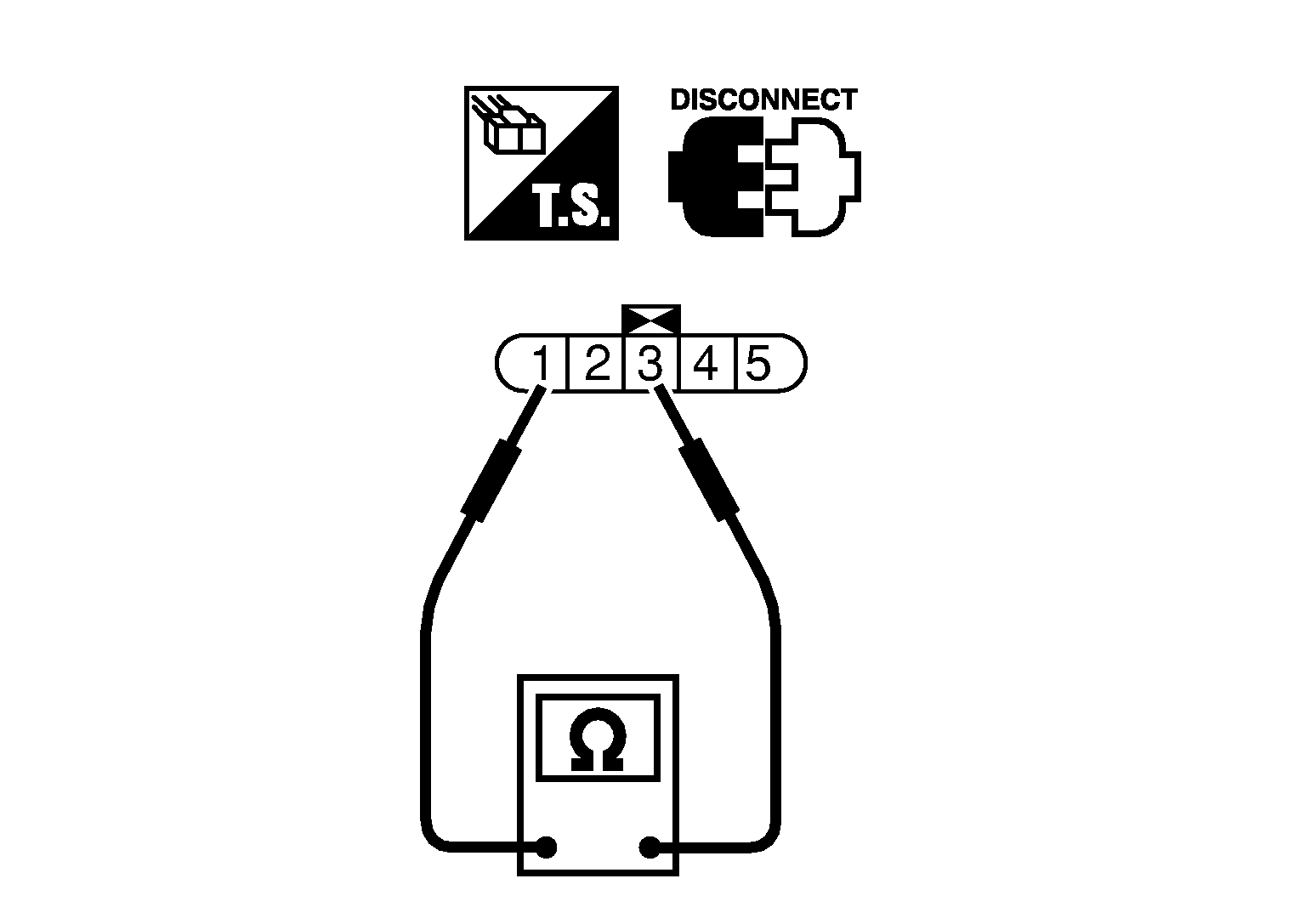

- Check resistance between "fuel level sensor unit and fuel pump" terminals as follows.
Fuel pump
Resistance
+
-
Terminals
1
3
0.2 - 5.0 [Ohm at 25 deg.C (77 deg.F)]
Is the inspection result normal?
YES
INSPECTION END
NO
Replace fuel level sensor unit and fuel pump. Refer to Removal and Installation - VQ40DE .
