Component Inspection (Stop Lamp Switch)
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK STOP LAMP SWITCH-1
- Turn ignition switch OFF.
- Disconnect stop lamp switch harness connector.

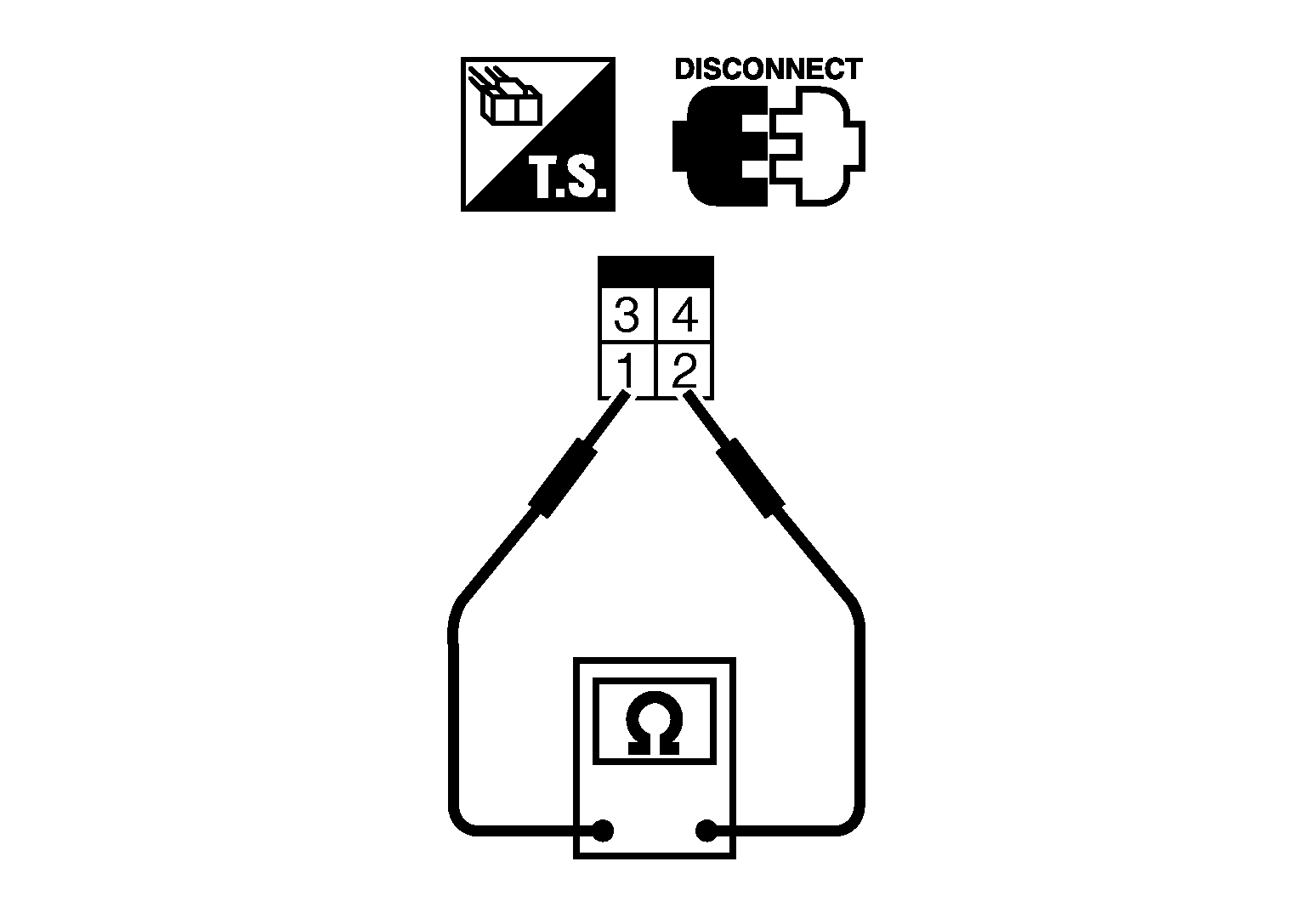

- Check the continuity between stop lamp switch terminals as per the following conditions.
Stop lamp switch
Condition
Continuity
+
-
Terminals
1
2
Brake pedal
Fully released
Not existed
Slightly depressed
Existed
Is the inspection result normal?
YES
INSPECTION END
NO
GO TO 2.
- CHECK STOP LAMP SWITCH-2
- Adjust stop lamp switch installation. Refer to Inspection and Adjustment .
- Check the continuity between stop lamp switch terminals as per the following conditions.
Stop lamp switch
Condition
Continuity
+
-
Terminals
1
2
Brake pedal
Fully released
Not existed
Slightly depressed
Existed
Is the inspection result normal?
YES
INSPECTION END
NO
Replace stop lamp switch. Refer to Exploded View .
