Component Inspection

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ASCD STEERING SWITCH

Disconnect spiral cable harness connector.

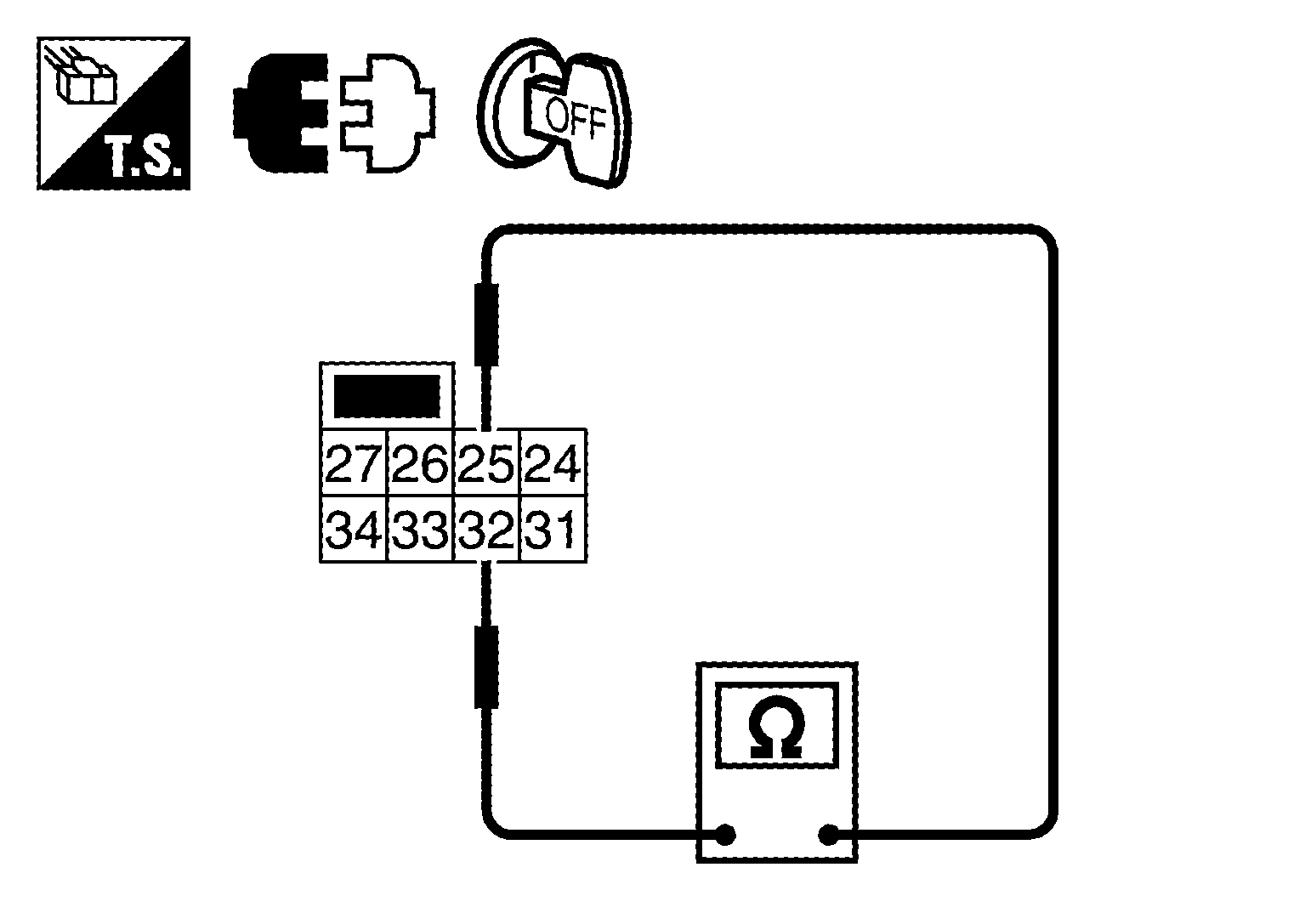

Check the resistance between spiral cable harness connector terminals as per the following conditions.

Courtesy of NISSAN NORTH AMERICA, INC.

Spiral cable			Condition	Resistance (Approx.)
Connector	+	-
	Terminals
M30	25	32	MAIN switch: Pressed	0 Ohm
			CANCEL switch: Pressed	250 Ohm
			COAST/SET switch: Pressed	660 Ohm
			ACCEL/RES switch: Pressed	1, 480 Ohm
			All ASCD steering switches: Released	4, 000 Ohm

Is the inspection result normal?

YES

INSPECTION END

Replace ASCD steering switch. Refer to Exploded View .
