CAN Signal Communications

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Each control unit of the CAN communication system transmits signals through the CAN communication control circuit included in the control unit and receives only necessary signals from each control unit to perform various kinds of control.

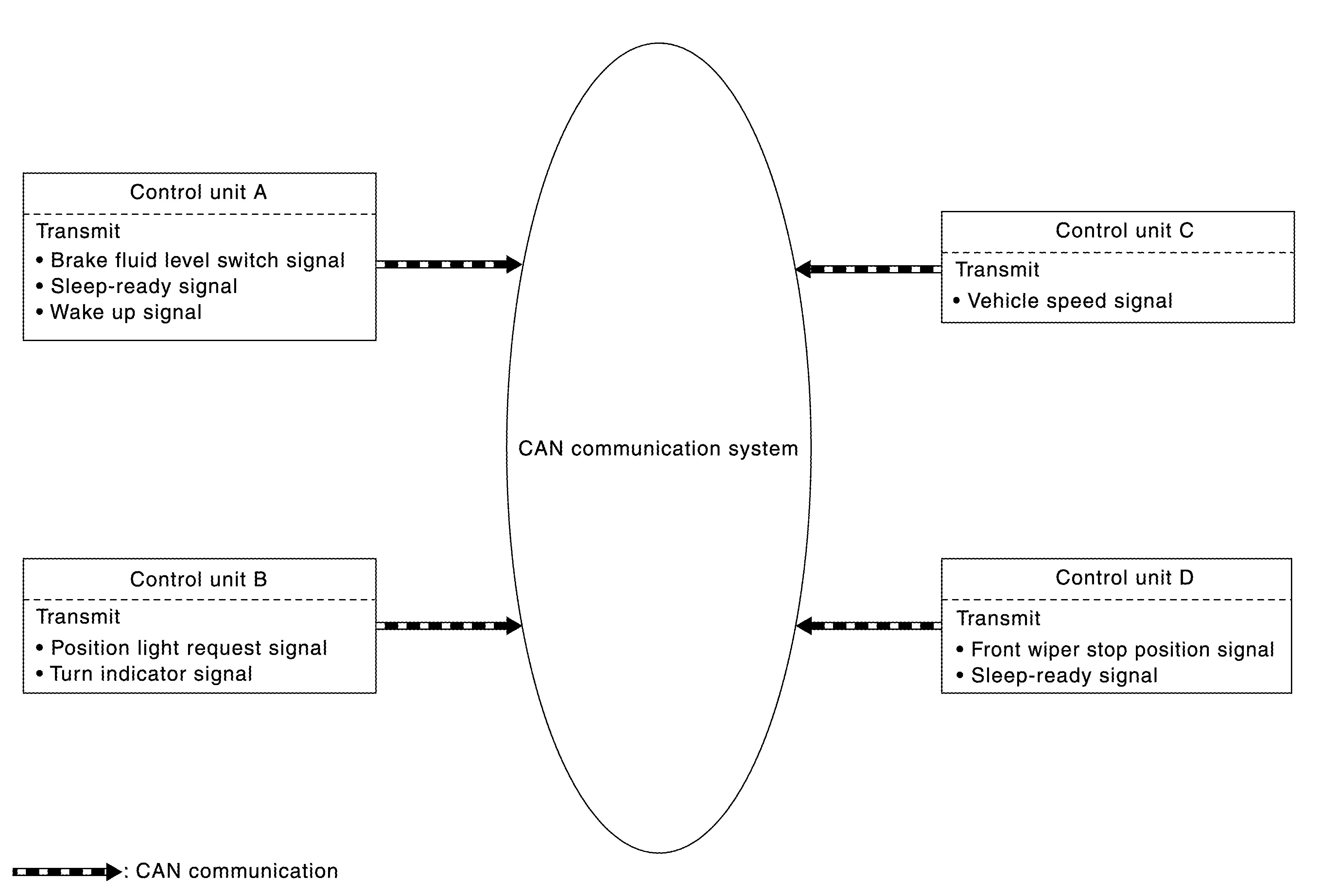

Example: Transmitted signals

Courtesy of NISSAN NORTH AMERICA, INC.

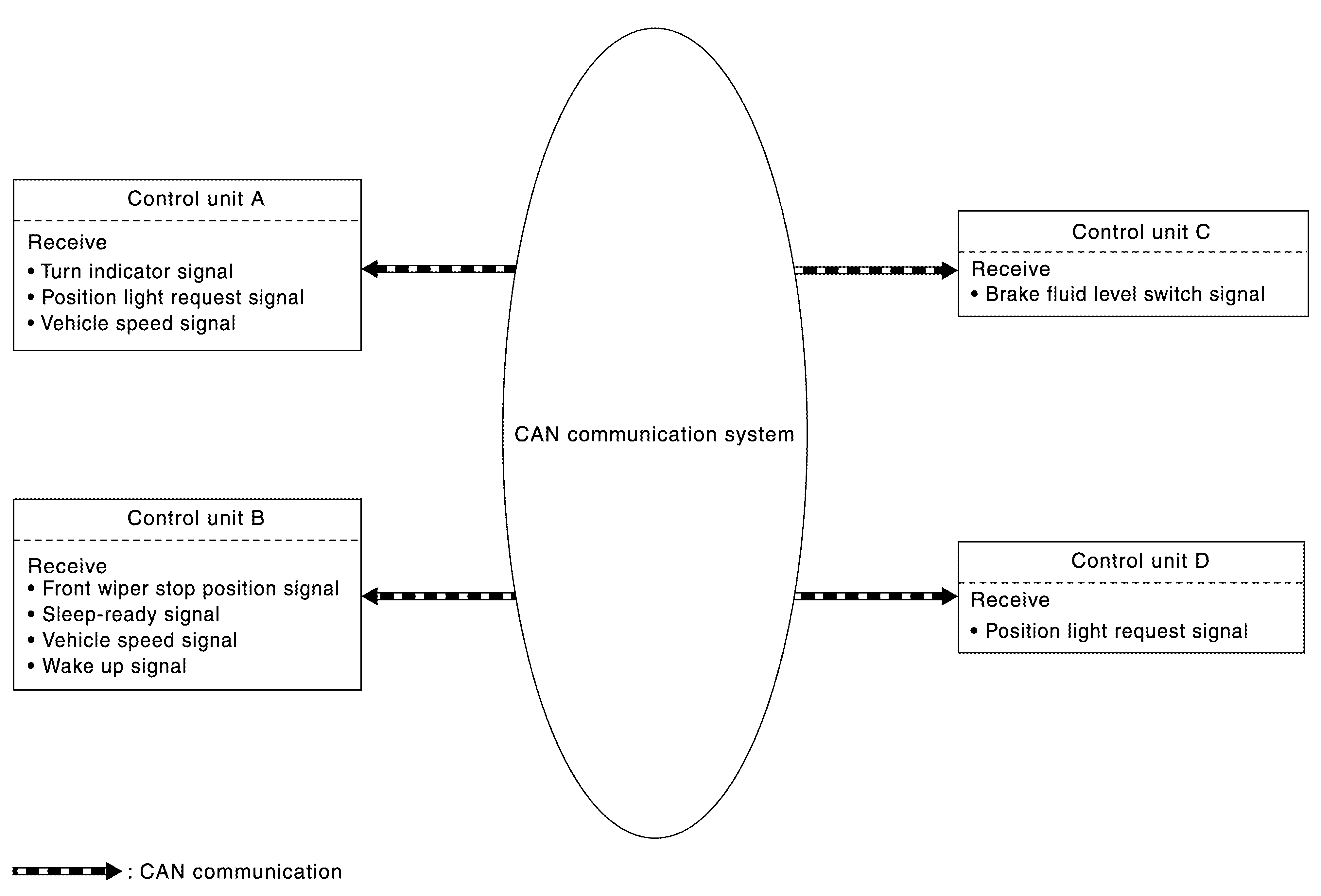

Example: Received signals

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: The above signal names and signal communications are provided for reference purposes. For CAN communications signals of this vehicle, refer to CAN Communication Signal Chart .
