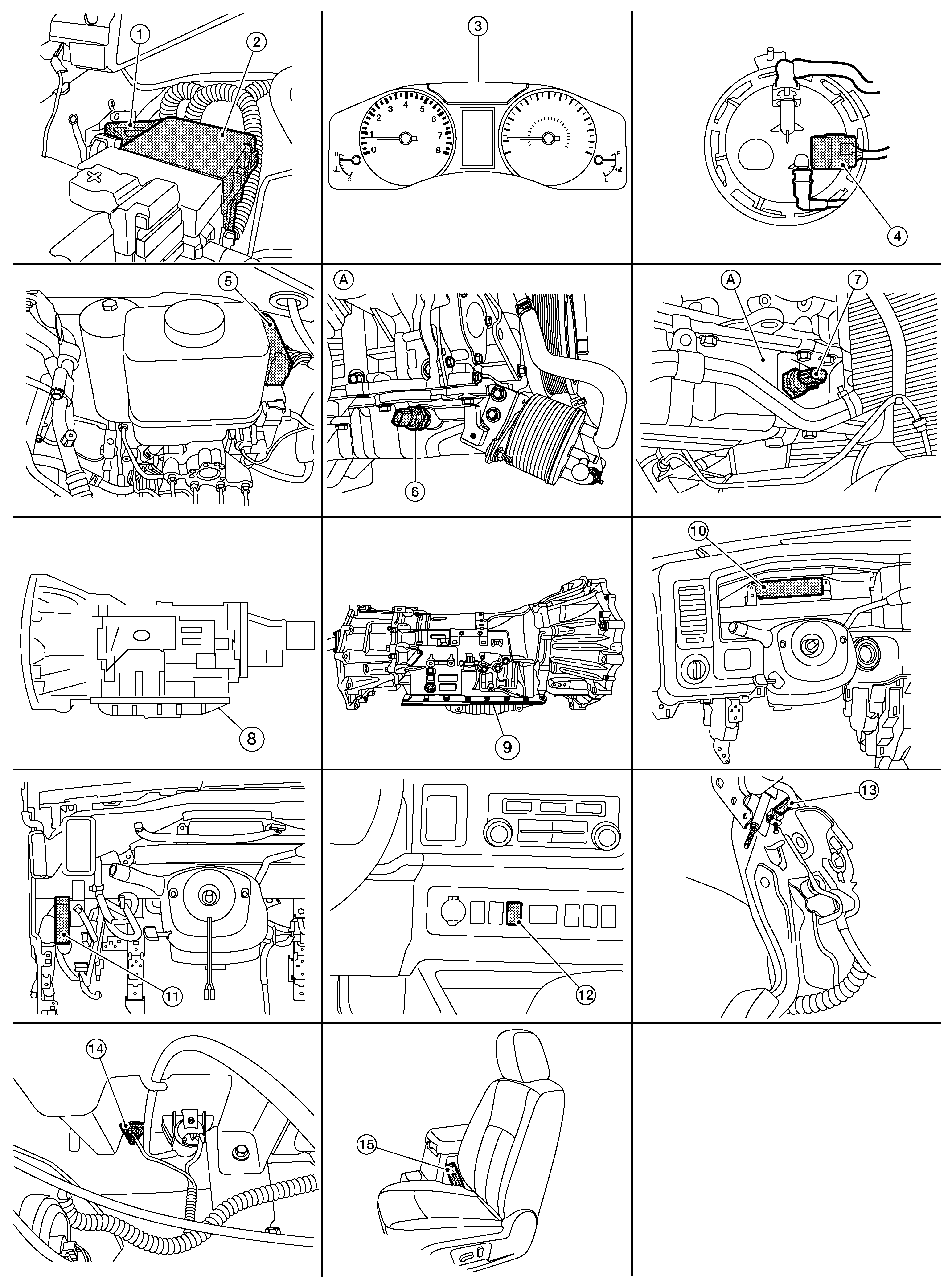

Component Parts Location
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
ECM |
2. |
IPDM E/R |
3. |
Combination meter |
|
4. |
Fuel level sensor unit and fuel pump (view with fuel tank removed) |
5. |
ABS actuator and electric unit (control unit) |
6. |
Engine oil pressure sensor (with VK56VD) A: (view with engine removed) |
|
7. |
Oil pressure switch (with VQ40DE) A: Oil pan |
8. |
A/T assembly (with 5AT) |
9. |
A/T assembly (with 7AT) |
|
10. |
BCM (view with combination meter and steering wheel removed) |
11. |
Low tire pressure warning control unit (view with instrument panel lower LH removed) |
12. |
Tow mode switch (if equipped) |
|
13. |
Parking brake switch |
14. |
Washer fluid level switch (if equipped) |
15. |
Seat belt buckle switch LH (RH similar) |
