Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid A. Refer to Removal and Installation .

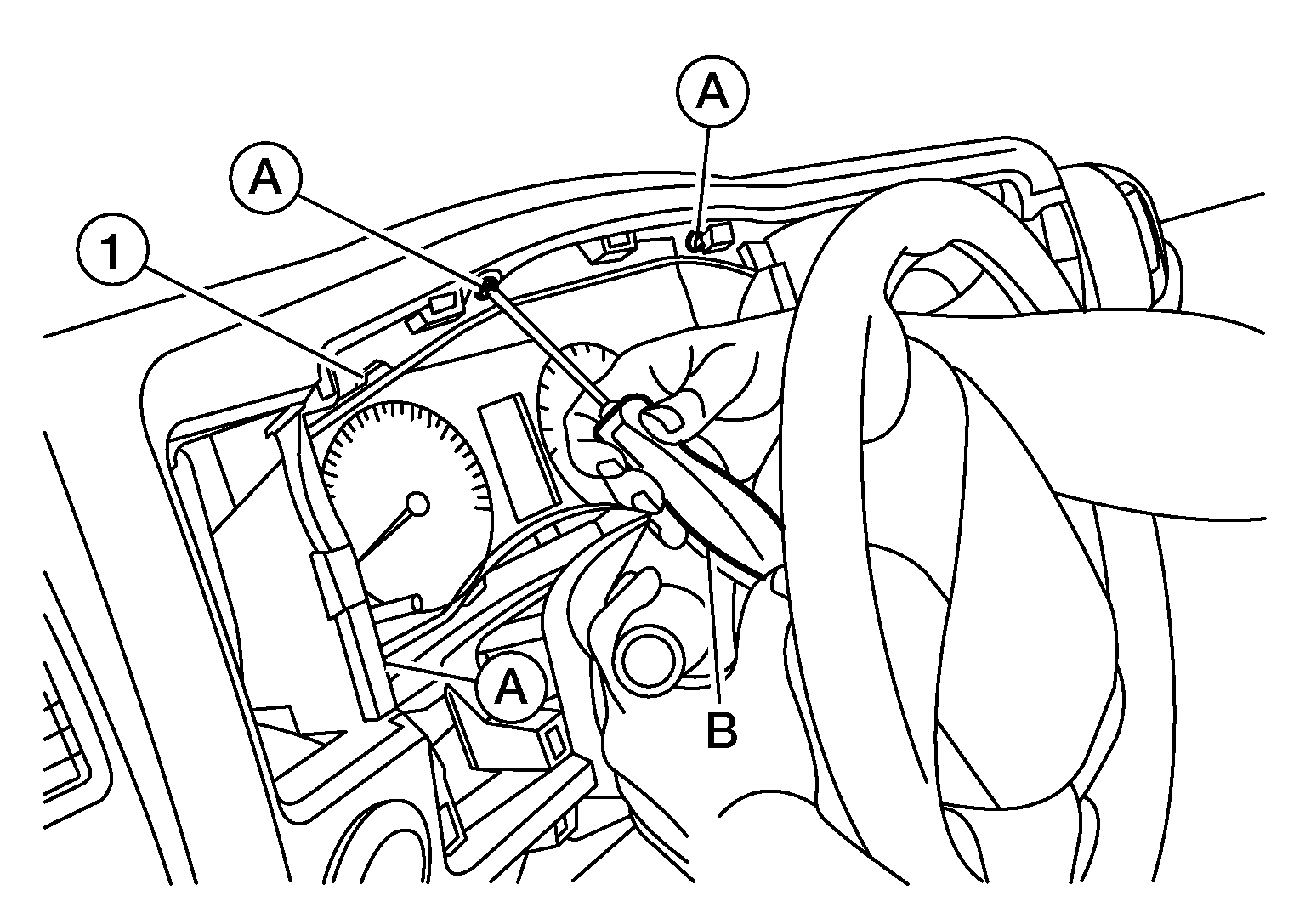

  2. Remove the combination meter screws (A), using a suitable tool (B).
    GNSALNIA1257Z-257Courtesy of NISSAN NORTH AMERICA, INC.
  3. Pull out the combination meter (1).
  4. Disconnect the harness connectors from the combination meter (1) and remove.
