Removal and Installation: Removal
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before removing BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to Description .
- Disconnect the negative battery terminal. Refer to Battery Disconnect .
- Remove the combination meter. Refer to Removal and Installation .

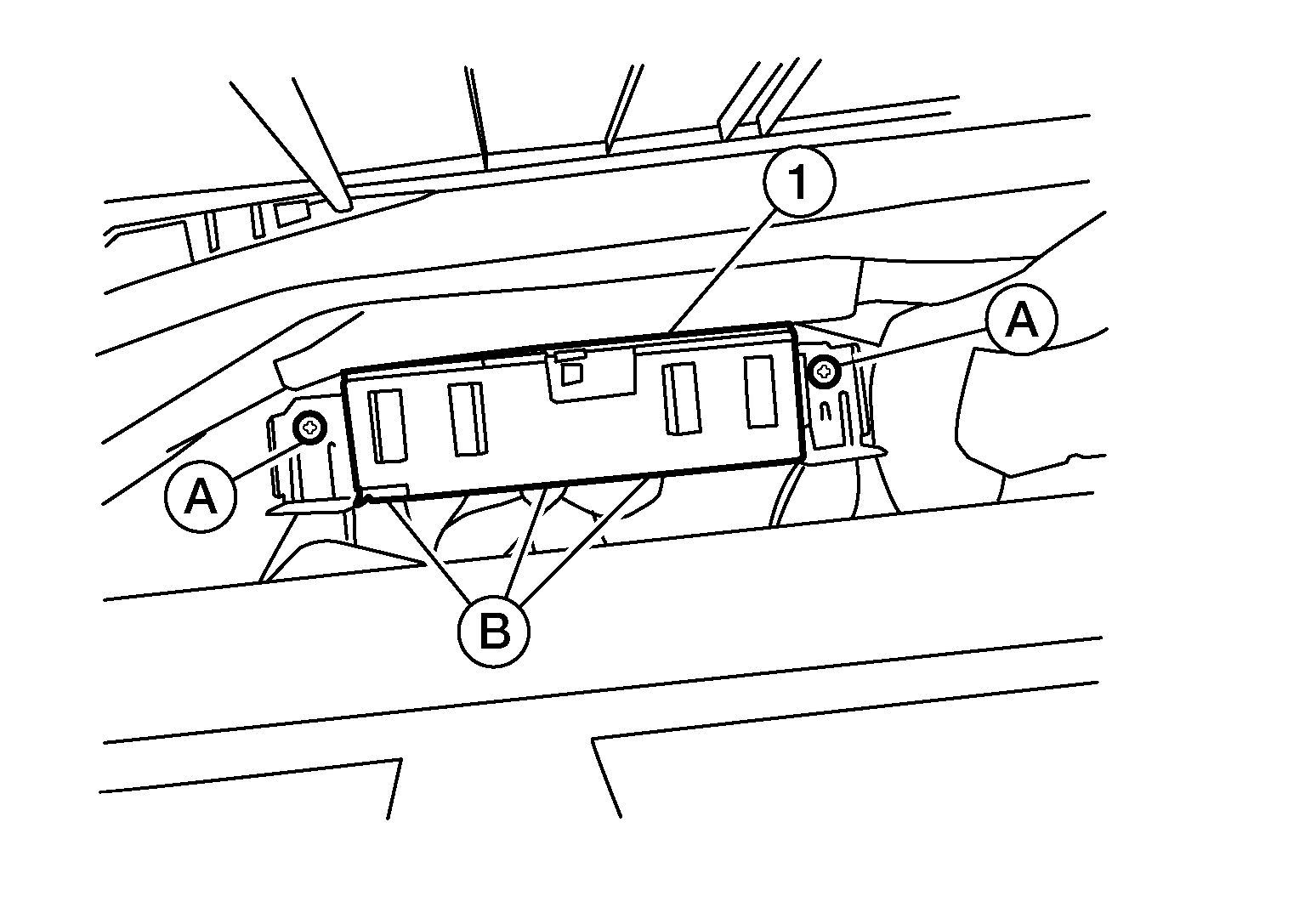

- Remove the BCM screws (A).
- Pull out the BCM (1).
- Disconnect the harness connectors (B) from the BCM (1) and remove.
