Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|

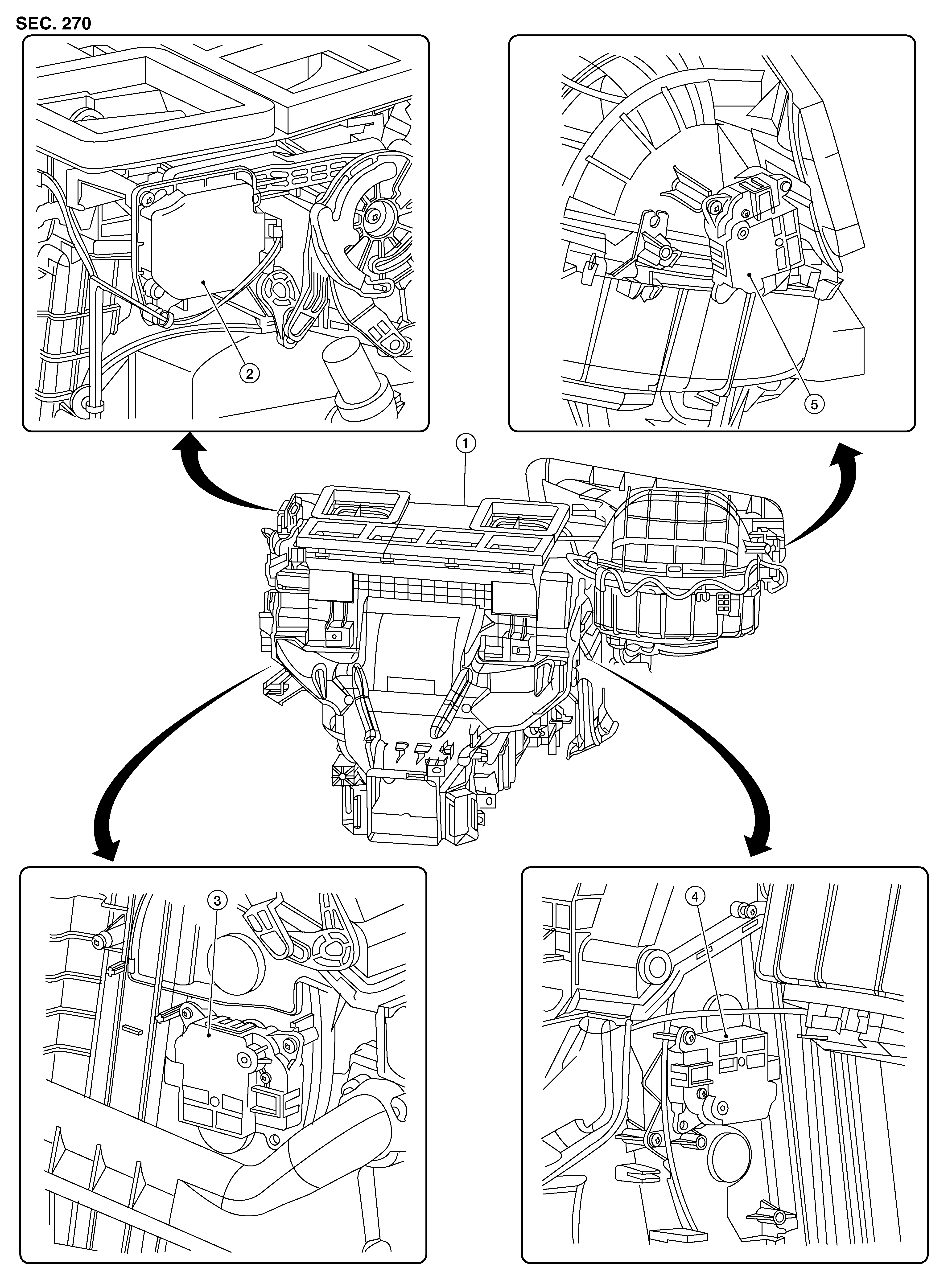

Heating and cooling unit assembly
|
2.
|
Mode door motor
|
3.
|
Air mix door motor (LH)
|
|
4.
|
Air mix door motor (RH)
|
5.
|
Intake door motor
|
