Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front under cover. Refer to Removal and Installation .

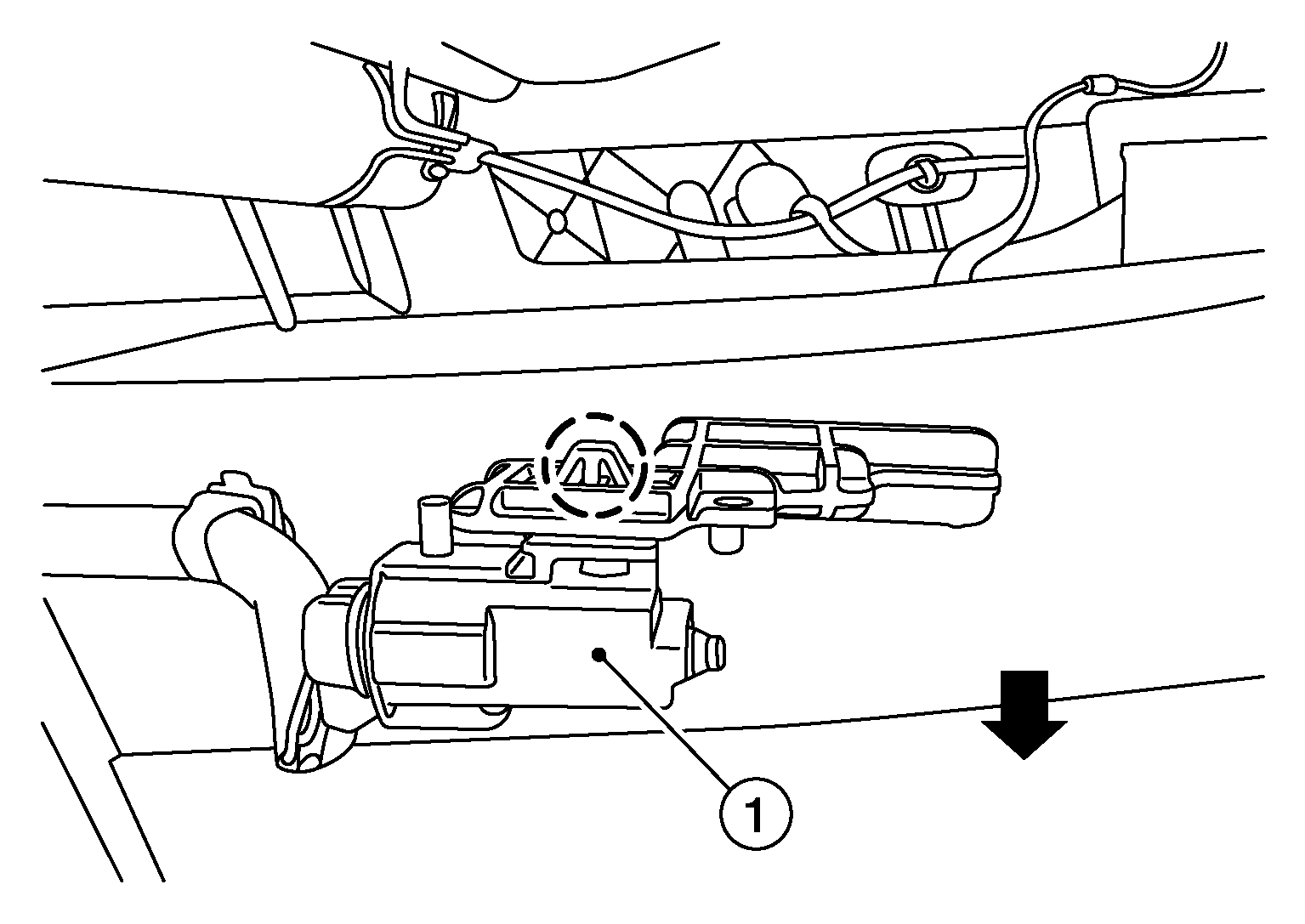

  2. Disconnect harness connector from ambient sensor (1).
    GNSALKIA4072Z-072Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release clip and remove ambient sensor.

    SYMBOL

    : Front

    SYMBOL

    : Clip
