Exploded View

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

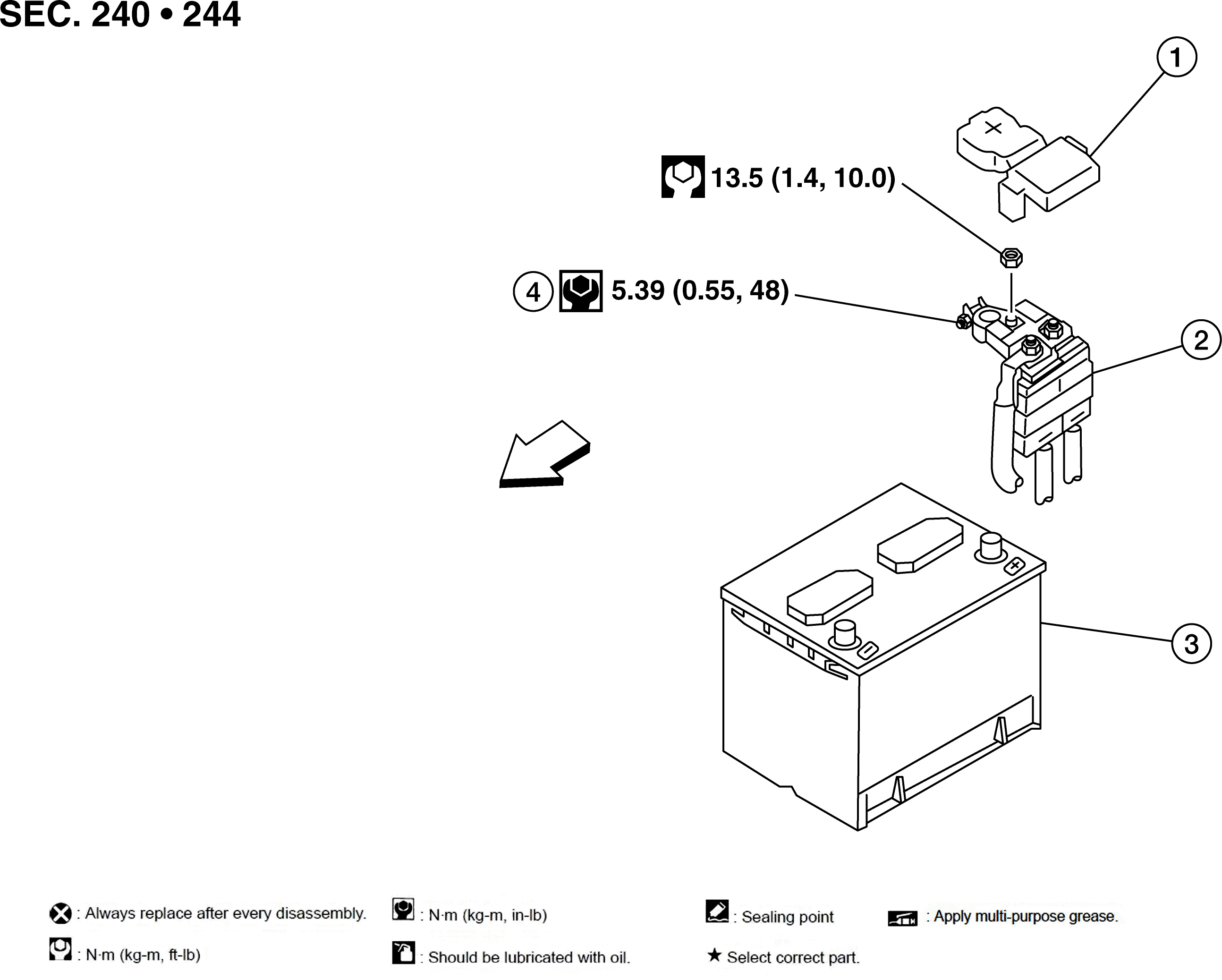

Fig 1: Battery Terminal With Fusible Link Components With Torque Specifications
GNSALMIA1012Z-012SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Battery positive terminal cover

2.

Fusible link box (battery)

3.

Battery

4.

Positive terminal

SYMBOL

Front
