Checking Reservoir Level

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Check the coolant reservoir tank level when the engine is cool.

Courtesy of NISSAN NORTH AMERICA, INC.

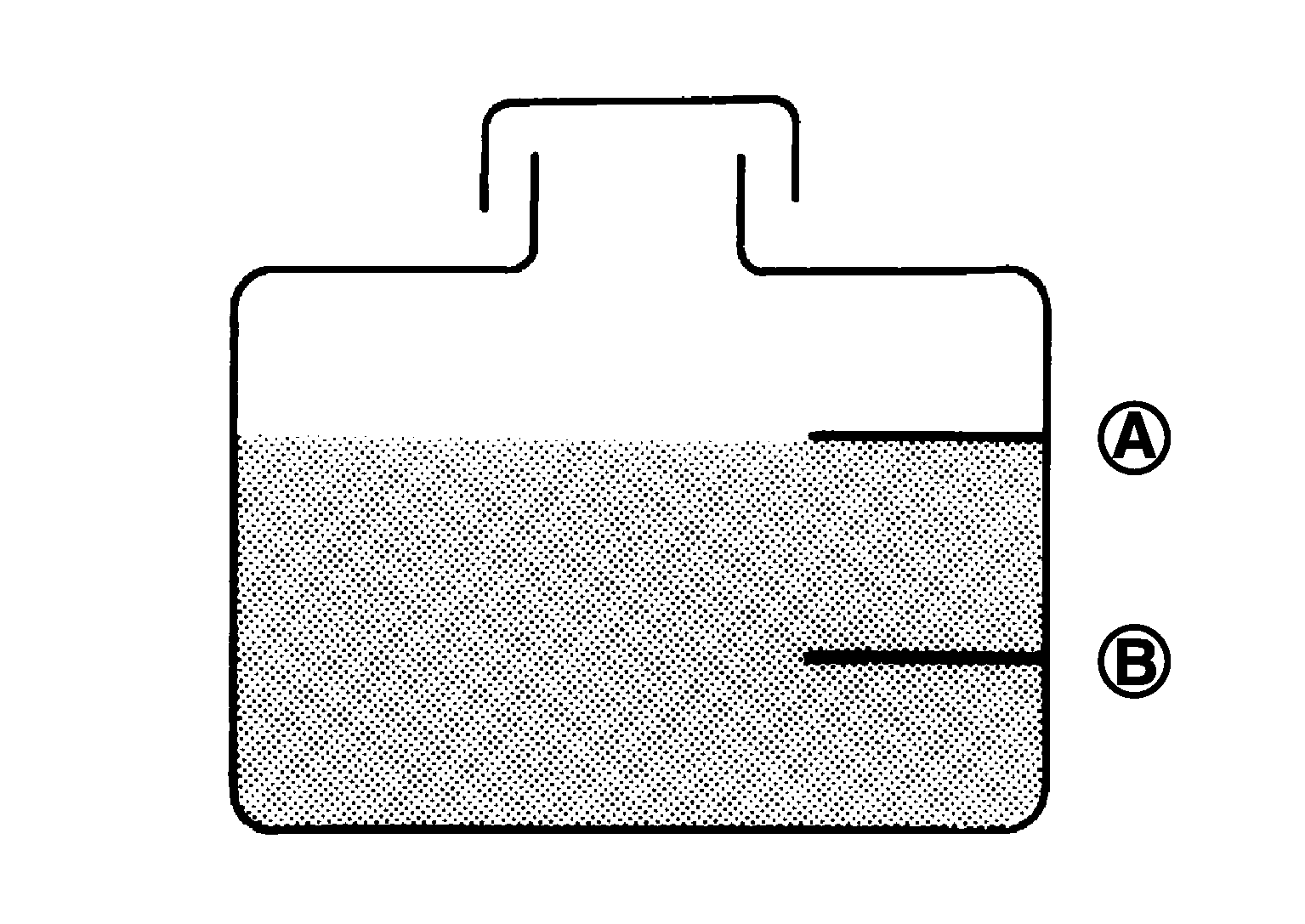

Adjust engine coolant level, if necessary, to ensure that the engine coolant level is within the MIN (B) to MAX (A) range.
CAUTION: Refill Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent in its quality mixed with water (distilled or demineralized). Refer to Fluids and Lubricants .
