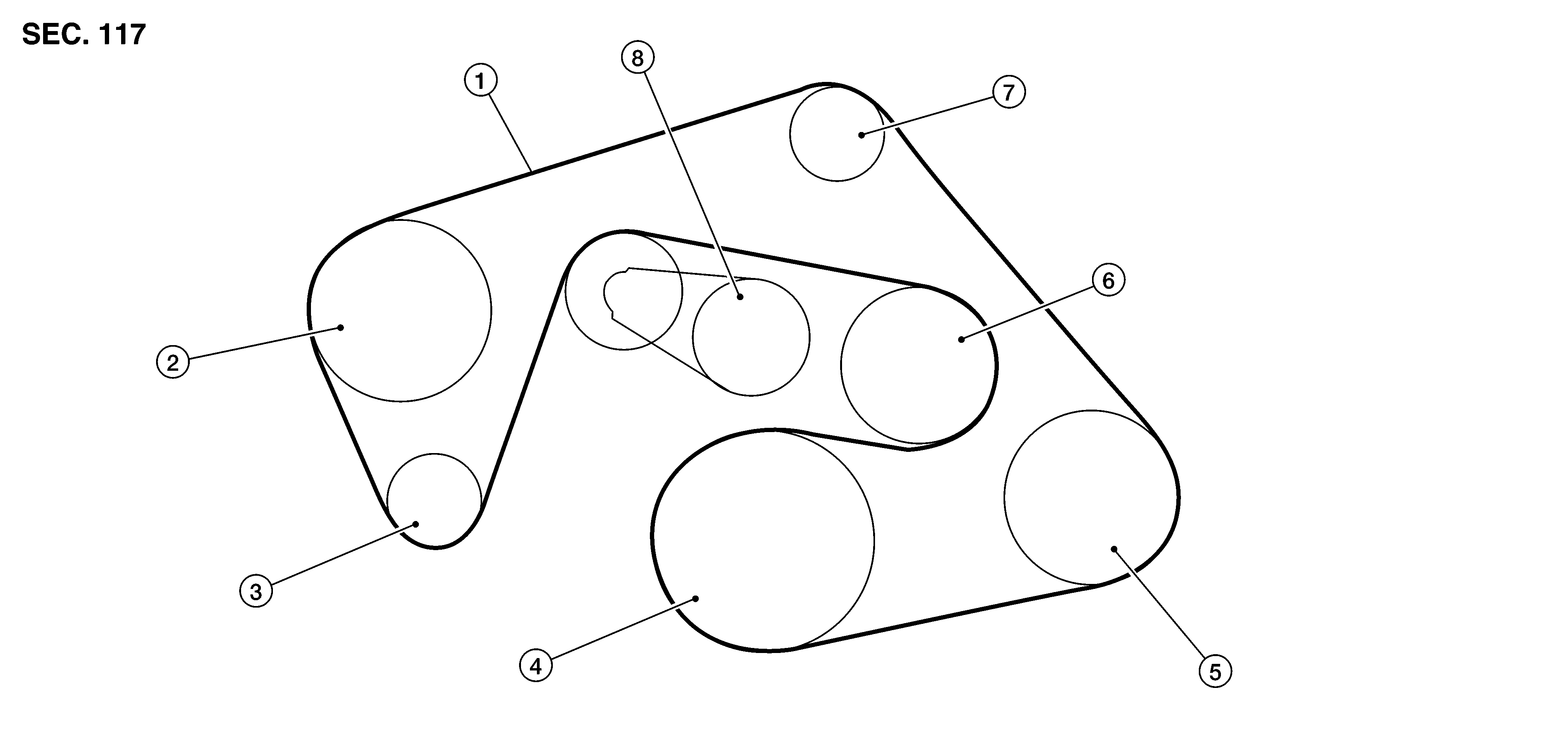

Exploded View

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Drive belt	2.	Power steering oil pump pulley	3.	Generator pulley
4.	Crankshaft pulley	5.	A/C compressor	6.	Cooling fan pulley
7.	Idler pulley	8.	Drive belt tensioner
