Changing Differential Gear Oil: Draining
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- Stop engine.

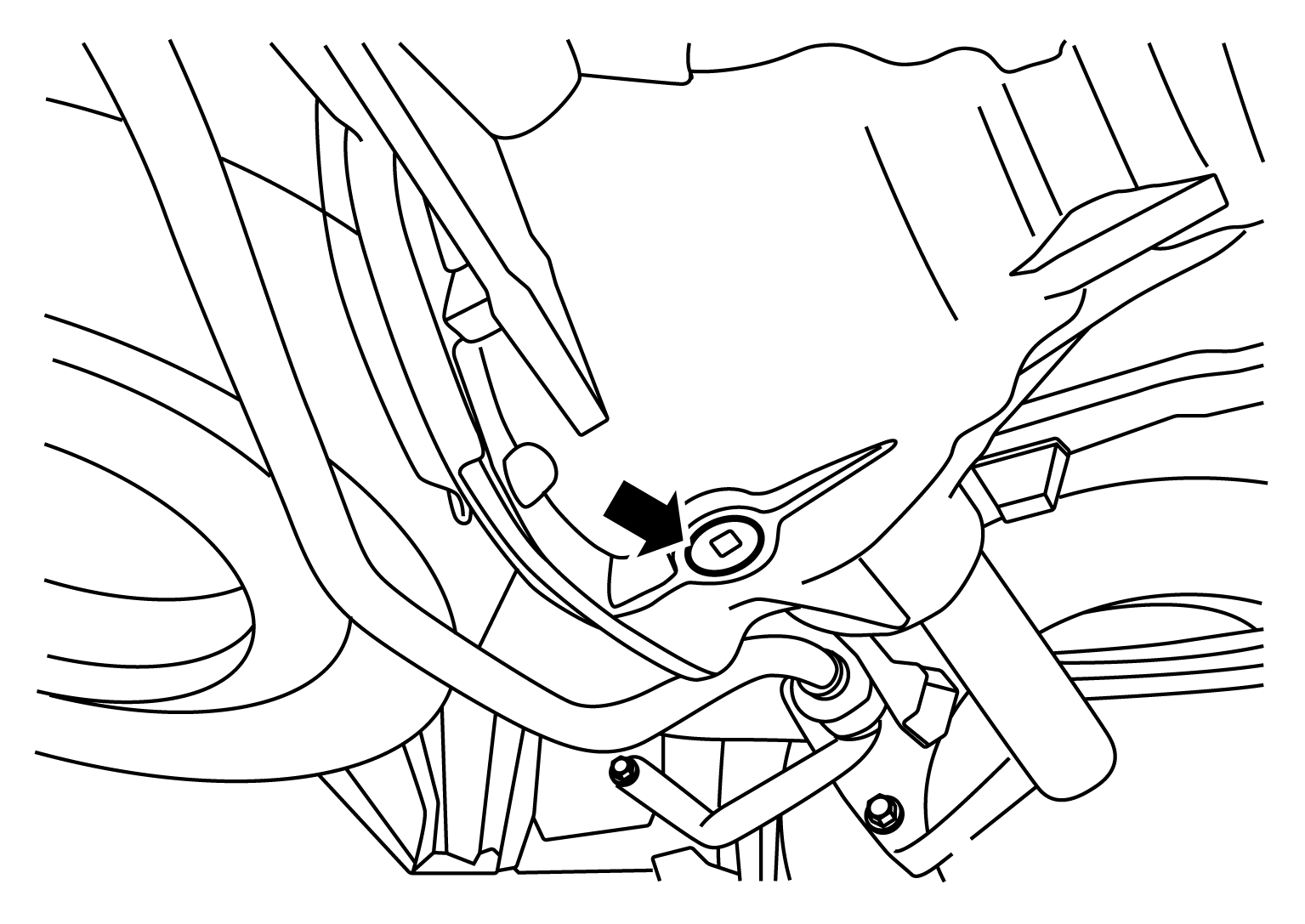

- Remove the drain plug from the rear final drive assembly to drain the differential gear oil.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Install the drain plug with sealant applied on the threads to the rear final drive assembly. Tighten to the specified torque.
|
Drain plug torque
|
: 32 N.m (3.3 kg-m, 24 lb-ft)
|
