Checking the A/T Fluid (ATF)

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If using the vehicle for towing, the A/T fluid must be replaced as specified. Refer to Introduction of Periodic Maintenance .
  1. Before driving, the A/T fluid level can be checked at A/T fluid temperatures of 30 deg. to 50 deg. C (86 deg. to 122 deg. F) using the "COLD" range on the A/T fluid level gauge as follows:

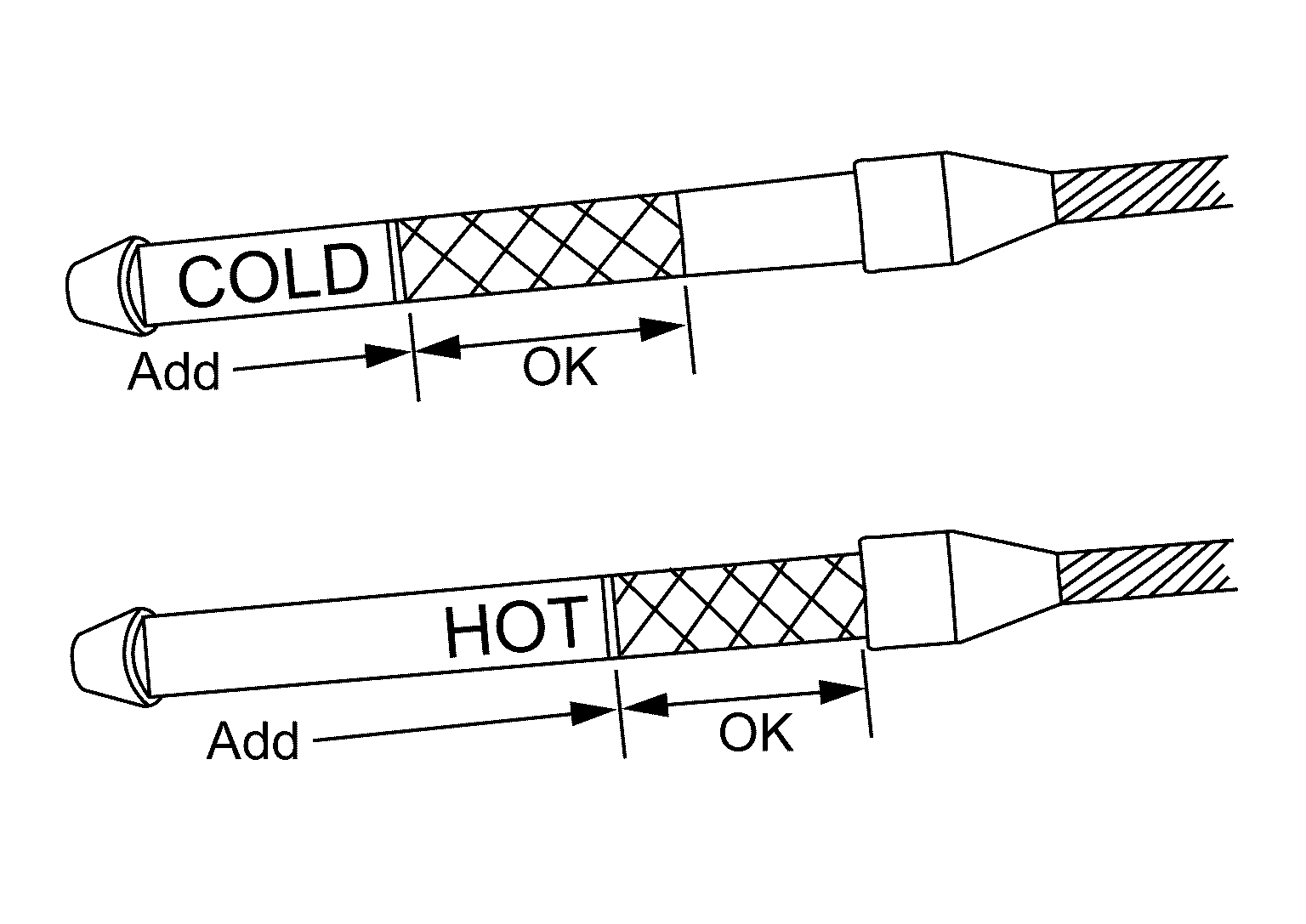

    GNSJSDIB0869GB-869Courtesy of NISSAN NORTH AMERICA, INC.
    1. Park the vehicle on a level surface and set the parking brake.
    2. Start the engine and move the shift selector through each gear position. Then move the shift selector into the "P" position.
    3. Check the A/T fluid level with the engine idling.
    4. Remove the A/T fluid level gauge and wipe it clean with a lint-free paper.
      CAUTION: When wiping the A/T fluid from the A/T fluid level gauge, always use a lint-free paper, not a cloth.
    5. Re-insert the A/T fluid level gauge into the A/T fluid charging pipe until the cap contacts the top of the A/T fluid charging pipe as shown, below.

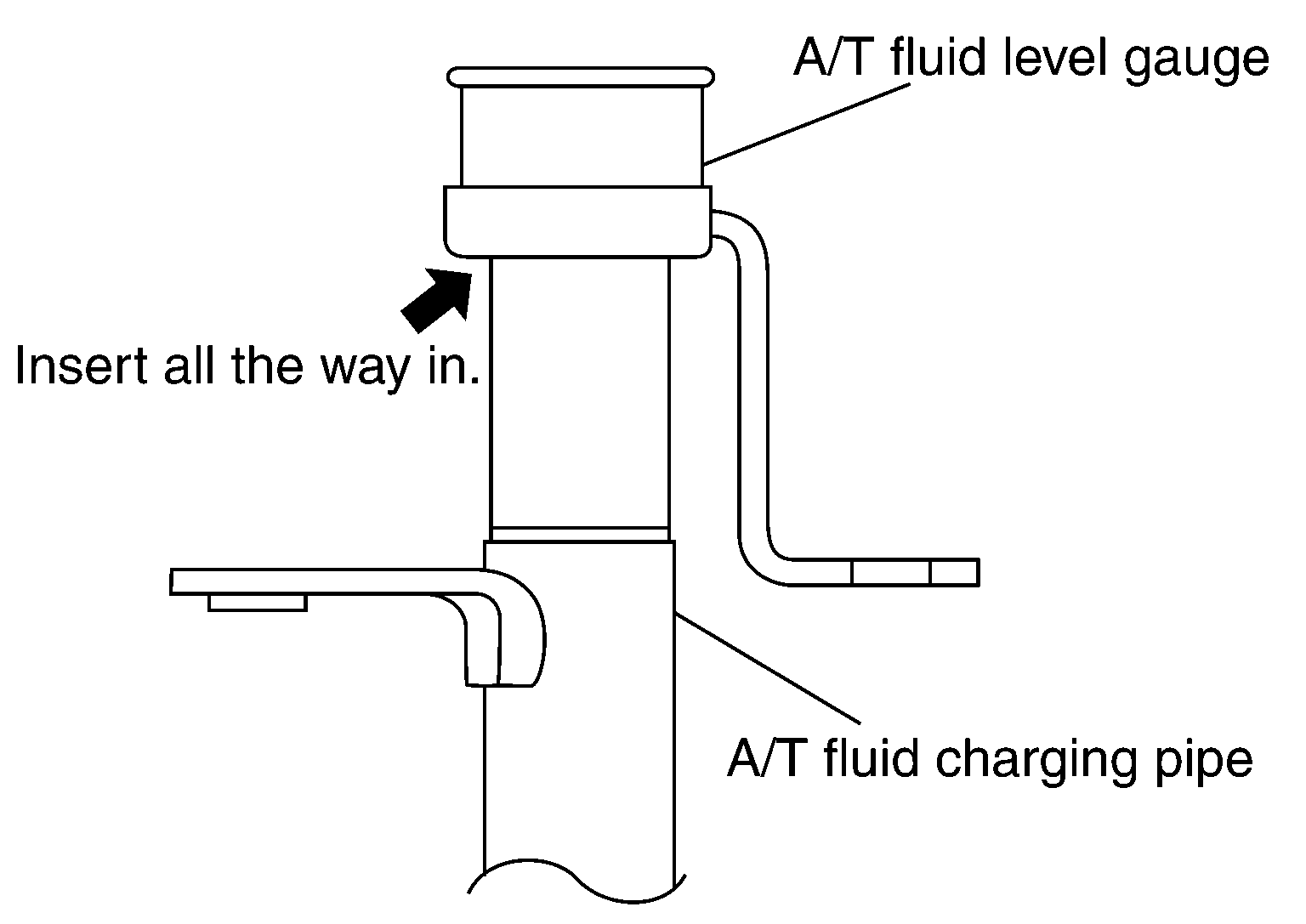

      G04075391Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: To check A/T fluid level, insert the A/T fluid level gauge until the cap contacts the top of the A/T fluid charging pipe, with the gauge reversed from the normal inserted position.
    6. Remove the A/T fluid level gauge and note the A/T fluid level. If the A/T fluid level is at low side of range, add A/T fluid to the transmission through the A/T fluid charging pipe.
      CAUTION: Do not overfill the transmission with A/T fluid.
    7. Install the A/T fluid level gauge and the A/T fluid level gauge bolt.

      A/T fluid level gauge bolt

      : Refer to Removal and Installation .
  2. Warm up the engine and transmission.
  3. Check for any A/T fluid leaks.
  4. Drive the vehicle to increase the A/T fluid temperature to 80 deg. C (176 deg. F).
  5. Allow the A/T fluid temperature to fall to approximately 65 deg. C (149 deg. F). Use the CONSULT to monitor the A/T fluid temperature as follows:

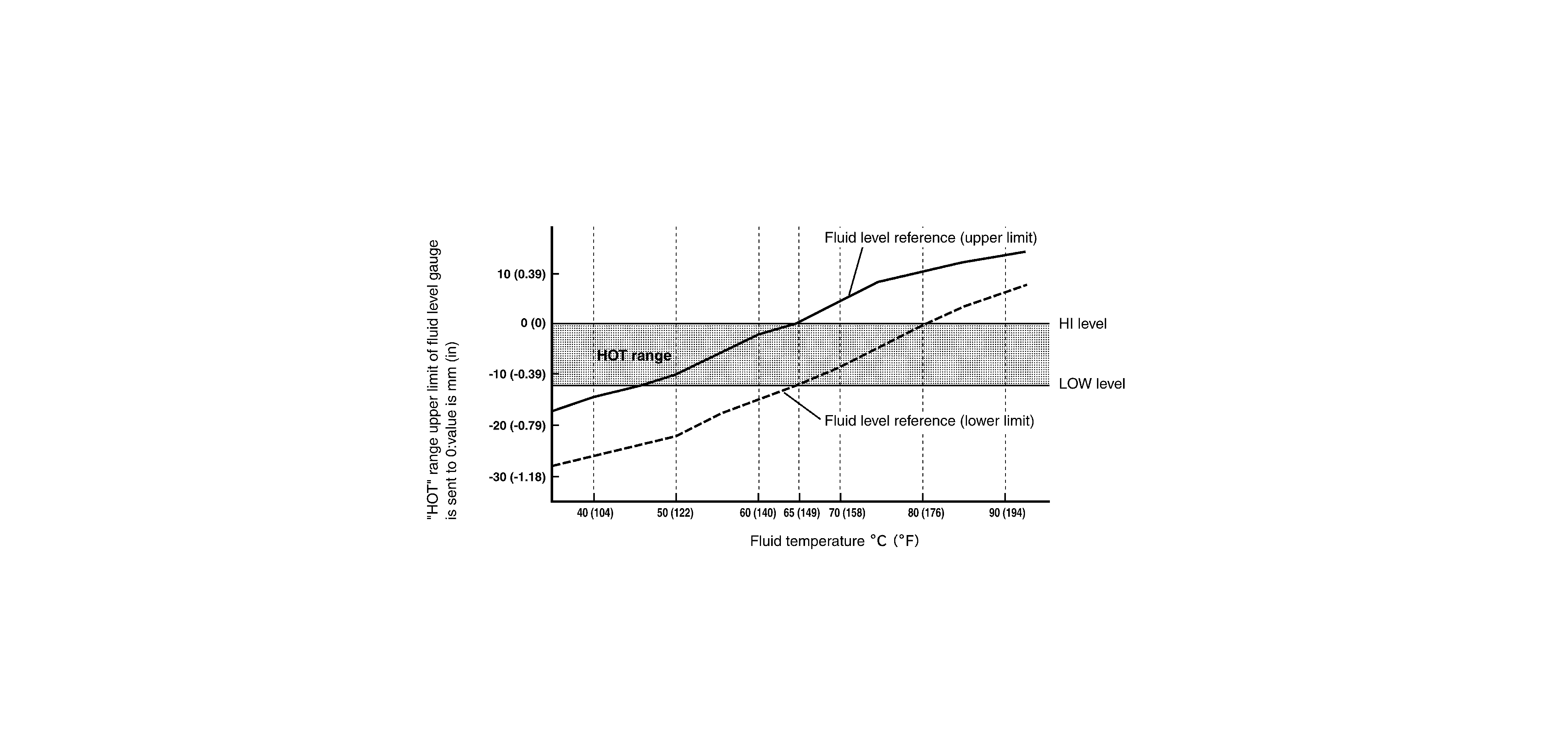

    G04075390Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: The A/T fluid level will be significantly affected by the A/T fluid temperature as shown, above. Therefore monitor the A/T fluid temperature data using the CONSULT.
    1. Connect CONSULT to data link connector.
    2. Select "ATF TEMP 1" in "Data Monitor" mode for "TRANSMISSION" with CONSULT.
    3. Read out the value of "ATF TEMP 1".
  6. Re-check the A/T fluid level at A/T fluid temperatures of approximately 65 deg. C (149 deg. F) using the "HOT" range on the A/T fluid level gauge as shown, below. The HOT range is between 50 deg. - 80 deg. C (122 deg. - 176 deg. F).
    GNSJSDIB0869GB-869Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • When wiping the A/T fluid from the A/T fluid level gauge, always use lint-free paper, not a cloth.
    • To check the A/T fluid level, insert the A/T fluid level gauge until the cap contacts the top of the A/T fluid charging pipe, with the gauge reversed from the normal inserted position as shown, below.
      G04075391Courtesy of NISSAN NORTH AMERICA, INC.
  7. Check the A/T fluid condition.
    • If the A/T fluid is very dark or has some burned smell, there may be an internal problem with the transmission. Refer to A/T Fluid Cooler Cleaning . Flush the transmission cooling system after repairing the transmission.
    • If the A/T fluid contains frictional material (clutches, bands, etc.), replace the radiator and flush the transmission cooler lines using cleaning solvent and compressed air after repairing the transmission.
  8. Install the A/T fluid level gauge in the A/T fluid charging pipe.
  9. Tighten the A/T fluid level gauge bolt to specification.

    A/T fluid level gauge bolt

    : Refer to Removal and Installation .
