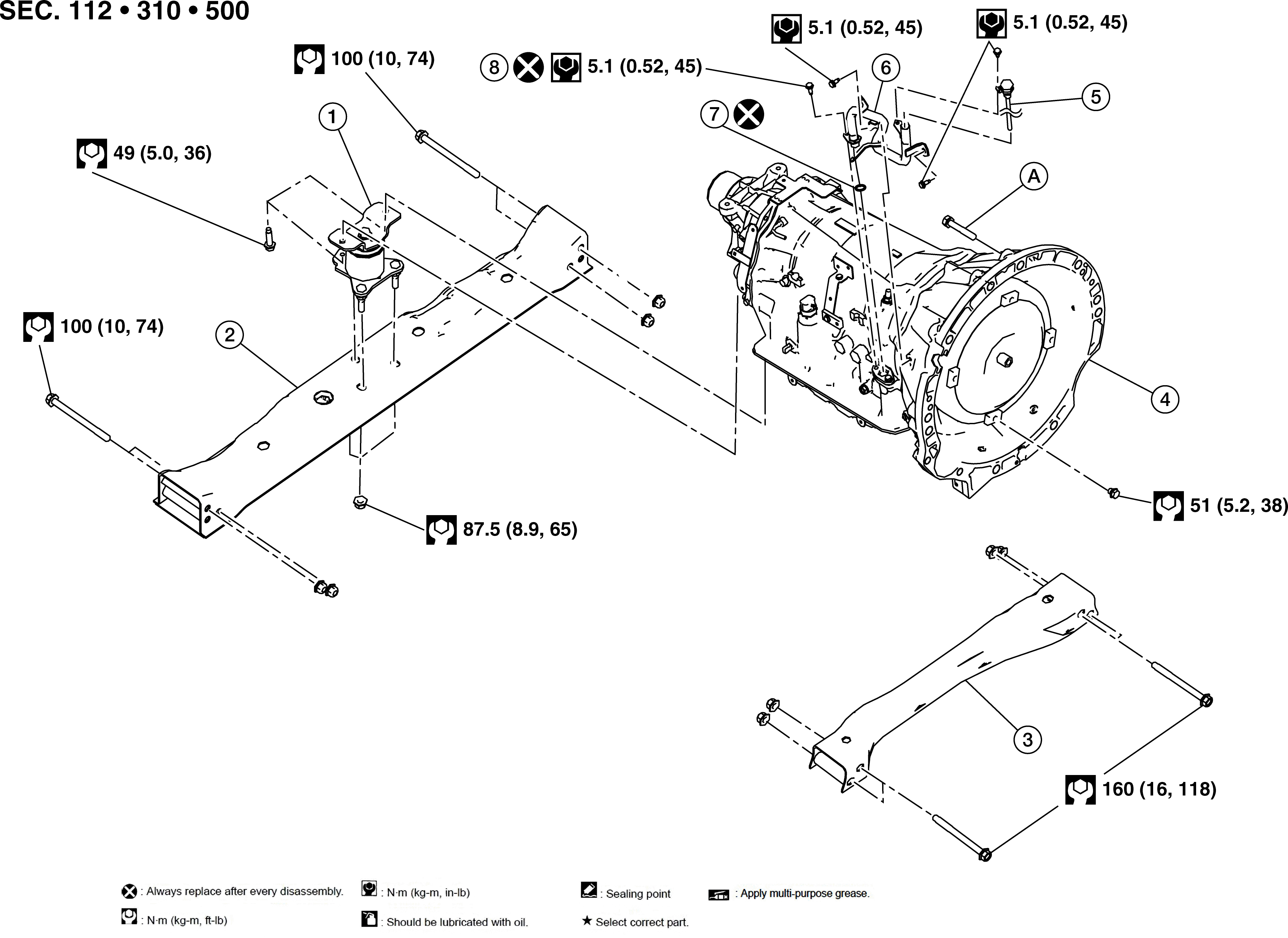

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Rear engine mounting insulator |
2. |
A/T crossmember |
3. |
Front crossmember |
|
4. |
A/T assembly |
5. |
A/T fluid level gauge |
6. |
A/T fluid charging pipe |
|
7. |
O-ring |
8. |
Self-sealing bolt |
||
|
A. |
Tightening must be done following the installation procedure. Refer to Removal and Installation . |
||||
|
Refer to Components for symbols in the figure. |
|||||
