Oil Pump: Assembly

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

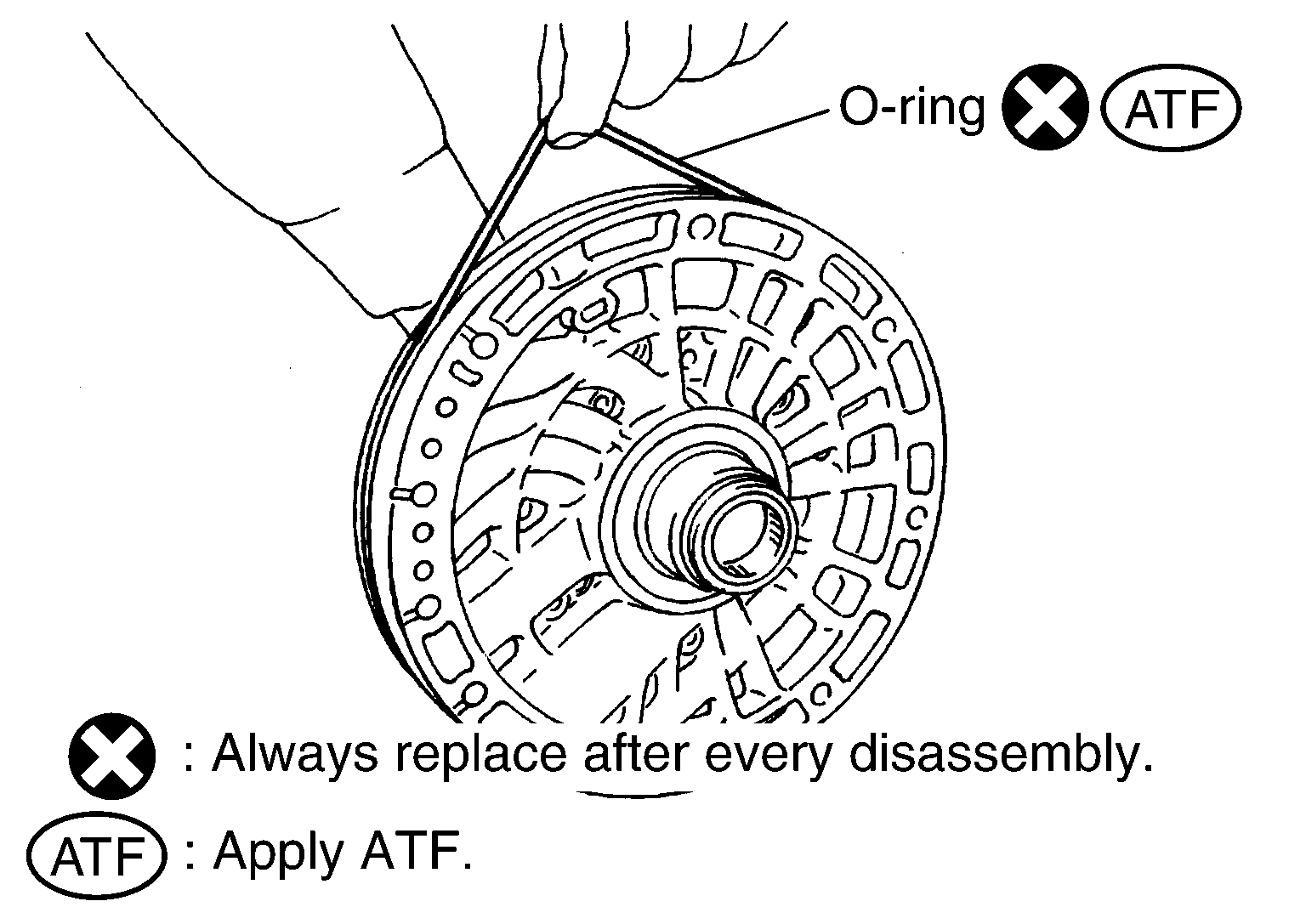

  1. Install O-ring to oil pump cover.
    G04075850Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse O-ring.
  2. Install O-ring to oil pump housing.
    G04075849Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse O-ring.
  3. Install oil pump housing oil seal to the oil pump housing until it is flush, using the drift.
    G04075853Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Never reuse oil seal.
    • Apply ATF to oil seal.
  4. Install oil pump housing to oil pump cover.

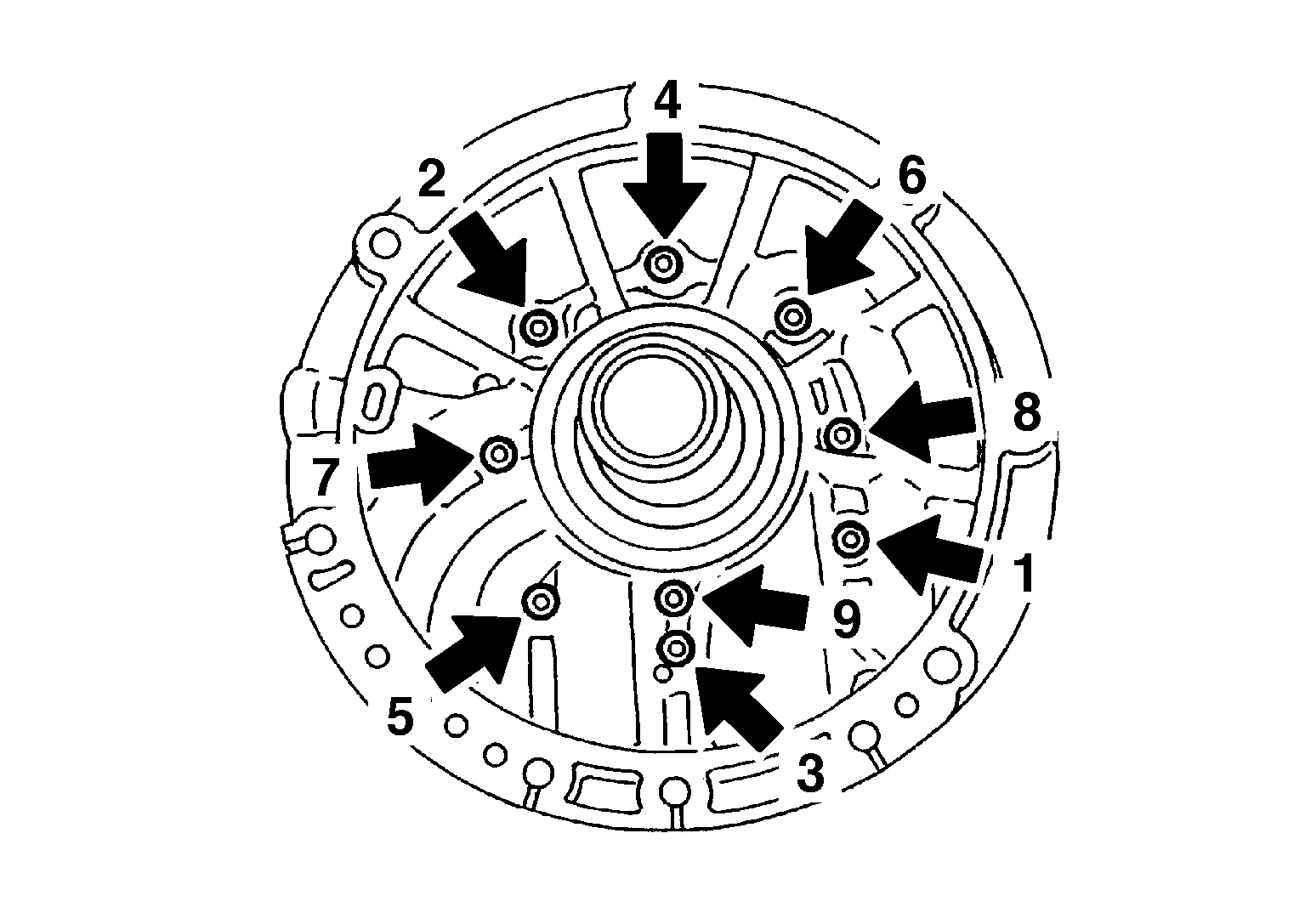

    Fig 1: Oil Pump Housing To Oil Pump Cover Bolt Tightening Sequence
    GNSJSDIA0133Z-133Courtesy of NISSAN NORTH AMERICA, INC.
  5. Tighten bolts (SYMBOL ) to the specified torque in numerical order shown in the figure after temporarily tightening them.
